UNIVIEW NVR302-16S 16CH 4K NVR

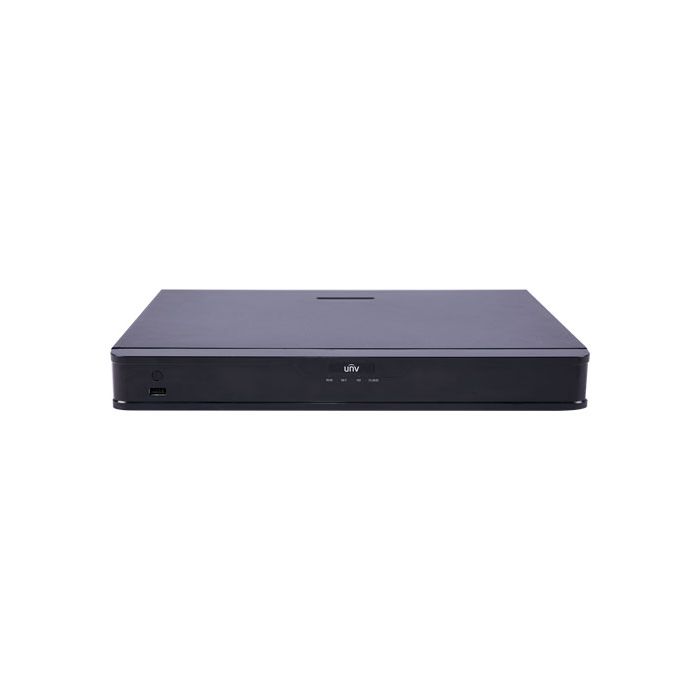

Uniview NVR302-16S 16CH 4K Network Video Recorder
Model: NVR302-16S
Ultra 265/H.265/H.264 video compression
Support up to 4K Camera
16- Channel NVR Input
All Channel @ 1080P Recording
HDMI & VGA Out Put Up to 1080P
Support 2 HDD (Up to 16 TB)
Support Mobile Client Access
Installation with expert Technician
Best price in Bangladesh
Call for Price Match policy
Uniview NVR302-16S 16 Channel 4K NVR
The Uniview NVR302-16S 16 Channel 4K Network Video Recorder (NVR) is a high-performance surveillance recording system designed for professional security applications. With support for up to 16 IP cameras and 4K Ultra HD resolution, it delivers crystal-clear video quality, reliable data storage and smart management features for maximum security coverage.
Perfect for commercial buildings, retail stores, factories, and large-scale CCTV installations, this NVR ensures efficient video monitoring, remote access and long-term reliability.
Its advanced H.265 compression technology saves bandwidth and storage without compromising image quality. Combined with plug-and-play connectivity, remote viewing via mobile apps and secure data protection, the Uniview NVR302-16S is the ultimate choice for modern surveillance systems in Bangladesh.
Key Features Of UNIVIEW NVR302-16S
■ 16-channel input
■ ONVIF conformance
■ Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
■ 2 SATA HDD up to 16 TB
■ Support various VCA detection alarm and VCA search
■ Support for P2P, UPnP, NTP, DHCP, PPPoE
■ Support for mobile client access
Technical Specifications:
|
IP Video Input |
16-ch |
|
Two-way Audio Input |
1-ch, RCA |
|
Incoming bandwidth |
112Mbps |
|
Outgoing bandwidth |
96Mbps |
|
Remote Users |
128 |
|
Protocols |
P2P, UPnP, NTP, DHCP, PPPoE |
|
HDMI/VGA Output |
HDMI: |
|
Audio Output |
1-ch, RCA |
|
Recording Resolution |
8MP/6MP/5MP/4MP/3MP/1080p/960p |
|
Synchronous Playback |
16-ch |
|
Corridor Mode Screen |
3/4/5/7/9/10/12/16 |
|
Decoding format |
Ultra265/H.265/H.264 |
|
Live view/ Playback |
8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Capability |
1 x 4K@30, 1 x 6MP@30,1 x 5MP@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30,16 x D1 |
|
SATA |
2 SATA interface |
|
Capacity |
up to 10TB for each disk |
|
Network Interface |
1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
|
USB Interface |
Rear panel：1 x USB2.0, Front panel：1 x USB2.0 |
|
Power Supply |
12V DC |
|
Working Environment |
-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
|
Dimensions(W×D×H) |
380mm × 315mm ×49mm (15.0" × 12.4" ×1.9" ) |
|
Weight ( without HDD ) |
≤ 1.6 Kg (3.53 lb ) |
|
IP Video Input |
16 CH |
NVR Connection Diagram
A network video recorder (NVR) is a specialized computer system that includes a software program that records video in a digital format to a disk drive, USB flash drive, SD memory card or other mass storage device. ... An NVR is typically deployed in an IP video surveillance system.
| Call for Price | No |
|---|---|
| Alarm in/out | N/A |
| Brand | UNIVIEW |
| esata | N/A |
| HDD | 2 SATA |
| Support_resolution | 4k |
| poe_ports | N/A |
| power_supply_nvr | DC12V/5A |
| raid | N/A |
| video_chanel | 16 Port |
