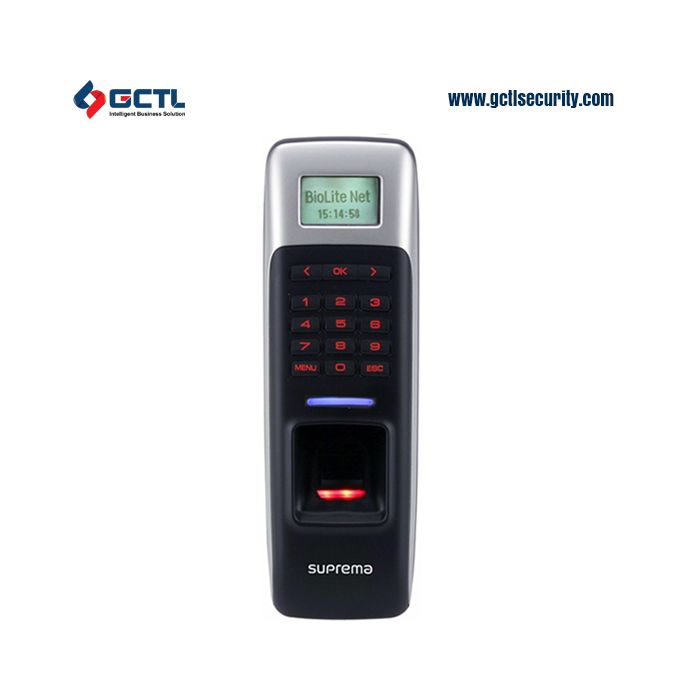

Suprema BioLite NET Fingerprint Access Control Time Attendance Machine
Rugged structure for outdoor installation and extra durability
IP65 rated waterproof and weatherproof structure
Fast and accurate fingerprint identification
Award winning fingerprint algorithm (No.1 in FVC2004 and FVC2006)
1 : 2,000 fingerprint identification in 1 second
Wiegand input/output configurable up to 64 bits Internal relay for direct lock interface (standalone control mode)
Built-in keypad and RF card reader for multi-modal user authentication (Fingerprint, PIN, card)
Easy-to-use PC software for access control and time attendance
Brand : Suprema, Model : BioLite Net
Features:
World-Renowned Suprema
Fingerprint Algorithm
BioLite Net is powered by Suprema’s renowned fingerprint algorithm that has been recognized multiple times by both FVC and NIST MINEX as the best algorithm in the world. The device delivers fast matching speed and rapid responses while providing an exceptional low error rate.
The powerful DSP of the device is capable of handling large amounts of data required for fast and accurate verification while ensuring uninterrupted device operations.
Specifications:
Best Product, Detektor International Award
BioLite Net is one of the world’s smallest IP fingerprint terminals with Access Control and Time & Attendance features. Due to its long list of features and functions, BioLite Net was awarded the Best Access Control Product Award in the 2009 Detektor Inter- national Awards and was also IFSEC 2009 Security Industry Awards Finalist.
IP65, Dust and Waterproof Design
BioLite Net packs Suprema’s biometric technology into a simple and slim design exterior. The IP65 rating ensures that the device is exceptionality durable and reliable in indoor or outdoor settings. Sophisticated biometric technology, advanced features, and an user friendly interface make BioLite Net an exceptional value for your budget.
Versatile Interface
BioLite Net hosts a number of different interfaces for higher flexibility and multiple installation options. It comes with not only a TCP/IP interface, but also more traditional interfaces (RS-485, Wiegand) and 2 internal inputs and 1 internal relay output to control peripheral devices. The I/O ports can also be expanded by using the Secure I/O accessory
|
Main |
Biometric |
Fingerprint |
|
IP Rating |
IP65 |
|
|
RF Option |
125KHz EM |
|
|
Multi-Controller |
Yes |
|
|
Capacity |
Max. User (1:1) |
5,000 |
|
Max. User (1:N) |
5,000 |
|
|
Max. Template (1:1) |
10,000 |
|
|
Max. Template (1:N) |
10,000 |
|
|
Max. Text Log |
50,000 |
|
|
Max. Image Log |
- |
|
|
Interface |
WiFi |
- |
|
TCP/IP |
Yes |
|
|
RS-485 |
1ch Host or 1ch Slave |
|
|
RS-232 |
- |
|
|
Wiegand |
1ch In or 1ch Out |
|
|
Input |
2 Inputs |
|
|
Relay |
1 Relay |
|
|
USB |
- |
|
|
SD Card Slot |
- |
|
|
Hardware |
CPU |
533MHz DSP |
|
Memory |
16MB RAM + 8MB Flash |
|
|
LCD |
128x64 Graphic LCD |
|
|
LED Indicator |
Multi-Color |
|
|
Sound |
Multi-tone Buzzer |
|
|
Operating Temp. |
-20° to 50°C |
|
|
Tamper |
Yes |
|
|
Power |
12VDC |
|
|
PoE |
- |
|
|
Dimensions |
60 x 185 x 40 (WxHxD mm) |
|
|
Certificates |
CE, FCC, KC, RoHS |
|
|
Compatibility |
BioStar 1.x |
Yes |
|
BioStar 2 |
Yes |
