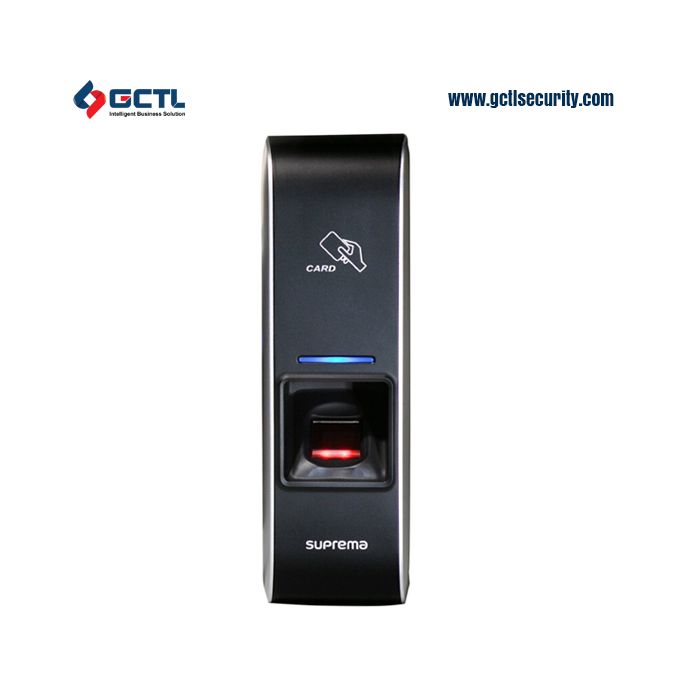

Suprema BEPL-OC BioEntry Plus IP based Fingerprint Access Control
- Slim design for installation on a door frame.
- Fingerprint capacity: 10,000 templates (5,000 users)
- Log Capacity: 50,000 events
- Award winning fingerprint algorithm (No.1 in FVC2004 & FVC2006)
- Anti-pass back door zones supporting 32 readers.
- 1:2000 fingerprint identification in 1 second
- 128 access groups and 128 time schedules.
- Ethernet interface for TCP/IP communication
Suprema BEPL-OC BioEntry Plus IP based Fingerprint Access Control
Product Introduction :
BioEntry Plus is an IP based fingerprint access control device featuring easy installation and user friendly operations. Integrated with both fingerprint and proximity card, BioEntry Plus covers a full range of access control applications from a simple standalone door control to complex networked access control system.
- BioEntry Plus is an IP based fingerprint BioEntry Plus access control device featuring easy installation and user friendly operations.
- Integrated with both fingerprint and proximity card, BioEntry Plus covers a full range of access control applications from a simple standalone door control to complex networked access control systems.
- Fast and accurate fingerprint identification and Easy installation and connectivity.
- Easy operation and management-Built-in RF card reader for different user authentication modes (fingerprint and/or card).
- Slim design for installation on a door frame.

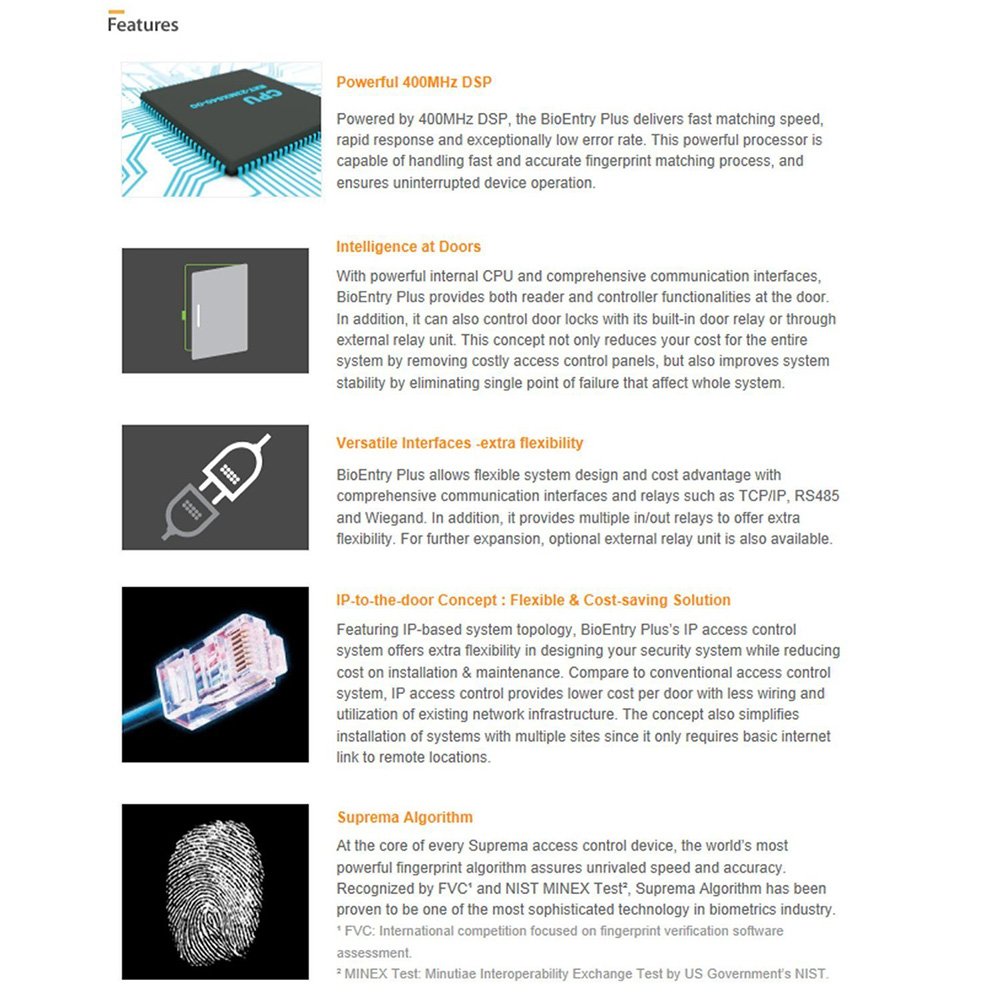

Features:
Fast and accurate fingerprint identification
*Award winning fingerprint algorithm (No.1 in FVC2004 & FVC2006)
*1:2000 fingerprint identification in 1 second
Easy installation and connectivity
*Ethernet interface for TCP/IP communication
*Wiegand output configurable up to 64 bits
*Internal relay for direct lock interface
Easy operation and management
*Built-in RF card reader for different user authentication modes (fingerprint and/or card)
*Easy-to-use PC software for access control and time attendance.
*Optional standalone user management using command cards.
*Template on card to store fingerprint date on a smart card Slim and elegant design.
*Slim design for installation on a door frame.
*Multi-color LED and multi-tone buzzer for intuitive user interface Full access control features.
*128 access groups and 128 time schedules.
*Anti-pass back door zones supporting 32 readers.
*Tamper switch and duress finger option.
External relay unit
*Secure door control and I/O expansion
Specifications
|
Memory |
4MB flash + 8MB RAM |
|
Fingerprint Sensor |
500 dpi optical sensor |
|
Matching speed (1:N) |
1:2,000 <1 sec |
|
Fingerprint capacity |
10,000 templates (5,000 users) |
|
Log Capacity |
50,000 events |
|
RF Card |
Proximity (EM), HID Prox, Mifare, iClass, FeliCa ® iDM, CEPAS |
|
Operation modes |
Fingerprint, RF card, RF card + fingerprint |
|
Network interface |
TCP/ IP, RS485 |
|
Wiegand output |
configurable up tp 64 bits |
|
TTL I/O |
2 inputs for exit switch and door sensor |
|
Internal relay |
deadbolt, EM lock, door strike, automatic door |
|
Sound and interface |
multi-color LED and multi-tone |
|
Operating Voltage |
12VDC |
|
Operating Temp. |
- 20'C ~ 50'C (-5'F ~ 122'F) |
|
Size |
50 x 160 x 37mm (W x H x D) |
Best Features:
World-Renowned Suprema Fingerprint Technology
The Powerful,yet sophisticated Suprema fingerprint algorithm forms the core of every BioEntry Plus, making it a truly secure biometric access control device. With unheralded speed and accuracy, Suprema algorithm has been proven as the world’s best.
FVC : International competition focused on fingerprint verification software assessment
MINEX TEST : Minutiae Interoperability Exchange Test by US Government’s NIST
Simple, Minimalistic design
BioEntry Plus exquisitely blends the benefits of a next generation distributed IP system with the high-level security provided by biometrics. The device offers the full benefits of a biometric system with a wide range of RF support for multiple authentication modes.
Versatile Interface
BioEntry Plus comes with not only a TCP/IP interface, but also more traditional interfaces (RS-485, Wiegand) to provide higher flexibility and multiple installation options for different environments. BioEntry Plus also comes with 2 internal inputs and 1 internal relay output to control peripheral devices. The I/O ports can also be expanded using the Secure I/O accessory.
