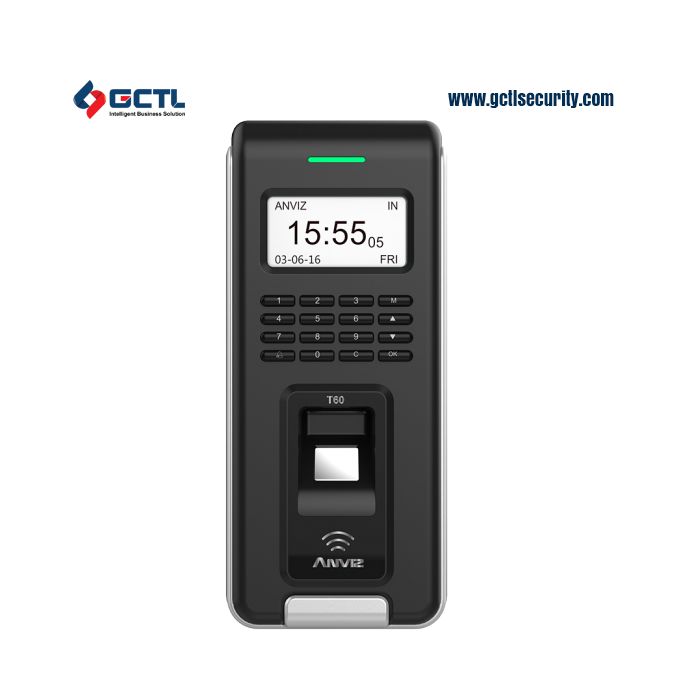

Anviz T60 Biometric Fingerprint RFID Access Control Machine
• Combine 2-in-1 function for time attendance and access control
• New generation fully sealed, waterproof and dustproof fingerprint sensor
• BioNano core fingerprint algorithm for T&A and access control,
• Professional fingerprint strengthen membrane. Improved performance to dry or wet fingers.
• Standard fingerprint capacity 3000. Standard record capacity 100,000
• Multiple identification method: FP,ID+PW,ID+FP,ID+Card,Card
• Standard RFID, optional Mifare reader
• Standard Mini USB, RS485 and TCP/IP networking communication
• Direct lock control, alarm output and doorbell output
Model: T60, Brand: ANVIZ
Feature
- Using Anviz BioNANO Algorithm
- 3000 Fingerprints, 3000 Cards, 100,000 Records
- With typical fingerprint auto update function
- Touch activation fingerprints sensor
- Support PoE power supply for both device and lock
- RS485, WIFI and TCP/IP communications, Wiegand input and output, Dual relay output
- Directly controlled door lock, grouping management, time setting
- Tamper alarm door magnetic signal interface (known the door open and close state)
- Fingerprint, password and card combination of independence and recognition
- 2.8" TFT LCD display
- Standard EM the RFID card reader module, optional Mifare module
- With cloud access ability
- Software support for period of time, group management, 16 group access permissions, flexible control
- 32 entrance guard time real-time monitoring data, easy to learn and easy to use
Parameter:
|
Capacity |
|
|
Fingerprint Capacity |
3,000 |
|
Card Capacity |
3,000 |
|
Log Capacity |
100,000 |
|
Interface |
|
|
Comm |
PoE-TCP/IP, RS485, USB Host, WiFi, 4G(Optional) |
|
Relay |
2 Relay Output (COM, NO, NC ) |
|
I/O |
Door Sensor, Exit Button, Door Bell, Wiegand in/out, Anti-pass Back |
|
Feature |
|
|
Identification Mode |
Finger, Password, Card |
|
Identification Speed |
<0.5s |
|
Card Reading Distance |
1~5cm ( 125KHz), 13.56MHz >2CM ) for Standard CR80 Card |
|
Image Display |
Support |
|
Time Attendance Mode |
8 |
|
Group, Time Zone |
16 Group, 32 Time Zone |
|
Work Code |
6 Digit |
|
Short Message |
50 |
|
Webserver |
Support |
|
Daylight Saving |
Support |
|
Voice Prompt |
Support |
|
Clock Bell |
30 Groups |
|
Software |
Anviz CrossChex |
|
Hardware |
|
|
CPU |
1GHz Quick CPU |
|
Sensor |
Touch Active Sensor |
|
Scanning Area |
22*18mm |
|
RFID Card |
Standard EM, Optional Mifare |
|
Display |
2.8" TFT |
|
Dimensions (W * H * D) |
90*200*35mm |
|
Working Temperature |
-30℃~ 60℃ |
|
Humidity |
20% to 90% |
|
PoE |
Standard IEEE802.3af |
|
Power input |
DC12V |
|
IP Grade |
IP55 |
