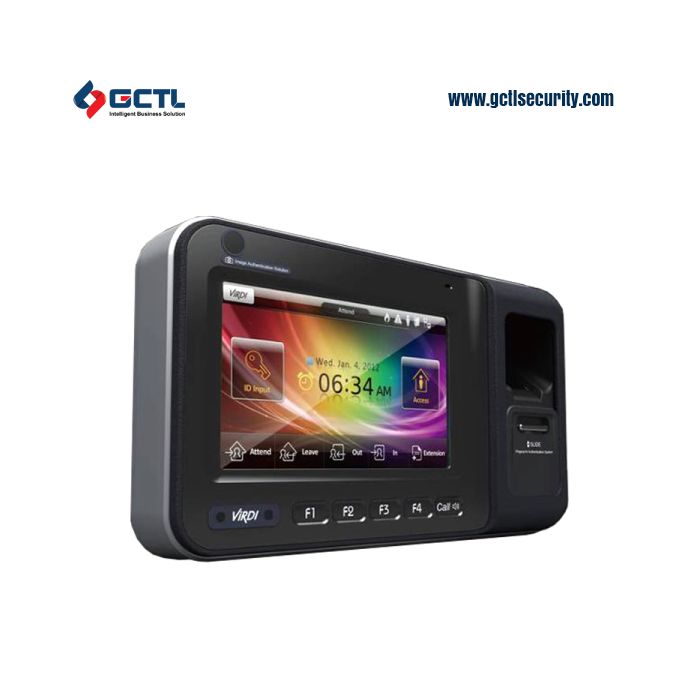

Virdi AC-6000 Fingerprint biometric time attendance Access Control System
The AC 6000 is a state-of-the-art access control and time recording fingerprint terminal.
4.8” colour touch LCD
100 000 user capacity (60 000 templates/500 000 transactions)
Patented ViRDI Fake Fingerprint Detection – can detect fingerprints made from paper, silicon, wax, etc.
Very fast fingerprint identification (10 000 templates < 1.5 seconds)
1.3 megapixel camera – records 12 500 images
Sapphire crystal lens and 500dpi optical sensor – scratch-free, high-resolution fingerprint detection
USB interface for configuration and data management
125KHz RFID or optional 13.65MHz Mifare card reader
Brand : VIRDI, Model : AC-6000
Features:
4.8” colour touch LCD
100 000 user capacity (60 000 templates/500 000 transactions)
Patented ViRDI Fake Fingerprint Detection – can detect fingerprints made from paper, silicon, wax, etc.
Very fast fingerprint identification (10 000 templates < 1.5 seconds)
1.3 megapixel camera – records 12 500 images
Sapphire crystal lens and 500dpi optical sensor – scratch-free, high-resolution fingerprint detection
Global and individual message function
Auto-sensing and reading of a finger on the reader – saving energy and reducing battery usage during power failures
Customisable graphic interface with (on-screen keypad)
USB interface for configuration and data management
125KHz RFID or optional 13.65MHz Mifare card reader
Specifications:
High-End Fingerprint Terminal
This state of the art terminal embraces the latest technology with a large color touch screen LCD, embedded digital camera and extremely fast processor.
1.3 Mega Pixel Digital Camera
Records a digital image of each user at the time of the transaction
5 inch Color TFT Touch Screen
Intuitive UI , simplifies operation User definable screen layout and background.
USB Memory
Transfers configuration settings, images, firmware and transaction logs using a USB Memory Stick.
Proximity Sensor
Recognizes the approach of a user and automatically turns on the LCD and keypad. Reduces power consumption.
|
CPU |
32 Bit RISC CPU |
|
Template Capacity |
100,000 Templates (50,000 users) |
|
Log Capacity |
500,000 Events |
|
Template size |
400 bits per template |
|
Memory |
256MB RAM + 256MB SD Memory |
|
Certificates |
KC, CE, FCC, RoHS |
|
Cards Supported |
125 KHz Proximity Card (AC-6000RF) |
|
LCD Display |
4.8 inch color touch LCD |
|
Communication |
RS-485, RS-232, Wiegand In & Out |
|
PC Interface |
TCP/IP, USB, Wireless LAN (optional) |
|
UV Sterilization (optional) |
99.9% in 20 minutes |
|
Fake Fingerprint Detection |
Paper, Film, Rubber, Silicon, etc |
|
Digital Camera |
1.3M Pixel |
|
Intercom interface |
|
|
Lock Control |
2 ports Control Motor Lock or 1 port Control EM/Strike/Deadbolt Lock |
|
Supply voltage |
Max DC 12V ~ 24V / 450mA |
|
Operation Environment |
-20 ~50° / Lower than 90% RH (Non-condensing) |
|
Fingerprint Sensor |
Optical Sensor |
|
Resolution |
500Dpi |
|
Verification time (1:1) |
< 0.5 s |
|
Identification time (1:N) |
< 1 s |
|
FRR / FAR |
0.1% / 0.0001% |
|
Application |
Access Control, Time & Attendance |
|
Dimensions |
197.5(W)×119.3(H)×46.8(D) mm |
