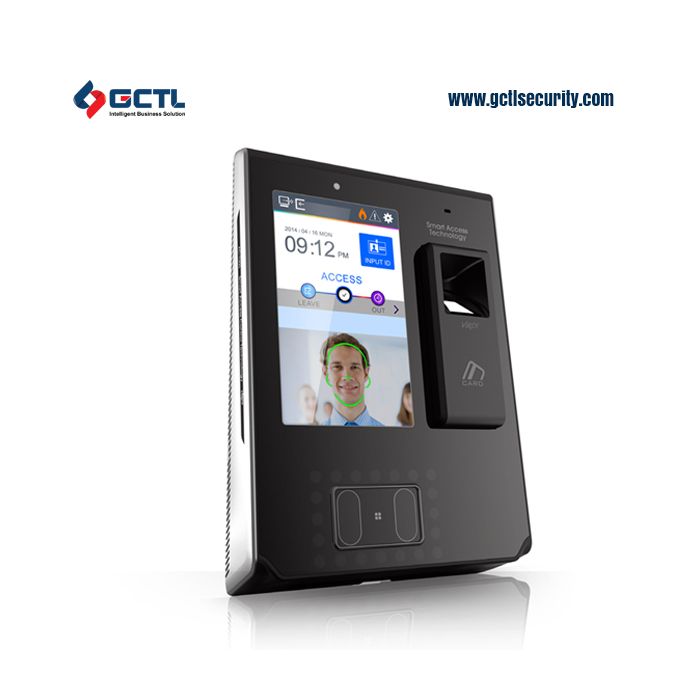

Virdi Ac-7000 Dual Fingerprint Face Recognition Machine Terminal
The AC 7000 is a dual Fingerprint and Face Recognition Terminal.It is a high-end access control & time recording terminal.
Standard features include: Android Operating System, large touch TFT LCD screen, Virdi’s patented biometric scanner with live + fake finger detection & auto scan, RFID or Mifare card reader, up to 60 function keys, Wiegand interface (both IN & OUT), lock relay, door status monitor, alarm interface, RS485 Secure Transmission Protocol (STP) / RS232 port and TCP/IP interface.
1GHz Quad Core CPU, 2GB Memory
Android OS, 5″ Colour TFT Touch LCD
Dual Auto Tilt Cameras with IR Illumination
PIV Rated Fingerprint Sensor
250 000 Fingerprints, 60 000 Faces (1:1) 3 000 Faces (1:N)
MicroSD Expansion Slot
Brand : VIRDI, Model : AC-7000
Features:
1GHz Quad Core CPU
2GB Memory
Android OS
5″ Colour TFT Touch LCD
Dual Auto Tilt Cameras with IR Illumination
PIV Rated Fingerprint Sensor
250 000 Fingerprints
60 000 Faces (1:1) 3 000 Faces (1:N)
MicroSD Expansion Slot
Specifications:
High performance
Face&Fingerprint Recognition Terminal
AC-7000 is the latest access controller with fake finger detection and a tilt camera which automatically detects a face within 3m. Its 5″ touch LCD and familiar UI such as Android smartphone. Apps greatly enhance user convenience.
Auto height angle adjustment
A tilt camera offers auto face detection. No need to lower posture or bend the knees
Face detection in the dark
IR LED Camera offers user convenience as it detects. face even in the dark without any trouble.
VoIP support
VoIP with improved sound quality is provided.
5″ LCD Touch Display
Lets you accomplish more, and quicker.
The AC-7000 is fitted with a large 5-inch Color LCD touch screen. The brilliant display allows device administrators easy access to all the settings without using keypad. The configuration is intuitive with the touch screen and the device can be setup much quicker.
Remote Control
Manage the AC-7000 with Android.
Device administrators can do a lot remotely using Virdi’s Android application. Tasks such as add/modify users, log search, user transfers, device power on/off etc can all be done through the application. The application is available free from Google Play Store and in a few simple steps of configuring your Android phone, it will pair up and work as a remote control for the Virdi device.
Fake Finger Detection
The fakes can’t fool it.
Security is only as good as the intelligence of the sensor. Virdi’s patented optical sensor and algorithm detect fake fingerprints reproduced on paper, film, silicone and rubber. It will be futile to try to fool the Virdi fingerprint scanner.
|
CPU |
1 GHz Quad Core (Dual) |
|
Camera |
Tilt Dual Camera (Color & IR) |
|
Template Capacity |
250,000 users |
|
Log Capacity |
2,000,000 Logs |
|
Cards Supported |
125KHz RF / 13.56MHz Smart Card |
|
Memory |
4GB NAND + 8GB microSD |
|
Operation Mode |
Face, Fingerprint, Card, PIN |
|
LCD Display |
5.0 inch Touchpad LCD (480*800) |
|
Communications |
TCP/IP, RS-485, RS-232, Wiegand In & Out |
|
PoE |
13W PoE (Optional) |
|
PC Interface |
TCP/IP, Wireless LAN (USB type, Optional) |
|
Lock Control |
EM, Strike, Motor Lock, Auto Door |
|
Fingerprint Module |
FAS04 (20*20mm/400*400 pixel/500dpi, PIV certified sensor) |
|
Fake Fingerprint Detection |
Silicone, Rubber, Film, Paper, Gelatin |
|
Certificates |
KC, CE, FCC, RoHS |
|
FRR / FAR |
0.1% / 0.0001% |
|
Power |
12 ~ 24VDC |
|
Dimension (W)x(H)x(D)mm |
149.5 x 208.5 x 46 |
