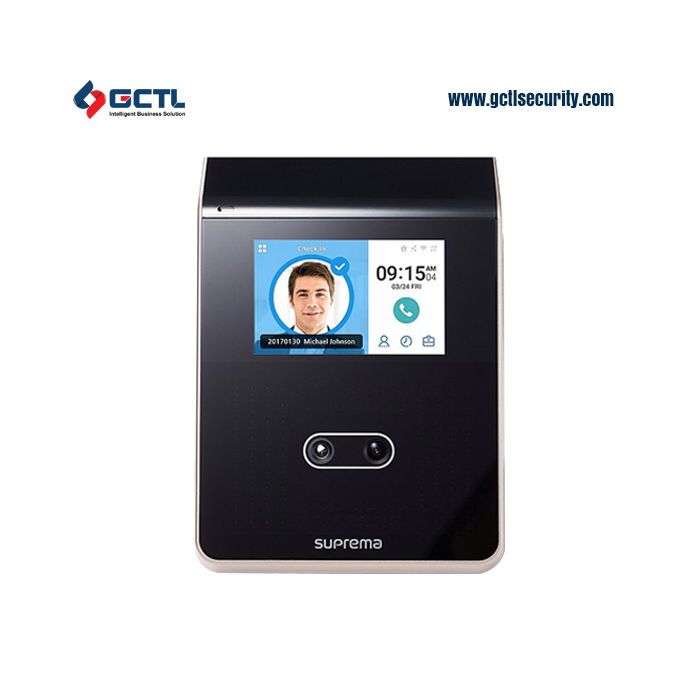

Suprema FaceStation 2 Face recognition terminal & time attendance

Suprema FaceStation 2:

Suprema FaceStation 2 is the most advanced face recognition terminal providing loads of the world’s best features. Powered by Suprema’s latest innovation in facial biometrics, FaceStation 2 offers unrivalled matching speed, accuracy and level of security. With Suprema’s patented optic engineering, FaceStation 2 achieves up to 25,000 lx of operating illuminance which in turn, brings all-round confidence regardless of lighting conditions. Packed in an ergonomically designed structure, FaceStation 2 provides exceptional performance and usability for diverse access control and time attendance sites, large or small.

Massive Memory Capacity:

FaceStation 2 offers a massive memory capacity to manage largest number of users in its class. A single unit of FaceStation 2 can accommodate up to 30,000 users, 50,000 face image logs and 5,000,000 text logs.

All Lighting Conditions Confidence:

With Suprema’s patented IR illumination and optical technique, FaceStation 2 now achieves operating illuminance of up to 25,000 lx, about 5 times brighter than industry average. At 25,000 lx, FaceStation 2 allows uninterrupted face recognition regardless of all possible indoor lighting conditions as well as outdoor installations unless exposed on direct sunlight.

Improved Ergonomics for Greater Height Range:

FaceStation 2 allows the greatest height range of 145cm ~ 210cm. With optional tilt-bracket, FaceStation 2 also accommodate wheelchaired persons and children.

Android-based Intuitive GUI:

On its wide touchscreen LCD, FaceStation 2 offers industry’s most intuitive graphic user interface. Thanks to the latest Android 5.0 OS, FaceStation 2 features latest material design concept to provide extremely easy to use GUI requiring near-zero training for both users and system administrators.

Next Generation Face Recognition Technology

    - High performance face recognition

    - Unparalleled image processing performance using both visual camera and IR camera

    - Intelligent adaptive/active LED illumination for increased accuracy

Powerful Dual-CPU Architecture:

     - 1.4 GHz Quad Core

     - 4” color TFT LCD

     - Solid and scratch-free surface for extra durability

     - Fully customizable, intuitive and user-friendly GUI

Distributed IP Access Control System:

    - Provides reader and controller features in one device

Video Phone Interface:

    - Provides built-in camera, microphone and speaker

    - Supports both digital video phones and analog video phones

    - BioStar Video Phone software to support single/multi operator interphone systems

Versatile Interfaces - Extra Flexibility:

    - Provides 2-channel RS485, RS232, Wiegand and USB

    - Provides 4 inputs and 2 output relays

    - Optional I/O ports for further expansion (Secure I/O)

 SPECIFICATIONS:

CPU                             : 1.4 GHz Quad Core

Memory                      : 8GB Flash + 1GB RAM

LCD                              : 4” color TFT LCD

Camera                       : Face Detection & Videophone

RF Card Options          : 125kHz EM & 13.56Mhz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa

Mobile Card                 : NFC

Template Capacity      : 50,000[1:1], 1,000 [1:N]

Max. Face per User     : 5

Max User                     : 30,000

Log Capacity                : 5,000,000(50,000 Image logs)

Ethernet                      : 10/100/1000 Mbps, auto MDI/MDI-XTamper

Wi-Fi                            : Built-in, IEEE 802.11 b/g

Sound                          : 24 bit Voice DSP (echo cancellation)

Operating Temp          : - 20’C ~ 50’C

Storage Temp              : -40°C ~ 70°C

Operating Voltage      : 12vDC

Operating Humidity      : 0% ~ 80%, non-condensing

Storage Humidity         : 0% ~ 90%, non-condensing

Weight                         : Device: 548g Bracket: 74g (Including washer and bolt)

Dimensions (mm)       : 141 x 164 x 125=

RS-485                         : 1ch Host or Slave (Selectable)

Wiegand                      : 1ch Input, 1ch Output

TTL Input                     : 2ch Inputs

Relay                           : 1 Relay

USB                            : USB 2.0 (Host)

SD Card                      : Not supported

PoE                             : Not supported

Intercom                      : Supported

Power                          : DC 24 V
