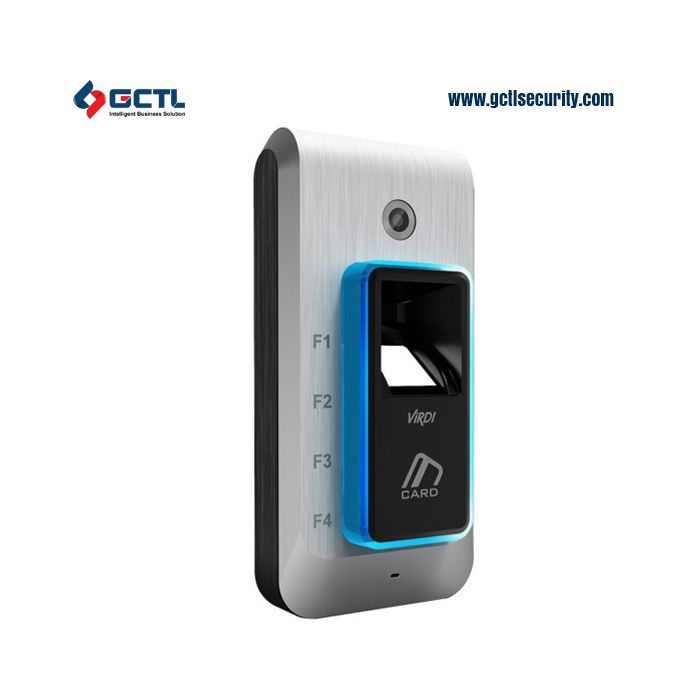

Virdi AC-F100 Biometric Access Control fingerprint terminal Machine
The AC-F100 (SMARTi) is a SOHO/SMME/Residential Access Control fingerprint terminal. It contains ViRDI’s patented live & fake fingerprint detection, a 1.3mp camera, four capacitive function buttons, Wiegand (Out) and RS-485 Secure Transmission Protocol (STP) communication and Wi-Fi communication for management. It can communicate with an Android or iOS mobile device via a Peer-to-Peer connection in AP mode, to a network via Wi-Fi to be managed with UNIS Access Control and Template Management Software or via DDNS for remote access from an Android or iOS mobile device. The AC-F100 has no Wiegand inputs, I/O inputs, locks relays or door status inputs. Instead it utilises the BLC-015 single door controller.
1 000 users, 1 000 Fingerprints, 1 000 000 Transaction log, 10 000 Photo log
1.3mp camera, IP65, Wi-Fi Only, RS-485 STP and Wiegand Out
iOS and Android Mobile Device Support
DDNS Functionality, Push Notifications
Brand : VIRDI, Model : AC-F100
Features:
1 000 users, 1 000 Fingerprints, 1 000 000 Transaction log, 10 000 Photo log
1.3mp camera, IP65
Wi-Fi Only, RS-485 STP and Wiegand Out
4 Function Buttons
iOS and Android Mobile Device Support
iUNIS GUI for Mobile Devices
DDNS Functionality
Push Notifications
Specifications:
Smart Access Device
ACF100 is an evolution in Biometric Access Control technology. A new standard in aesthetic and robust design is achieved without compromising technical functionality.
Smartphone
Application (i-UNIS)
Access control and time management application by Android, iOS
Compact. IP-65 Certified.
Dust proof. Waterproof. Durable.
The AC-F100 is tightly encased for maximum weatherproof and durability. It has been certified as being dust proof and 100% tight against water projected at it from any direction. Hence, the AC-F100 is suitable for outdoor installation and perfect for dusty environments such as construction sites.
❊ Sleek design. Only 37mm thickness.
Fake Finger Detection
Defence against clever intrusion.
Security is only as good as the intelligence of the sensor. Virdi’s patented optical sensor and algorithm detect fake fingerprints reproduced on paper, film, silicone and rubber. It will be futile to try to fool the Virdi fingerprint scanner.
Built-in Digital Camera
Additional visual verification.
Besides authenticating fingerprints, the Virdi AC-F100 fingerprint scanner comes with a built-in digital camera that snaps a photo of the person who is seeking entry. The photo, which will be sent to your designated smartphone, can serve as a visual verification to ensure the person is indeed who he or she claims to be.
Install Easily. Setup Flexibly
The AC-F100 fingerprint scanner can either be setup as a stand-alone scanner with wireless sync to your smartphone or integrated via your local area network to server backend solutions such as access control and time management systems.
|
CPU |
RISC 32bit 400MHz CPU |
|
Template Capacity |
1,000 Fingers (1,000 users) |
|
Log Capacity |
1,000,000 Events |
|
Cards Supported |
125 KHz Proximity Card |
|
Operation Mode |
Fingerprint, Card |
|
Memory |
256MB RAM + 256MB SD Memory |
|
Communications |
Wi-Fi, Wiegand Out, RS485 |
|
PC Interface |
WIFI (Standard) |
|
Lock Control |
2port Control Motor Lock or 1port Control EM/Strike/Deadbolt Lock |
|
Fingerprint Sensor |
500Dpi Optical Sensor |
|
Fake Fingerprint Detection |
Paper, Film, Rubber, Silicon, etc |
|
Certificates |
KC, CE |
|
FRR / FAR |
0.1% / 0.0001% |
|
Key Button |
F1~F4 Touch Type |
|
Supply voltage |
DC 12V ~ 24V |
|
Operation Environment |
-20 ~50¡Æ / Lower than 90% RH (Non-condensing) |
|
Dimension |
68(W) X 138(H) X 37(D) mm |
