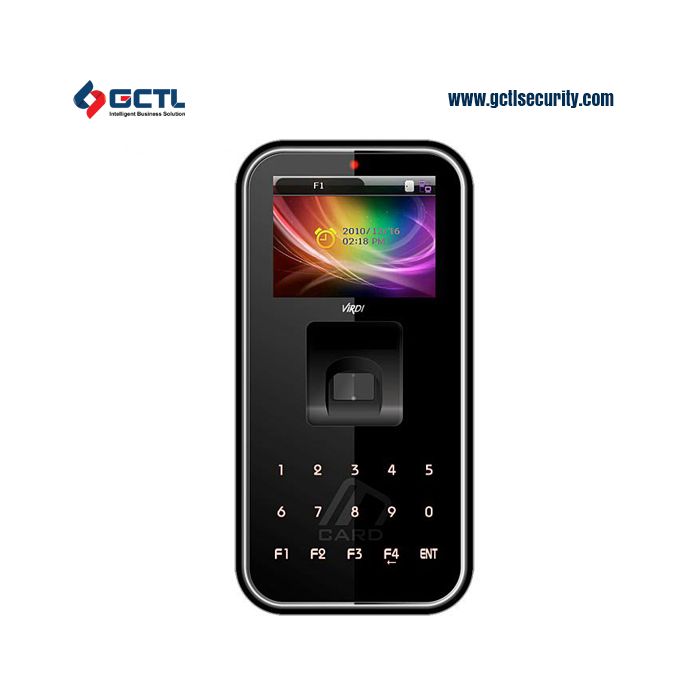

Virdi AC-5000 Fingerprint biometric time attendance Access Control Machine
The AC 5000 is the latest design in outdoor (IP65) fingerprint access control & time recording.
Standard features include: Virdi’s patented biometric scanner with live + fake finger detection & auto scan, RFID or Mifare card reader,
IP65 weather resistant enclosure,
POE, 4 function keys, full numerical keypad,
Wiegand interface (both IN & OUT), lock relay, door status monitor, alarm interface,
RS485 Secure Transmission Protocol (STP) /RS232 port and TCP/IP interface.
The AC 5000 can operate as a standalone device or be managed via a PC/Server.
Brand : VIRDI, Model : AC-5000
Features:
2.8” Colour LCD
20 000 RFID Users – 50 000 Transactions
Very fast Fingerprint Identification 10 000 templates < 2 seconds
IP 65
Global and Individual Message Function
High Speed Processor
Customizable Backgrounds and Audio
125KHz RFID or optional 13.65MHz Mifare Card Reader
PoE / 12 VDC
Specifications:
Outdoor IP65 Fingerprint Terminal
An evolution in fingerprint terminal technology,
incorporating state of the art design, elegant looks and
a robust IP65 rated housing.
2.8 inch Color Screen
Intuitive UI , simplifies operation
User Customizable LCD Background
Dustproof / Waterproof
IP65 level of Dustproof / Waterproof structure
PoE (Power over Ethernet)
Easy installation with terminal connectors
Options:
Vertical Robust Enclosure
Vandal Resistant Enclosure
Advanced Portable Kit
PSU with Battery Backup
Secure Relay
BLC-015 Single Door Secure Controller with Battery Back-up (12V 7A/h)
EB-030 No Touch Exit Button
|
CPU |
400 MHz 32 Bit RISC CPU |
|
Template Capacity |
40 000 templates (20 000 users) |
|
Log Capacity |
61000 events |
|
Cards Supported |
125 Khz Proximity (AC-5000RF) 13,56 MHz Smart Card (AC-5000SC) |
|
Keypad |
Touch Keypad LED backlit |
|
LCD Display |
(320× 240) 2,8''TFT Color Screen |
|
Communication |
TCP/IP, Wiegand In/Out, RS485, RS232 |
|
Memory |
32MB RAM + 32MB SD Memory |
|
Certificates |
KC, CE, FCC, RoHS |
|
Intercom interface |
No |
|
Supply voltage |
Max VDC 12V ~ 24V |
|
Operation Environment |
-20 ~ 50 °C |
|
Fingerprint Sensor |
White Optical Sensor |
|
Sensor dimensions |
15 × 17 mm |
|
Resolution |
500 DPI |
|
Verification time (1:1) |
< 0.5 s |
|
Identification time (1:N) |
< 1 s |
|
FRR / FAR |
0.1% / 0.0001% |
|
Application |
Access Control, Time & Attendance |
|
Dimensions |
88mm(W)x175mm(H)x43.5mm(D) |
