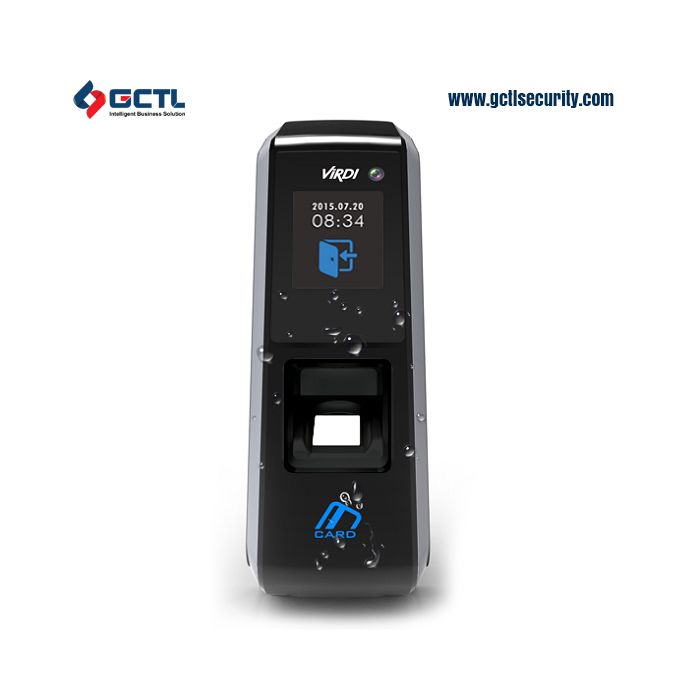

Virdi AC-2200 biometric Fingerprint time attendance Access Control Machine
The AC 2200 is an mid-range Biometric Terminal complete with either an 125KHz or 13.56MHz card reader and is Mobile Card capable.
IP65 Ingress Protection Rated
1 000 Card Users, 1 000 Fingerprint Users (1:N)
100 000 Event Log
Identification 1:1000 > 1 sec
Brand : Virdi, Model : AC-2200
Features:
IP65 Ingress Protection Rated
44.9 x 44.96 mm Colour LCD
1 000 Card Users
1 000 Fingerprint Users (1:N)
Virdi Mobile Card capable
UNIS-B PLUS via Bluetooth
100 000 Event Log
Identification 1:1000 > 1 sec
Bluetooth Low Energy (BLE)
Stand Alone or Network
Specifications:
Security, Speed, Scalability
The AC-2200 is an high-end fingerprint biometric authentication and verification system
LCD Screen Display
The AC-2200 is fitted with a 1.77" Color LCD screen. The brilliant display allows device administrators view the system settings
RF Smart Card
RF/smart card module is attached onto AC-2200 for added security
Bluetooth Mobile Key Solution
With built-in bluetooth capabilities, the AC-2200 allows smart phone devices to be used as access keys with through the use of the Mobile Key App, "imkey."
Mobile App (imkey)
Live Finger Detection: New patented sensor detects fake fingerprints made of paper, film, silicone and rubber
IP 65
The IP 65 rating indicates no ingress of dust; complete protection against contact (dust tight). Also indicated protection by water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects
Digital Camera
Records a digital image of each user at the time of the transaction. (640 x 480 pixel)
Smartphone Application
(UNIS-B plus, imkey)
|
CPU |
ARM9, 400MHz CPU |
|
LCD |
1.77" TFT Color Touch LCD" |
|
Camera |
Built in Digital Camera |
|
User Capacity |
1:N 2,000 |
|
Memory |
32MB NOR+128MB NAND Flash, 64MB DDR RAM |
|
Log Capacity |
100,000 |
|
Ingress Protection |
IP 65 |
|
Card Reader |
125 KHz Prox or 13.56 MHz Mifare |
|
Communication Port |
TCP/IP (10/100M |
|
Server |
UNIS Compatible |
|
Lock Control |
EM, Strike, Motor Lock, Auto Door |
|
Certificates |
KC, CE, FCC, RoHS |
|
Dimension |
58 X 191 X 62 mm |
