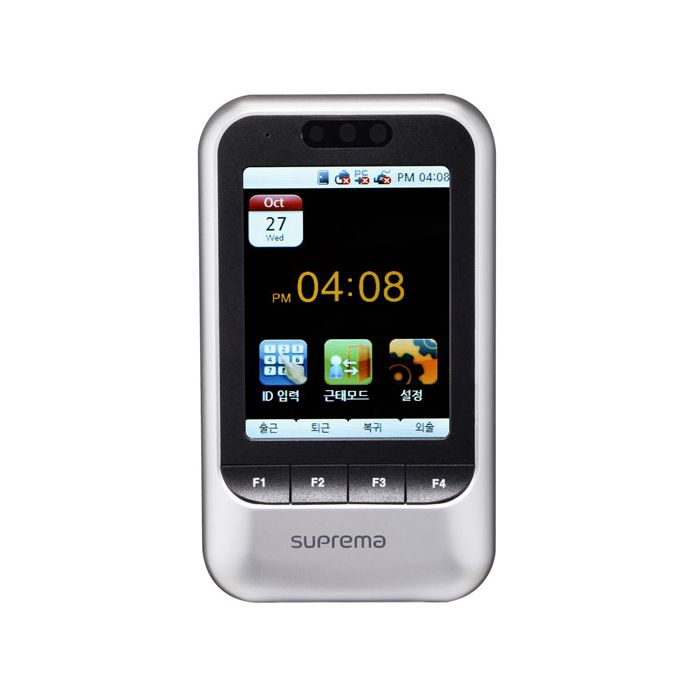

Suprema X-Station Smart IP RFID Terminal

The Suprema X-Station Smart IP RFID Terminal delivers advanced access-control performance in a sleek form-factor. Featuring a 3.5″ touchscreen GUI, built-in camera with face detection and image-logging, and multiple I/O/network interfaces (TCP/IP, RS-485, Wiegand), it’s ideal for high-traffic environments requiring secure RFID or mobile-credential access management.

Key Features

3.5″ colour touchscreen LCD + intuitive GUI for easy user interaction.
Built-in camera with face-detection and image-log capability for enhanced security.
Supports RFID credential reading (13.56 MHz MIFARE/DESFire or 125 kHz EM options).
Flexible networking & I/O: TCP/IP for networked use, RS-485, Wiegand for legacy systems; 2 internal inputs + 1 relay output.
Supports high capacity logging: up to 1,000,000 text logs + 5,000 image logs (depending model).
Operating ready for harsh environments: wide temperature range and sturdy slim design.
Easy integration with Suprema’s software platforms (BioStar) or other access control systems.

Technical Specifications

Specification	Details
Model / Credential Option	XSM: 13.56 MHz MIFARE / DESFire; XSE: 125 kHz EM
User Capacity (1:1 / 1:N)	200,000 / 200,000 (for the listed X-Station model)
Text Log Capacity	Up to 1,000,000 entries
Image Log Capacity	Up to 5,000 entries
Processor / Memory	667 MHz DSP, 128 MB RAM + 1 GB Flash
Display	3.5″ colour touchscreen LCD
Interfaces	Ethernet 10/100 Mbps auto MDI/MDI-X, RS-485 host/slave, Wiegand in/out; 2 inputs, 1 relay output
Power	12 V DC
Dimensions (W×H×D)	79 × 135 × 21 mm
Operating Temperature	–20 °C ~ +50 °C
Compatibility	Works with Suprema BioStar 1.x (and legacy systems)
