Suprema XPass Overview

The XPass D2 Outdoor Compact RFID Reader from Suprema is a multiclass RFID card reader designed for use in centralized access control systems. NFC enables Android smartphones to be used to gain access. Additionally, BLE communication enables iOS and Android smartphones to be used to gain access.

This device is equipped with RS-485 and Wiegand interfaces. It is housed in an IP67- and IK08-rated enclosure to protect it from inclement weather and impacts.

IP65, IP67, Dust & Water Proof

XPass D2 offers superior ingress protection with its IP65, IP67 rated rugged structure. The device provides superior protection against invasive moisture, dust and even liquids. This protection is achieved with meticulous sealing and extra protective engineering from Suprema. No matter how harsh the environment, XPass D2 is the ideal choice for outdoor applications.

IK08 Vandal-proof Structure

The XPass D2 comes with a robust, vandal-resistant housing. Combining reinforced resin with Suprema’s sophisticated engineering, the XPass D2 is able to withstand a high level of impact, making it vandal-resistant. Coupled with IK08 ingress protection, XPass D2 is a perfect solution for outdoor applications.

Dual Frequency, Multi-Smartcard Reader

Featuring dual-frequency RFID card technology, XPass D2 supports both LF(125KHz) and HF(13.56MHz) RFID including all RFID card standards. On top of fingerprint credential, XPass D2 supports most types of RFID card standards with a single device including EM, MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, NFC and BLE.

Standardized Communications

Open Supervised Device Protocol (OSDP)

Combined with Suprema’s intelligent biometric controller, the CoreStation, XPass D2 completes biometrics-driven access control system with enhanced simplicity and level of security of centralized system topology.

Mullion-type Design

With its 48mm width, XPass D2 perfectly fits in in narrow spaces and door frames

Gangbox-type Design

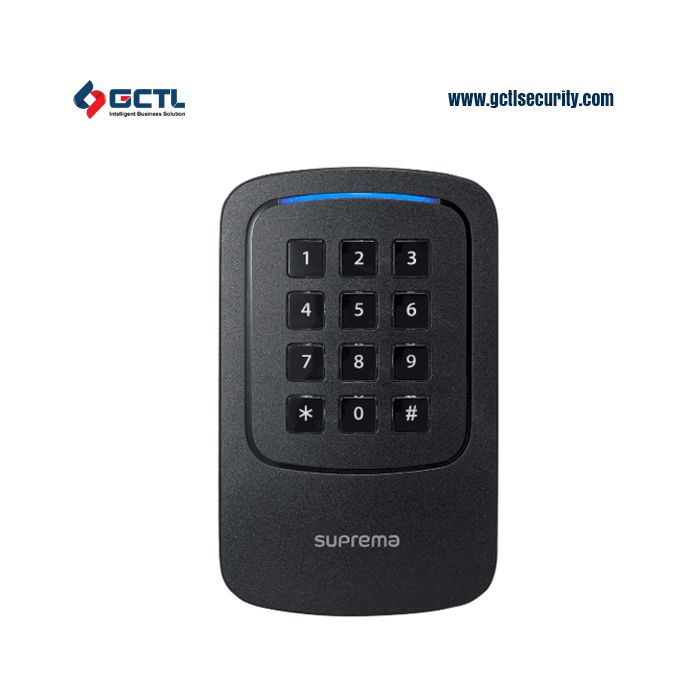

XPass D2 offers complete installation in Gangbox locations. You can choose either Gangbox-type or Gangbox Keypad-type depending on your needs

IP65, IP67, Dust & Water Proof

Specification

Credential	LF card option	EM
	HF card option	MIFARE, MIFARE Plus, DESFire/EV1, FeliCa
	NFC card	Supported
	BLE card	Supported
	RF read range^*	MIFARE/DESFire/EM : 50 mm, FeliCa: 30 mm RF read range will vary depending on the installation environment.
Hardware	CPU	80 MHz
	Memory	256 KB Flash + 64 KB RAM
	LED	Multi-color
	Sound	Multi-tone Buzzer
	Operating temperature	-35°C ~ 65°C
	Storage temperature	-40°C ~ 70°C
	Operating humidity	0% ~ 95%, non-condensing
	Storage humidity	0% ~ 95%, non-condensing
	Dimension (W x H x D)	48 mm x 144.7 mm x 27 mm
	Weight	Device: 117g Bracket: 30g (Including washer and bolt)
	IP rating	IP65, IP67
	IK rating	IK08 * Ingress Protection rating
	Certificates	CE, FCC, KC, RoHS, REACH, WEEE, SIG
Interface	RS-485	1ch
	Wiegand	1ch
	LED	2ch
	Beep	1ch
	Tamper	Supported
Electrical	Power	Voltage: DC 12 V, Current: Max. 400 mA * Use 12 VDC, 1.5A power supply.
	Switch input VIH	Min. 3 V Max. 5 V
	Switch input VIL	Max. 1 V
	Switch Pull-up resistance	4.7 kΩ (The input ports are pulled up with 4.7 kΩ.)
	Wiegand output VOH	More than 4.8 V
	Wiegand output VOL	Less than 0.2 V
	Wiegand output Pull-up resistance	Internally pulled up with 1 kΩ

Suprema XPass D2 Outdoor Compact RFID Reader

Key Features

RFID Smart Card Reader
For Centralized Access Control Systems
Compatible with Android NFC HCE
BLE Communication for iOS and Android
