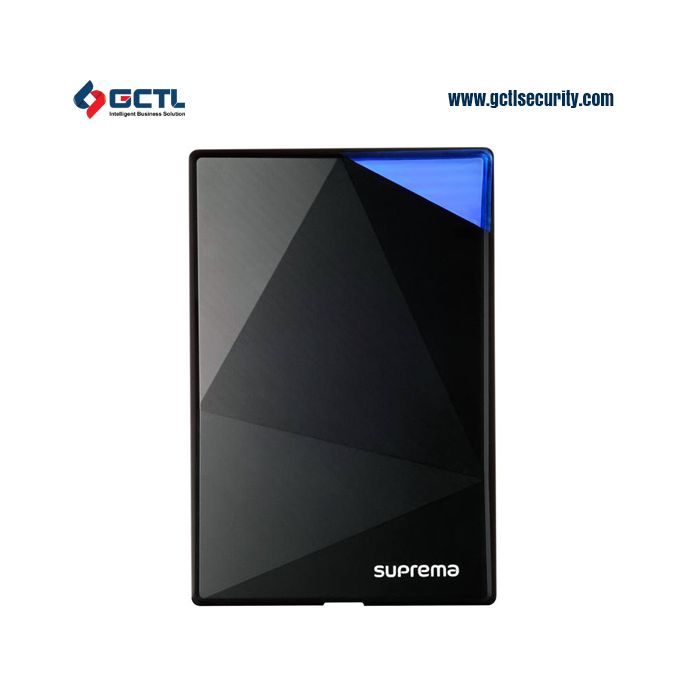

Suprema XPass S2 Multi-Smartcard Access Control Reader

Name: Access Control System
Brand : Suprema, Model : Xpass S2

Special Features:

True environment adaptability
   - IP65 ingress protection certified
   - Dust and waterproof features for outdoor installations
   - Integrated temperature adaptive heater to combat cold environments
   - Operational temperature range from -35°C to 65°C

Versatile interface support
   - TCP/IP, RS485, Wiegand interface

Large device memory for enterprise level access control applications
   - Supports up to 50,000 users and 100,000 logs
   - Supports up to 128 user groups and 64 zones

Extensive Multi-smartcard support
  - MiFare, DESFire, ISO14443A/B, ISO15693, FeliCa, NFC

Minimalistic Ultra slim design
  - Designed to fit standard US/EU/ASIA gang box
  - Profile that is only 11.4mm thick to create a slim aesthetic look

Easier Installation and operation
  - Simple wiring due to usage of TCP/IP based distributed system
  - Embedded controller capabilities for locks and sub-devices using relays and Wiegand
  - Command card support for on-device user enrollment

 Access Control Specifications:

Multi-Smartcard Reader
The Xpass S2 features innovative multi-smartcard support. This new feature gives Xpass S2 the ability to read multiple formats from Mifare, DesFire, ISO14443A/B, ISO15693, to Felica.

Minimalistic Ultra Slim Design
Xpass S2’s profile is only 11.4mm thick, creating a slim aesthetic look when installed. Tailored to fit a standard US/EU/ASIA gang box, Xpass S2 allows for quick and easy installations.

IP65-rated Dust & Waterproof structure
Xpass S2 has been comprehensively sealed against invasive moisture, dust and liquid. Featuring IP65-rated protection, meticulous sealing, and extra protective engineering, it is ensured that Xpass S2 will operate with unmatched reliability in all type of installation environments.

Adaptive Temperature Control
Adaptive temperature control will allow Xpass S2 to operate in extreme cold temperatures as well as extreme hot environments. (Operational temperature -35°C to 65°C)
