Anviz T5pro Biometric Fingerprint RFID Access Control System
TI Stellaris 32-Bit High Speed CPU, Stable and reliable. Management Card Registration Compact Design, 1000 Fingerprints, 50000 Records, Infrared Auto Wakeup Sensor, TCP/IP, RS485, USB Device, Direct Lock Control, Door Open Sensor, Wiegand Out, FP, Card, FP+Card, IP54, Standard EM RFID, Optional Mifare Card.
- RFID, Mifare card module; Compatible with industrial standard
- Communicate with computer via TCP/IP and RS485, Mini USB port
- Direct lock control and door open sensor as a standalone access controller
- Standard Wiegand26 output to connect with standard access controller
- Easy user enrollment on the unit via Master Card or in the management software on computer
Model: T5 Pro, Brand: ANVIZ

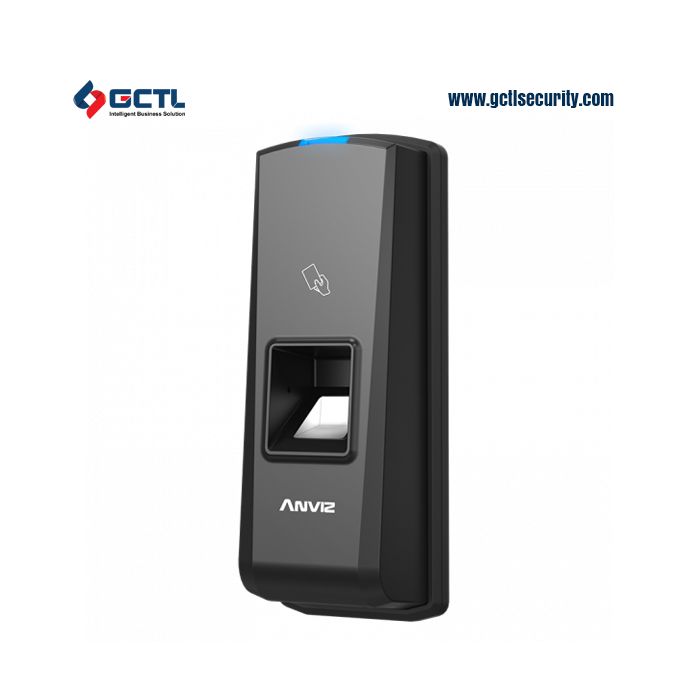

T5 Pro Fingerprint & RFID Access Control

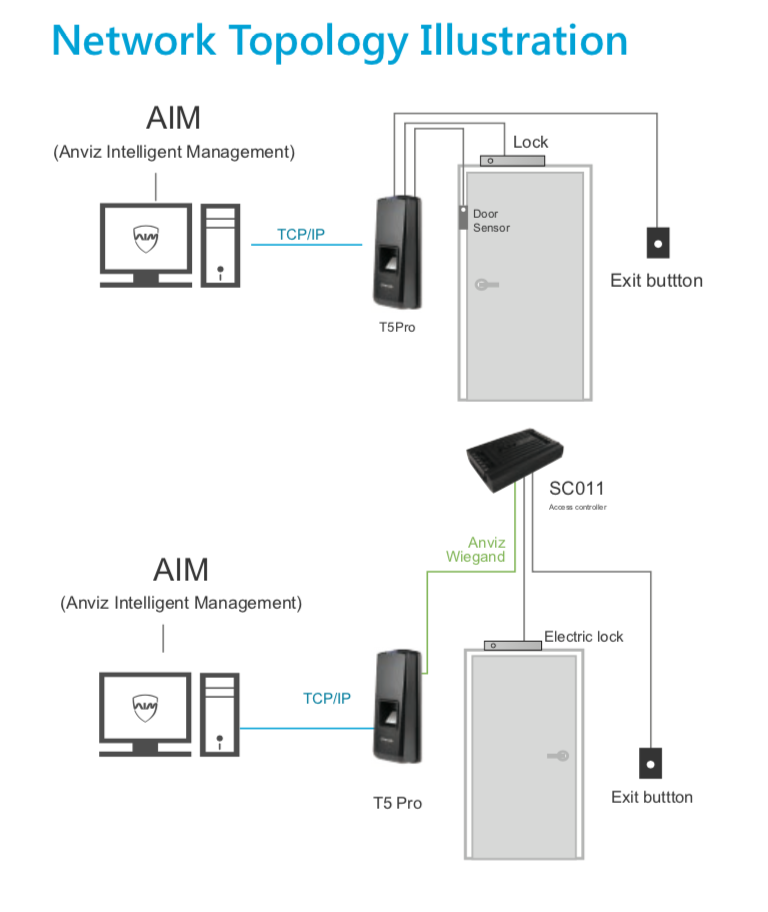

T5 Pro is an innovative fingerprint card access controller which fully integrates fingerprint and RFID technology. The very compact design makes it suitable for installation on door frame. T5 Pro has standard Wiegand output to connect seamlessly with access controllers and relay output driver the electric lock directly. T5 Pro can easily update the existing card readers for higher security level of fingerprint and card.
Features :
• Small in size and compact in design. Can be easily installed on doorframe
• New generation fully sealed, waterproof and dustproof fingerprint sensor. Bio Nano core fingerprint algorithm
• Steady 2011 version algorithm platform for T&A and access control, high performance and reliability
• Easy user enrollment on the unit via Master Card or in the management software on computer
• Identification method: fingerprint, card, fingerprint + card
• RFID , Misfire card module. Compatible with industrial standard
• Fingerprint Storage Capacity: 1000
• Communicate with computer via TCP/IP and RS485, Mini USB port
• Direct lock control and door open sesor as a standlone access controller
• Standard Wiegand26 output to connect with standard access controller
• Encrypted wiegand output to connect with Anviz simple access controller SC011
Parameter :
|
Item |
Description |
|
Processor |
TI Stellaris® 32-Bit High Speed CPU |
|
Algorithm |
BioNANO V10 |
|
Sensor |
AFOS300 Optical Sensor |
|
Sensor Wake Up Mode |
Infrared Auto Wakeup Sensor |
|
Scan Area |
22mm*18mm |
|
Resolution |
500 DPI |
|
Capacity |
Max 1,000 Users |
|
Template |
Max 1,000 Templates |
|
Log Capacity |
Max 50,000 Logs |
|
Identification Mode |
FP,Card,FP+Card, |
|
Identification Time |
<0.5 |
|
FRR |
0.001% |
|
FAR |
0.00001% |
|
Communication Interface |
TCP/IP Networking USB plug&play |
|
Card Reader Module |
EM RFID Optional Mifare Card |
|
Relay |
1Relay |
|
Wiegand |
Output |
|
Door Sensor |
yes |
|
Size |
145mm*55mm*37mm L*W*H |
