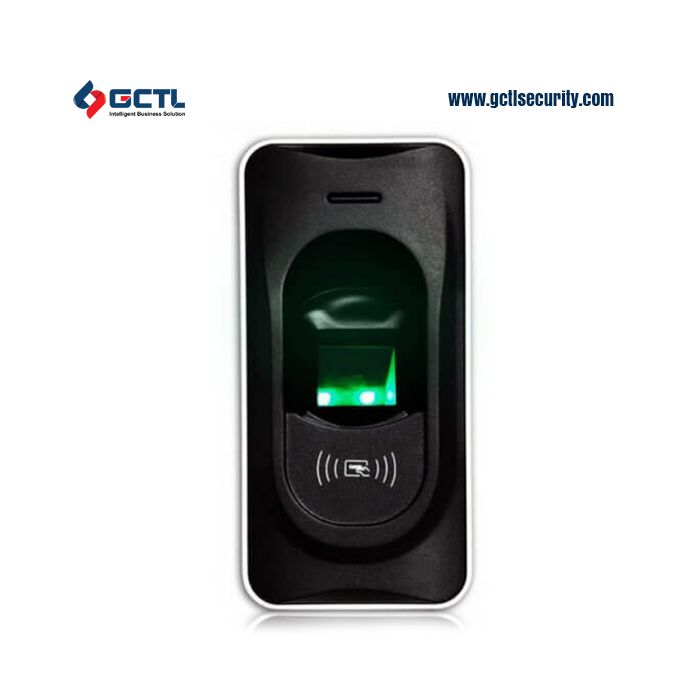

GRANDING FR1200 Fingerprint Access Control Reader
- Fingerprint capacity: 500, Log capacity: 30,000
- Waterproof enclosure permits this reader to be used for outdoor applications
- Can transfer fingerprint template to inBIO controller or F8 series fingerprint access controller through RS485 communication
- All information and transaction of the users will be stored in the master terminal.
- Slave reader captures the fingerprint image and transfers it to the master terminal for verification.
- Buzzers and indicators in master terminal and slave reader will give corresponding prompt once verification process finished
- Anti-pass back is applicable in master and slave devices
- Standard: CE, FCC, ROHS
Biometric Performance, Reliable, durable and highly accurate ZK fingerprint sensor with ver. 10 algorithm provides less than 1.5 second user recognition from the slave reader or the inBio panel with an extremely low false read rate.
Waterproof Enclosure
IP65 rated waterproof enclosure permits this reader to be used for outdoor applications.
Capacity
• Fingerprint: 500 templates
• Transactions: 30,000 Communication
• RS485 Optional Function
• ID Card/ Mifare Card Power
• Power Supply: 12V DC, 1.5A
• Operating Temp: 32-113 °F (0-45 °C)
• Operating Humidity: 20% to 80%
Dimensions
• Length: 3” (102 mm)
• Width: 1.6” (50 mm)
• Depth: 1.1” (37 mm)
Packaging
• Dimensions: 4 1/2” x 8 1/4” x 2 3/4”
Specifications:
CPU: 324MHz
Sensor: Small-sized sensor
Environment:
Operation temperature : 0-45 centigrade
Operation humidity : 20%-80%
Communication : RS485
Standard Function : ID card Module
Optional Function : Mifare Card Module
Power Supply : 12vDC
-
