Hikvision DS-7108HGHI-E1-F1 DVR in Bangladesh
Features and Functions:-
- Video Input and Transmission:
- Connectable to HDTVI and analog cameras
- Long distance transmission over UTP and coaxial cable
Compression and Recording:
- H.264+ compression improves encoding efficiency by up to 50% and reduces data storage costs
- Full channel recording at up to 720p resolution
Video Output:
- Simultaneous HDMI/VGA output at up to 1920 × 1080 resolution
Storage and Playback:
- One SATA interface (up to 6 TB capacity per HDD)
- 4/8/16-ch synchronous playback at up to 720p resolution
- Smart search for efficient playback
Smart Function:
- VQD (Video Quality Diagnostics)
Network & Ethernet Access:
- Hik Cloud P2P & HiDDNS (Dynamic Domain Name System) for easy network management
- One self-adaptive 10/100Mbps network interface

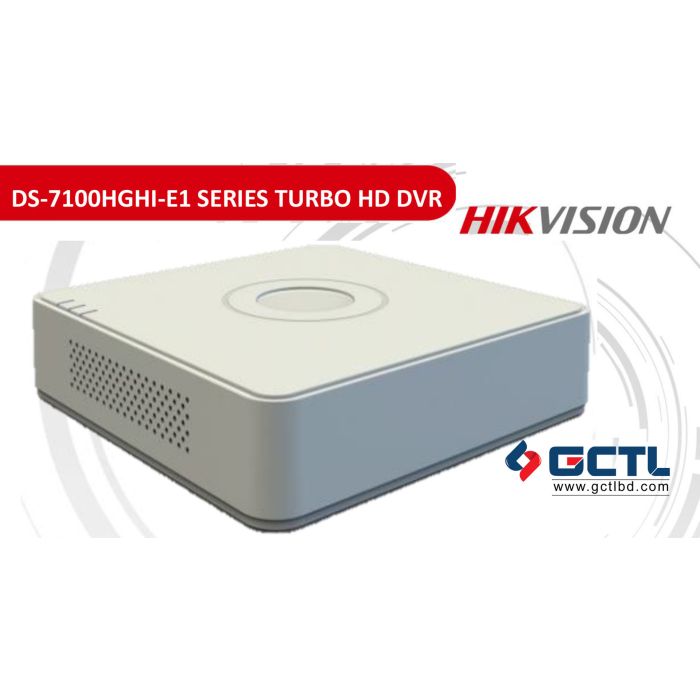

Hikvision DS-7108HGHI-E1-F1 DVR
Hikvision DVR Description:
Hikvision DS-7108HGHI-E1-F1 Bangladesh H.264 /H.264+& Dual-stream video compression • Support both HD-TVI /analog and AHD cc cameras with adaptive access • Full channel recording at up to 1080P lite resolution • HDMI and VGA output at up to 1920×1080P resolution • Long transmission distance over coax cable • Support 4/8/16-ch synchronous playback at 720P resolution.
• H.264 & Dual-stream video compression
• Support both HD-TVI and analog cameras with
adaptive access
• Full channel@720P resolution non real-time recording
• HDMI and VGA output at up to 1920×1080P
resolution
• Long transmission distance over coax cable
• Support up to 16-ch synchronous playback at 720P
resolution
|
Video/Audio Input |
|||||
|
Audio Input: |
1-ch |
||||
|
Video Compression: |
H.264 |
||||
|
Analog and HD-TVI video input: |
8-ch BNC interface (1.0Vp-p, 75 Ω) |
||||
|
Supported camera types: |
720p/25Hz, 720p/30Hz, CVBS |
||||
|
Video Input Interface: |
BNC (1.0 Vp-p, 75Ω) |
||||
|
Audio Compression: |
G.711u |
||||
|
Audio Input Interface: |
RCA (2.0 Vp-p, 1 kΩ) |
||||
|
Two-way Audio: |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
||||
|
Video/Audio Output |
|||||
|
HDMI/VGA Output: |
1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
||||
|
Recording resolution: |
720p/WD1/4CIF/VGA/CIF |
||||
|
Frame Rate: |
Main stream: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
||||
|
Video Bit Rate: |
32 Kbps ~ 4 Mbps |
||||
|
Stream Type: |
Video/Video&Audio |
||||
|
Two-way Audio: |
1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
||||
|
Audio Output: |
1-ch RCA(2.0 Vp-p, 1kΩ) |
||||
|
Audio Bit Rate: |
64kbps |
||||
|
Dual Stream: |
Support |
||||
|
Playback Resolution: |
720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
||||
|
Synchronous Playback: |
8-ch |
||||
|
Network management |
|||||
|
Remote connections: |
128 |
||||
|
Network protocols: |
TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP?, HTTPS |
||||
|
Hard Disk Driver |
|||||
|
Interface Type: |
1 SATA Interface |
||||
|
Capacity: |
Up to 6 TB capacity for each disk |
||||
|
External Interface |
|||||
|
Network Interface: |
1; 10M / 100M self-adaptive Ethernet interface |
||||
|
USB Interface: |
2 USB 2.0 Interfaces |
||||
|
General |
|||||
|
Power Supply: |
12V DC |
||||
|
Consumption: |
≤ 12W(Without hard disks) |
||||
|
Working Temperature: |
-10 oC ~+55 oC (14 oF ~ 131 oF) |
||||
|
Working Humidity: |
10% ~ 90% |
||||
|
Dimensions: |
200 × 200 × 45mm (7.9 × 7.9 × 1.8 inch) |
||||
|
Weight: |
≤ 0.8 kg / 1.8 lb(without hard disks) |
||||
