AVTECH 16ch HD-TVI Standalone dvr price bd

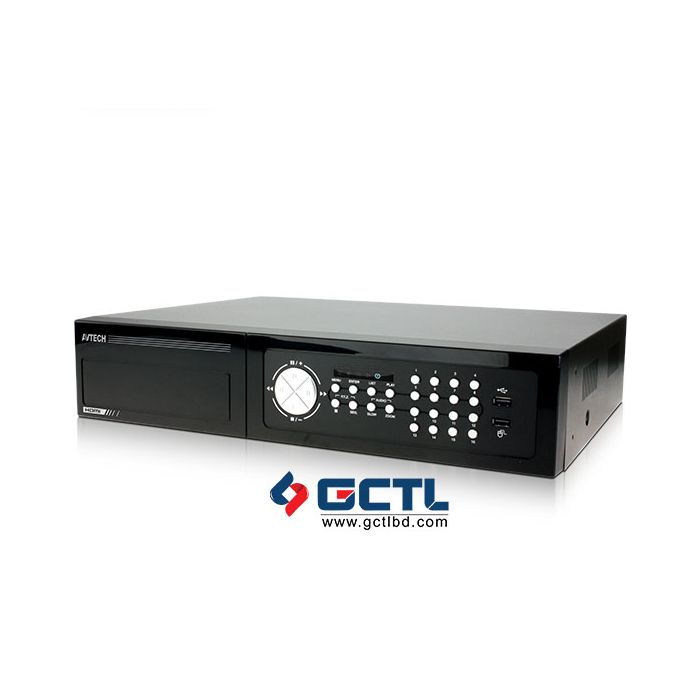

16CH HD CCTV DVR AVZ-215
Video System NTSC / PAL (auto detection)
Video Compression Format H.264
Video Signal AHD / TVI / 960H
Video Input (Composite video signal 1 Vp-p 75Ω BNC) 16 channels
Video Output BNC YES
VGA YES
HDMI YES
Record & Backup
Maximum Recording Rate 1080P 1920 x 1080 pixels with 240 IPS
720P 1280 x 720 pixels with 480 IPS
QHD 960 x 540 pixels with 480 IPS
|
Video |
|
|
Video System |
NTSC / PAL (auto detection) |
|
Video Compression Format |
H.264 |
|
Video Signal |
AHD / TVI / 960H |
|
Video Input |
16 channels (Composite video signal 1 Vp-p 75Ω BNC) |
|
Video Output (BNC) |
YES |
|
Video Output (VGA) |
YES (Output resolution up to 1600 x 1200) |
|
Video Output (HDMI) |
YES (Output resolution up to 1600 x 1200) |
|
Record & Backup |
|
|
Max. Recording Rate (1080P) |
1920 x 1080 pixel with 120 IPS |
|
Max. Recording Rate (720P) |
1280 x 720 pixel with 240 IPS |
|
Max. Recording Rate (QHD) |
960 × 576 pixels with 240 IPS |
|
Max. Recording Rate (Frame) |
704×576 pixels with 200 IPS |
|
Max. Recording Rate (CIF) |
352×288 pixels with 200 IPS |
|
Recording Mode |
Manual / Timer / Motion / Alarm / Remote |
|
Pre-alarm Recording |
YES |
|
Quick Search |
Time / Motion / Alarm |
|
Backup Device |
USB 2.0 flash drive / Network |
|
Audio |
|
|
Input |
4 audio inputs |
|
Output |
1 audio output |
|
General |
|
|
Hard Disk Storage |
Accommodates 3 x HDD capacity up to 4TB |
|
SATA Interface |
YES |
|
Image Quality Setting |
SUPER BEST / BEST / HIGH / NORMAL |
|
USB Mouse Control |
YES |
|
Motion Detection Area |
16 × 12 grids per channel |
|
Motion Detection Sensitivity |
3 adjustable parameters for accurate detection |
|
Event Notification |
Push Video / Push Status / FTP / E-Mail |
|
Picture Zoom |
2X digital zoom |
|
PTZ Control |
YES |
|
Alarm I/O |
8 inputs, 1 output |
|
IR Remote Control |
YES (IR receiver built-in) |
|
Key Lock (Password Protection) |
YES |
|
User Level |
Administrator & Operator |
|
Video Loss Detection |
YES |
|
Camera Title |
Spports up to 12 letters |
|
Video Adjustable |
Hue / Saturation / Contrast / Brightness |
|
Date Display Format |
YY/MM/DD, DD/MM/YY & MM/DD/YY |
|
Daylight Saving |
YES |
|
Operating Temperature |
10℃ ~ 40℃ (50℉~104℉) |
|
Power Source (±10%) |
DC 19V / 3.42A |
|
Dimensions (mm) |
430(W) × 90(H) × 326(D) |
|
Network |
|
|
Ethernet |
10/100 Base-T. Supports remote control and live view via Ethernet |
|
Network Protocol |
TCP/IP, PPPOE, DHCP and DDNS |
|
PC Surveillance |
|
|
Compatible Operating System |
Windows and MAC |
|
Compatible Program |
|
|
Web Browser |
Internet Explorer, Google Chrome & Safari |
|
CMS Lite |
24CH central management software for Windows OS |
|
Quick Time |
For both Windows and MAC operating systems |
|
Max. online users |
20 |
|
Web Transmitting Compression Format |
H.264 |
|
Network Live Audio |
YES |
|
Remote Independent Operation |
YES |
|
Remote Event Download & Playback |
YES |
|
Mobile Surveillance |
|
|
Compatible Devices |
iOS & Android devices |
|
Others |
|
|
EaZy Networking |
YES |
|
DCCS Support |
YES |
|
AVTECH Free DDNS Service |
YES |
|
Multiplex Operation |
Live display / record / playback / backup / network operations |
|
System Recovery |
System auto recovery after power failure |
