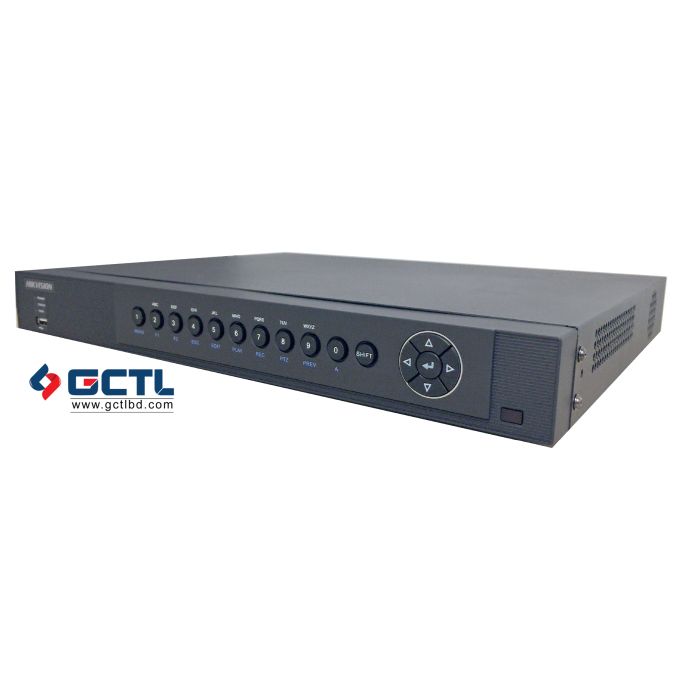

Hikvision DS-7200HUHI-Fx/N Series Turbo HD DVR
Short Descriptions:
H.264+ (Over 50 Percent More Efficient than H.264)
Turbo HD 3.0 Video at 3 MP (1920 x 1536) Supports
Third-Party Cloud Storage
Smart Search for Motion Event Playback
HDMI at 4K (3840×2160) *, VGA at 1920×1080
Supports Two Channels of IP Video, at 4 MP Resolution (2688 x 1520)
Multiple VCA Events
Extended Cable Distance
Hikevision DS-7200HUHI-Fx/N Series Turbo HD DVR
The Hikvision DS-72xxHUHI-Fx/N TurboHD DVR Series offers high HD-TVI resolution over existing coaxial and twisted pair (CAT5) cables. With Hikvision’s proprietary H.264+ video compression technology, enjoy up to 50 percent smaller video streams and storage requirements. Supports extended cable distances of 2,625 feet (800 meters) at 1080p over RG-6 cable. Available in 4-, 8-, and 16-channel models to fit any requirement. Internal SATA interface(s) (1 for DS-7204HUHI-F1/N, 2 for DS-7208HUHI-Fx/N and DS-7216HUHI-Fx/N) support 6 TB drives. VCA (Video Content Analysis) features include line cross, intrusion, and motion detection. Smart Search makes it quick and easy to find the action you are looking for, without having to sort through irrelevant video scenes. Other features include support for third-party cloud storage (Dropbox, Google Drive, and Microsoft OneDrive) and support for two additional channels of IP video, each at 4 MP resolution (2688 x 1520) for capturing maximum quality video
|
Video/Audio Input |
||
|
Audio input: |
4-ch |
|
|
Video Compression: |
H.264,H.264+ |
|
|
Analog and HD-TVI video input: |
8-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
|
|
Supported camera types: |
Support HDTVI input: 3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, |
|
|
Video Input Interface: |
BNC (1.0 Vp-p, 75Ω) |
|
|
Audio Compression: |
G.711u |
|
|
Audio Input Interface: |
4-ch, RCA (2.0 Vp-p, 1 KΩ) |
|
|
Two-way Audio: |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
|
|
Video/Audio Output |
||
|
CVBS Output: |
1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
|
|
HDMI/VGA Output: |
HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz |
|
|
Recording resolution: |
3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
|
|
Frame Rate: |
Main stream:3 MP@15fps;1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
|
|
Video Bit Rate: |
32 Kbps-10 Mbps |
|
|
Stream Type: |
Video/Video&Audio |
|
|
Two-way Audio: |
1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
|
|
Audio Output: |
1-ch RCA(Linear, 1kΩ) |
|
|
Audio Bit Rate: |
64kbps |
|
|
Dual Stream: |
Support |
|
|
Playback Resolution: |
3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
|
|
Synchronous Playback: |
8-ch |
|
|
Network management |
||
|
Remote connections: |
128 |
|
|
Network protocols: |
TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF |
|
|
Hard Disk Driver |
||
|
Interface Type: |
2 SATA Interfaces |
|
|
Capacity: |
Up to 6 TB capacity for each disk |
|
|
External Interface |
||
|
Network Interface: |
1; 10M / 100M / 1000M self-adaptive Ethernet interface |
|
|
USB Interface: |
1 USB 2.0 Interface & 1 USB 3.0 Interface |
|
|
Serial Interface: |
1; standard RS-485 serial interface, half-duplex |
|
|
Alarm Input: |
8-ch |
|
|
Alarm Output: |
4-ch |
|
|
General |
||
|
Power Supply: |
12V DC |
|
|
Consumption: |
≤ 20W(without hard disks) |
|
|
Working Temperature: |
-10 oC ~+55 oC (14 oF ~ 131 oF) |
|
|
Working Humidity: |
10% ~ 90% |
|
|
Dimensions: |
380 × 320 × 4 8 mm (1 5.0 × 12.6 × 1.9 inch) |
|
|
Weight: |
≤2 kg(4.4lb) |
|
