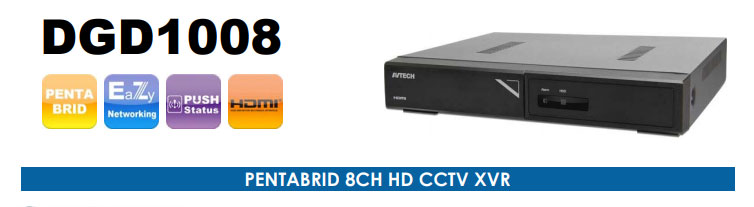

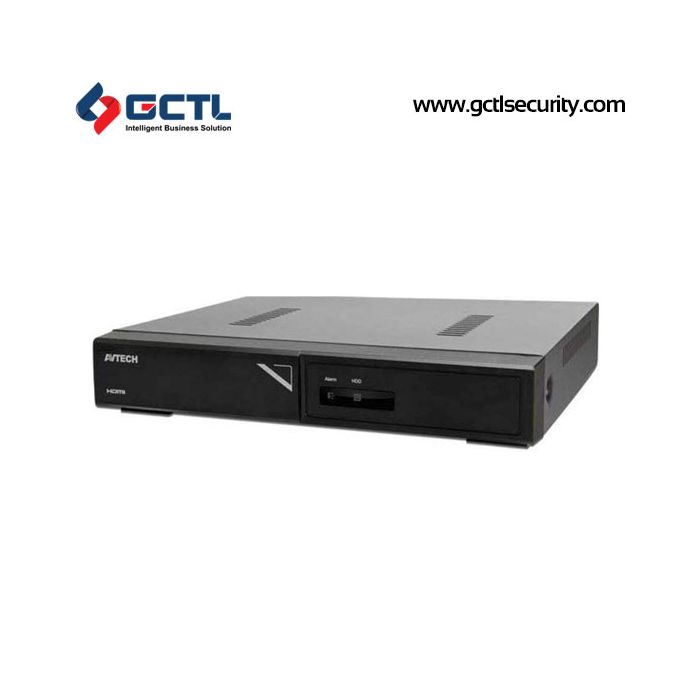

AVTECH DGD1008 PENTABRID 8CH HD CCTV XVR
• AVTECH DGD1008 PENTABRID 8CH HD CCTV XVR
• Brand: AVTECH
• Model: DGH1104
• Type: 8 Channel XVR
• Compression: H.264
• HDD: 1 SATA UPTO 10 TB
• Online: Eagle eye / CMS
• Video Signal : AHD / TVI/ CVI / 960H HDD
• Best XVR Price in Bangladesh
• Call for Discount / Price Match policy
AVTECH DGD1008 PENTABRID 8CH HD CCTV XVR
Cloud EaZy Networking available to connect this device to Internet automatically in three steps with our free mobile app, EagleEyes. Supports Analog HD / TVI / CVI / 960H video input, CMS Lite for 32 devices central management, Push Status to send instant notifications for system events, such as video loss or HDD data removal. Fully compatible with iOS and Android devices, and Internet Explorer on Windows operating system.
FEATURES:
- H.264 Compression Technology
- Free P2P Cloud EaZy Networking
- Pentabrid Video Input
- Video Backup
- One Ethernet Cable Solution
- Spot Monitor
- Push Video & Push Status
- Remote Surveillance
SPECIFICATIONS:
|
Video |
||
|
Video System |
NTSC / PAL (auto detection) |
|
|
Video Compression Format |
H.264 |
|
|
Video Signal |
IP / TVI / CVI / Analog HD / 960H |
|
|
Video Input |
8 pentabrid channels (IP / TVI / CVI / Analog HD / 960H), within which IP channels are up to 2 channels |
|
|
Video Input Interface |
Analog Mode |
Composite video signal 1 Vp-p 75Ω BNC |
|
IP Mode |
Ethernet, 10/100 Base-T |
|
|
Video Output |
BNC |
YES (Spot Monitor supported) |
|
VGA |
YES |
|
| HDMI | YES | |
|
Video Resolution |
Analog Mode |
Live & Playback: 1080P / 720P / QHD / 960H / Frame / Field / CIF Record**: 5MP / 4MP / 1080P / 720P / QHD / 960H / Frame / Field / CIF |
|
IP Mode |
Live & Playback: 1920 x 1080 / 1280 x 720 / 640 x 480 / 320 x 240 Record: 2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 640 x 480 / 320 x 240 |
|
|
Record & Backup |
||
|
Max. Recording Rate |
Analog Mode |
Up to 12 IPS @ 2592 x 1944 (5MP)** Up to 15 IPS @ 2560 x 1440 (4MP)** Up to 120 IPS @ 1920 x 1080 Up to 240 IPS @ 1280 x 720 |
|
IP Mode (2channels) |
Up to 12 IPS @ 2592 x 1944 (5MP) Up to 30 IPS @ 1920 x 1080 |
|
|
Recording Mode |
|
Manual / Timer / Motion / Alarm / Remote |
|
Playback Channel |
|
8CH |
|
Quick Search |
|
Time / Motion / Alarm search mode |
|
Backup Device |
|
USB 3.0 drive / Network |
|
Regular Backup |
|
YES (USB hard drive or FTP) |
|
Audio |
||
|
Audio Input |
1 audio input |
|
|
Audio Output |
1 audio output (Mono) |
|
|
External I/O |
||
|
RS485 |
YES |
|
|
Alarm Input |
8 |
|
|
Alarm Output |
1 |
|
|
Alarm Scenario |
YES |
|
|
General |
||
|
Hard Disk Storage |
14TB SATA HDD x 3 |
|
|
SATA Interface |
YES |
|
|
eSATA Interface |
YES |
|
|
Image Quality Setting |
SUPER BEST / BEST / HIGH / NORMAL |
|
|
USB Mouse Control |
YES |
|
|
Motion Detection Area |
16 × 12 grids per channel |
|
|
Motion Detection Sensitivity |
3 adjustable parameters for accurate detection |
|
|
Event Notification |
Push Video / Push Status / FTP / E-Mail |
|
|
Event Pop-up & Preview |
YES |
|
|
Scenario Setup |
YES |
|
|
Picture Zoom |
2X digital zoom |
|
|
PTZ Control |
YES |
|
|
Key Lock (Password Protection) |
YES |
|
|
User Level |
4 user levels for different access privilege |
|
|
Video Loss Detection |
YES |
|
|
RS485 |
YES |
|
|
Video Loss Detection |
YES |
|
|
Camera Title |
Supports up to 25 letters |
|
|
Video Adjustable |
Hue / Saturation / Contrast / Brightness |
|
|
Date Display Format |
YY/MM/DD, DD/MM/YY & MM/DD/YY |
|
|
Daylight Saving |
YES |
|
|
Power Source |
DC12V / 2A |
|
|
Operating Temperature |
10ºC ~ 40ºC (50ºF ~104ºF) |
|
|
Operating Humidity |
10% ~ 85% |
|
|
Dimensions(mm)** |
260(L) x 48(H) x 235.7(D) |
|
|
Net Weight (kg) |
1.2 |
|
|
Network |
||
|
Ethernet |
10/100 Base-T. Supports remote control and live view via Ethernet |
|
|
Network |
Protocol TCP/IP, PPPOE, DHCP and DDNS |
|
|
Remote Surveillance from PC |
||
|
Compatible Operating System |
Windows & MAC |
|
|
Compatible Program |
Windows Edge, Microsoft Internet Explorer, Google Chrome, Mozilla Firefox & Safari |
|
|
|
CMS Lite: 32CH central management software for Windows OS |
|
|
Max. online users |
20 |
|
|
Web Transmitting Compression Format |
H.264 |
|
|
Remote Live Audio |
YES |
|
|
Network Live Audio |
YES |
|
|
Remote Event Download & Playback |
YES |
|
|
Mobile Surveillance |
||
|
App |
EagleEyes |
|
|
Compatible Devices |
iOS & Android devices |
|
|
Push Video |
YES (8 channel) |
|
|
Push Status |
YES |
|
|
Others |
||
|
EaZy Networking |
YES |
|
|
Spot Monitor Support |
Call Monitor / Event Monitor / Live Monitor (Composite) |
|
|
DCCS Support |
YES |
|
|
AVTECH Free DDNS service |
YES |
|
|
Privacy Mask |
YES |
|
|
Multiplex Operation |
Live display / record / playback / backup / network operations |
|
|
System Recovery System |
auto recovery after power failure |
|
|
Optional Peripherals |
HDMI Matrix (HDM02) / USB Joystick (AVX102) |
|
XVR NVR DVR Price Range:
|
AVTECH 4 CHANNEL NETWORK VIDEO RECORDER |
11,500 BDT |
|
AVTECH 9 CHANNEL NETWORK VIDEO RECORDER |
17,000 BDT |
|
AVTECH 16 CHANNEL NETWORK VIDEO RECORDER |
21,100 BDT |
|
AVTECH 16 CHANNEL NETWORK VIDEO RECORDER |
35,000 BDT |
|
AVTECH 36 CHANNEL NETWORK VIDEO RECORDER |
50,000 BDT |
XVR NVR DVR Price in Bangladesh?
Germany Computer and Telecom Limited-GCTL offer Best Price in Bangladesh for any single need. We provide XVR NVR DVR within all available technologies.
What is our after-sale service System?
We offer 100% guarantee on our product after sales service. We provide one year service warranty free and we provide life time service just for service fee.
