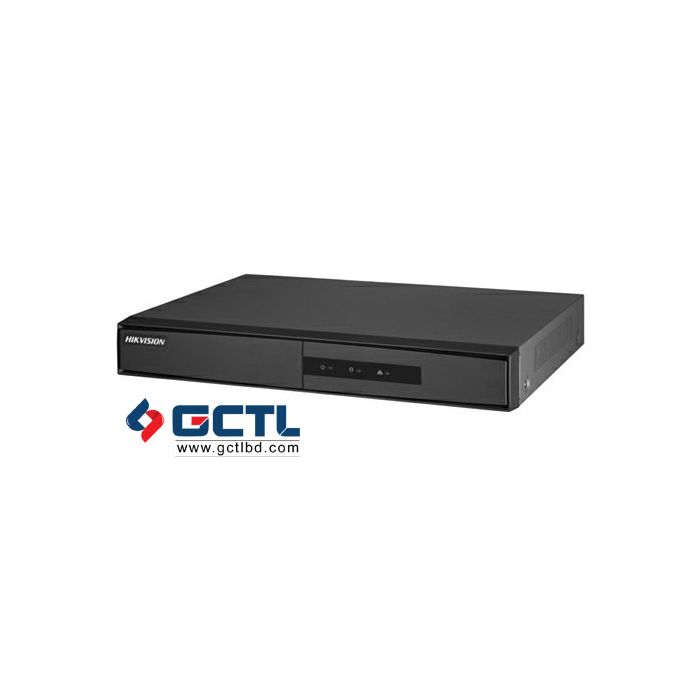

HikVision DS-7204/08/16HGHI-F2 CCTV Camera DVR
HikVision HD CCTV DVR In Bangladesh:
H.264 /H.264+& Dual-stream video compression
Support both HD-TVI /analog and AHD cameras with adaptive access
Full channel recording at up to 1080P lite resolution
HDMI and VGA output at up to 1920×1080P resolution
Long transmission distance over coax cable
Support 4/8/16-ch synchronous playback at 720P resolution
HikVision DS-7204/08/16HGHI-F2 CCTV Camera DVR
Video Input and Transmission:
- Connectable to Turbo HD/HDCVI/AHD/CVBS signal input
- Up to 2-ch 1080p IP cameras input
- Long distance transmission over UTP and coaxial cable: max. 1200m for 720p Turbo HD signal
Compression and Recording:
- One-key enables H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
- Supports 1080p lite of all channels and when enabled, the image effect is similar with 1080p
|
Video/Audio Input |
|||||
|
Audio Input: |
1-ch |
||||
|
Video Compression: |
H.264,H.264+ |
||||
|
Analog Video Input: |
16-ch |
||||
|
Analog and HD-TVI video input: |
1080p25, 1080p30, 720p25, 720p30 |
||||
|
IP Video Input: |
2-ch |
||||
|
IP Video Input Resolution: |
Up to 2 MP resolution |
||||
|
Audio Compression: |
G.711u |
||||
|
Two-way Audio: |
1-ch RCA(2.0Vp-p, 1kΩ) |
||||
|
Video/Audio Output |
|||||
|
HDMI/VGA Output: |
1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
||||
|
Encoding resolution: |
When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF |
||||
|
Frame Rate: |
Main stream: |
||||
|
Video Bit Rate: |
32 Kbps ~ 4 Mbps |
||||
|
Stream Type: |
Video/Video&Audio |
||||
|
Audio Output: |
1-ch RCA(Linear, 1kΩ) |
||||
|
Audio Bit Rate: |
64kbps |
||||
|
Dual Stream: |
Support |
||||
|
Synchronous Playback: |
16-ch |
||||
|
Network management |
|||||
|
Remote connections: |
128 |
||||
|
Network protocols: |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
||||
|
Hard Disk Driver |
|||||
|
Interface Type: |
1 SATA Interface |
||||
|
Capacity: |
Up to 6 TB capacity for each disk |
||||
|
External Interface |
|||||
|
Network Interface: |
1; 10M / 100M self-adaptive Ethernet interface |
||||
|
USB Interface: |
2 USB 2.0 Interfaces |
||||
|
General |
|||||
|
Power Supply: |
12 VDC |
||||
|
Consumption: |
≤ 20 W |
||||
|
Working Temperature: |
-10 ºC to +55 ºC (14 ºF to 131 ºF) |
||||
|
Working Humidity: |
10% to 90% |
||||
|
Dimensions: |
260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
||||
|
Weight: |
≤ 1.2 kg (2.6 lb) |
||||
