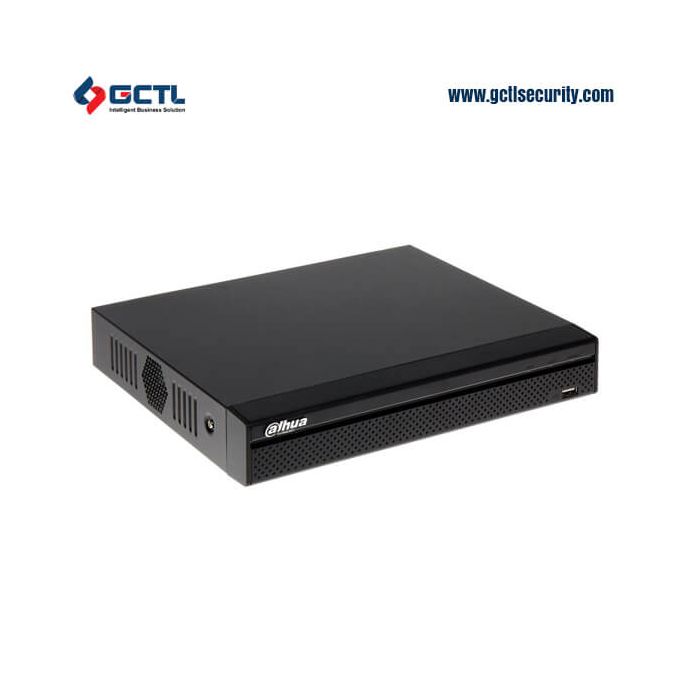

Dahua XVR1A04/08 Channel Penta-brid Digital Video Recorder
Features and Key points :
• Model: XVR1A08
• H.265+/H.265 dual-stream video compression
• Long transmission distance over coax cable
• Internal HDD SATA: Up to 6TB
• Supports HDCVI/AHD/TVI/CVBS/IP
• Installation with expert Technician
• Best price in Bangladesh
• Call for Discount / Price Match policy
Buy Hikvision DS-2CE11D0T-PIRL 3.6MM 2MP PIR HD Bullet Camera with best Price in Bangladesh
DAHUA XVR1A08 Digital Video Recorder supports HDCVI/AHD/TVI/CVBS/IP video inputs with H.264 video compression. This 8 Channel penta-brid recorder has maximum full HD resolution with 20/40Mbps Incoming Bandwidth. The storage capacity of 1TB to 6TB provides full freedom of usability. Long Distance Transmission The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 800m for 1080P and 1200m for 720P. Smart SearchThis function helps you get more motion detect video during a short time through drawing a region when playback. It is very useful when an emergency occurs.Perfect Image QualityHigh performance chip provides perfect image quality with better color reproduction.P2PMonitor at anytime and anywhere. Easily and conveniently mange the device.
Use high quality video recorder for the ultimate security system available at Germany Computer & Telecom Ltd. Preserve your precious recording in this best priced XVR. Order online and have the delivery any place in Bangladesh.
Key Features of Dahua XVR1A04/08 Channel Penta-brid Digital Video Recorder
- Main Processor: Embedded Processor
- Operating System: Embedded LINUX
- Resolution: 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
- Internal HDD: 1 SATA Port, up to 6TB capacity
- Analog Camera Input: 8 Channel, BNC
- IP Camera Input: 8CH: 8+2, each channel up to 5MP
- Audio In/Out: 1/1, RCA
- Display Resolution: 1920×1080, 1280×1024, 1280×720, 1024x768
- Display Interface: 1 HDMI ,1 VGA
- Network Interface: 1 RJ-45 Port (100M)
- Dimensions: 197mm×192mm×41mm
- Net Weight: 0.55kg
Dahua XVR1A04/08 Penta-brid Specification:-
|
System |
|
|
Main Processor |
Embedded Processor |
|
Operating System |
Embedded LINUX |
|
Video and Audio |
|
|
Analog Camera Input |
4/8 Channel, BNC |
|
HDCVI Camera |
1080P@25/30fps, 720P@25/30fps |
|
AHD Camera |
1080P@25/30, 720P@25/30fps |
|
TVI Camera |
1080P@25/30, 720P@25/30fps |
|
CVBS Camera |
PAL/NTSC |
|
IP Camera Input |
4CH: 4+1, each channel up to 2MP 8CH: 8+2, each channel up to 5MP |
|
Recording |
|
|
Video Compression |
H.264 |
|
Resolution |
1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF |
|
Record Rate |
Main Stream: 4CH: All channel 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps) 8CH: the 1st channel 1080N/720P(1~25/30fps), others 1080N(1~12fps)/720P(1~15fps); 960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps) Sub steram: 4CH: CIF/QCIF (1~15fps) 8CH: CIF/QCIF (1~7fps) |
|
Interface |
1 HDMI ,1 VGA |
|
Resolution |
1920×1080, 1280×1024, 1280×720, 1024x768 |
|
Multi-screen Display |
When IP extension mode not enabled: 4CH: 1/4 8CH: 1/4/8/9 When IP extension mode enabled: 4CH: 1/4/6 8CH: 1/4/8/9/16 |
|
Network |
|
|
Smart Phone |
iPhone, iPad, Android |
|
Playback and Backup |
|
|
Playback |
4CH: 1/4 8CH: 1/4/9 |
|
Search Mode |
Time /Date, Alarm, MD and Exact Search (accurate to second) |
|
Backup Mode |
USB Device/Network |
|
Storage |
|
|
Internal HDD |
1 SATA Port, up to 6TB capacity |
|
eSATA |
N/A |
|
Auxiliary Interface |
|
|
USB |
2 USB 2.0 |
|
RS232 |
N/A |
|
RS485 |
N/A |
|
Electrical |
|
|
Power Supply |
DC12V/1.5A |
|
Power Consumption (Without HDD) |
<10W |
|
Construction |
|
|
Dimensions |
Cooper 1U, 197mm×192mm×41mm (7.8“×7.6”×1.6“) |
|
Net Weight (without HDD) |
0.55kg (1.2lb) |
|
Gross Weight |
1kg (2.2lb) |
|
Installation |
Desktop installation |
|
Environmental |
|
|
Operating Conditions |
-10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH |
|
Storage Conditions |
-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
|
Third-party Support |
|
|
Third-party Support |
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
|
Certifications |
|
|
Certifications |
FCC: Part 15 Subpart B |
|
CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 |
|
|
UL: UL 60950-1 |
|
What is the Price Range of Dahua XVR1A04/08 Channel Penta-brid Digital Video Recorder in Bangladesh?
The Hikvision Dahua XVR1A04/08 Channel Penta-brid Digital Video Recorder price range in Bangladesh is from BDT 4,650.00 to BDT 6,250.00. All Kind of Dahua AHD are available on Germany Computer and Telecom Ltd.
Brands of CCTV Surveillance Camera that's we Provide:
Our diverse Team of IT professionals will Allow You to extend your Service and Installation services for all the Significant vendors and manufacturers of CCTV Surveillance Camera So in the Event That You have assigned the task to Set up the Intruder Alarm System, Then you'll be no compromising on the kind of hardware you want but Will Soon be free to choose. Some of the vendors that we have the proficiency in installing gear from include.
| • Hikvision | • AVtech | • Varito | • Dahua |
| • Mepesen | • Axis | • Bosch | • Jovision |
HD Cameras Connection Diagram
HD video signals transfer over coax cables to the DVR (Digital Video Recorder). HD Camera are powered by plugging in the power supply. The DVR then converts the analog signal to digital, compresses it then stores it on a Hard Disk. The information is built into the DVR to handle scheduling, motion detection and digital zooming. To view the footage, monitors are connected to the DVR or you could use an internal network for viewing on PCs. DVR's can also be set up to broadcast over the internet and set up to be password protected. The video for all of the cameras are transmitted as one stream, one IP address.
