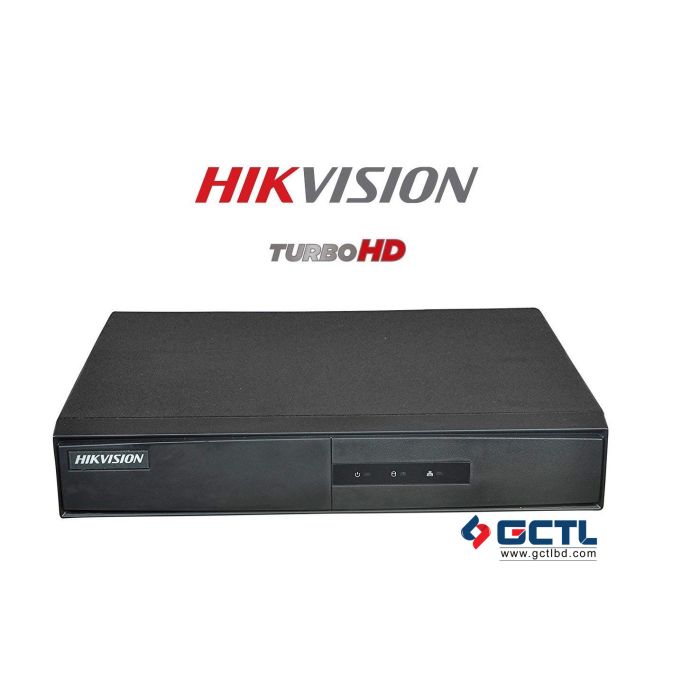

HIKVISION DS-7204/08/16HGHI-F2 Turbo HD 720P DVR
Description:
- HIKVISION 8-CH Turbo HD 720P DVR,
- Connectable to HD-TVI & analog cameras,
- HDMI & VGA outputs at up to
- 1920×1080P resolution,
- 1 SATA interface for HDD with
- up to 6TB capacity
Warranty - 01 Year
- Hikvision DS-7104HGHI-F1 720P (1MP) 4Channel Turbo HD DVR 1Pcs.
- H.264 & Dual-stream video compression. Support HD-TVI /analog and AHD cameras with adaptive access.
- Full channel@720P resolution non real-time recording. HDMI and VGA output at up to 1920×1080P resolution.
- Long transmission distance over coax cable. Support 4ch synchronous playback at 720P resolution.
Hikvision Surveillance Security Systems
- Hikvision CCTV For Home Security
- Wide range of Turbo HD Cameras
- With Latest HD Digital Video Recorders
- Hikvision defines the surveillance security for domestic purpose
Home Surveillance Security System: Hikvision allows Security Solutions for Home Security
Also enables latest technology in Security Cameras & DVR. Easy to install and use for non-technical people: Can Connect to HDMI / VGA Compatible Monitors Easily Compatible to HDMI as well as VGA Monitors. Also Easy to Monitor over PC and Laptops With IVMS-4200 Software. Also Hikvision allows Ethernet Network Connectivity. So Cameras Can view in LAN Networks Also Can be Monitor & Control Factory plants in Industry CCTV Cameras Used For Monitoring the Factory Plants 24 Hours Monitor Restriction areas of Plants From that any emergency can control by Surveillance system.Enables Cloud Storage Capacity: Hikvision Allows Cloud Storage on Internet name as Hik-Connect From that All CCTV Recording Videos can be viewed from Cloud at any Place of the WorldCan View Recording on Any Mobile at Any Place: Hikvision allows Mobile View at any Place with Hik-Connect App This App having in both Platform IOS and Android With this App Live View and Playback at any Place on any Mobile
DS-7204/08/16HGHI-F2
Video Input and Transmission
l Connectable to Turbo HD/HDCVI/AHD/CVBS signal input
l Up to 2-ch 1080p IP cameras input
l Long distance transmission over UTP and coaxial cable: max. 1200m for 720p Turbo HD signal
Compression and Recording
l One-key enables H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
l Supports 1080p lite of all channels and when enabled, the image effect is similar with 1080p
|
Video/Audio Input |
|||||
|
Audio Input: |
1-ch |
||||
|
Video Compression: |
H.264,H.264+ |
||||
|
Analog Video Input: |
8-ch |
||||
|
Analog and HD-TVI video input: |
1080p25, 1080p30, 720p25, 720p30 |
||||
|
IP Video Input: |
2-ch |
||||
|
IP Video Input Resolution: |
Up to 2 MP resolution |
||||
|
Audio Compression: |
G.711u |
||||
|
Two-way Audio: |
1-ch RCA(2.0Vp-p, 1kΩ) |
||||
|
Video/Audio Output |
|||||
|
HDMI/VGA Output: |
1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
||||
|
Encoding resolution: |
When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF |
||||
|
Frame Rate: |
Main stream: |
||||
|
Video Bit Rate: |
32 Kbps ~ 4 Mbps |
||||
|
Stream Type: |
Video/Video&Audio |
||||
|
Audio Output: |
1-ch RCA(Linear, 1kΩ) |
||||
|
Audio Bit Rate: |
64kbps |
||||
|
Dual Stream: |
Support |
||||
|
Synchronous Playback: |
8-ch |
||||
|
Network management |
|||||
|
Remote connections: |
128 |
||||
|
Network protocols: |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
||||
|
Hard Disk Driver |
|||||
|
Interface Type: |
1 SATA Interface |
||||
|
Capacity: |
Up to 6 TB capacity for each disk |
||||
|
External Interface |
|||||
|
Network Interface: |
1; 10M / 100M self-adaptive Ethernet interface |
||||
|
USB Interface: |
2 USB 2.0 Interfaces |
||||
|
General |
|||||
|
Power Supply: |
12 VDC |
||||
|
Consumption: |
≤ 12 W |
||||
|
Working Temperature: |
-10 ºC to +55 ºC (14 ºF to 131 ºF) |
||||
|
Working Humidity: |
10% to 90% |
||||
|
Dimensions: |
260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
||||
|
Weight: |
≤ 1 kg (2.2 lb) |
||||
