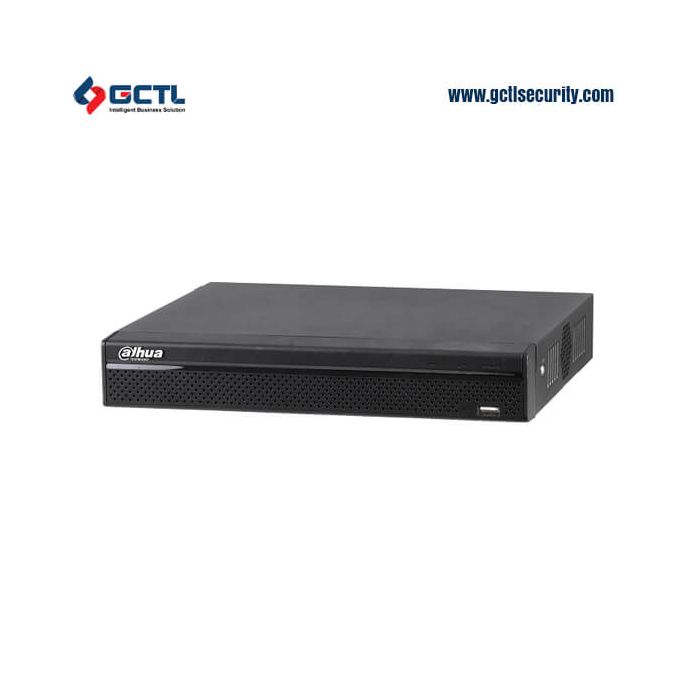

Dahua DHI-XVR-4116HS – 16 Channel Penta-brid HD Digital Video Recorder
Dahua 16CH HDCVI DVR
Brand: Dahua
Product Code: Dahua 16CH HDCVI DVR
Availability: In Stock
Tribird: Support HDCVI/ Analog & IP Camera
All Channel @ 1080P Recording
HDMI & VGA Out Put Up to 1080P
Support 1 HDD(Up to 6 TB)
Dahua DHI-XVR-4116HS – 16 Channel Penta-brid HD Digital Video Recorder
DHI-XVR-4116 HS Support HDCVI/CVBS/HDTVI/AHD video inputs
>Max 5/10/18 channels IP camera inputs,each channel up to 5MP(2MP for 4ch)
>Max 20/40/72Mbps Incoming Bandwidth
>Long transmission distance over coax cable
>Support 1 SATA HDD, up to 6TB >Embedded processor
DHI-XVR-4116HS Specifications
|
System |
||
|
Main Processor |
Embedded Processor |
|
|
Operating System |
Embedded LINUX |
|
|
Display |
||
|
Interface |
1 HDMI ,1 VGA |
|
|
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768 |
|
|
Multi-screen Display |
4CH: 1/4/6 8CH: 1/4/8/9/16 16CH: 1/4/8/9/16/25 |
|
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
|
Video Detection and Alarm |
||
|
Trigger Events |
Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
|
|
Video Detection |
Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
|
|
Alarm input |
N/A |
|
|
Relay Output |
N/A |
|
|
Tracking Trigger Event |
N/A |
|
|
Playback and Backup |
||
|
Playback |
4CH: 1/4 8CH: 1/4/9 16CH: 1/4/9/16 |
|
|
Search Mode |
Time /Date, Alarm, MD and Exact Search (accurate to second) |
|
|
Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
|
|
Backup Mode |
USB Device/Network |
|
|
Storage |
||
|
Internal HDD |
1 SATA Port, up to 6TB capacity |
|
|
HDD Mode |
Single |
|
|
eSATA |
N/A |
|
|
Auxiliary Interface |
||
|
Front Cover |
N/A |
|
|
USB |
2 USB Ports (2 USB 2.0) |
|
|
RS232 |
N/A |
|
|
RS485 |
1 Port, for PTZ Control |
|
|
Third-party Support |
||
|
Third-party Support |
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
|
|
Audio and Video |
||
|
HDCVI Camera Input |
4/8/16 Channel |
|
|
IP Camera Input |
4+1: each channel up to 2MP 8+2/16+2:each channel up to 5MP |
|
|
Audio In/Out |
1/1 |
|
|
Two-way Talk |
Reuse audio in/out, RCA |
|
|
Recording |
||
|
Compression |
H.264 |
|
|
Resolution |
1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF |
|
|
Record Rate |
Main Stream: 4CH:1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps) 8/16CH:1080N(12fps)/720P(15fps)/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps) Sub steram:D1/CIF/QCIF(1~25/30fps) |
|
|
Bit Rate |
1Kbps ~ 6144Kbps Per Channel |
|
|
Record Mode |
Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
|
|
Record Interval |
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
|
|
Network |
||
|
Interface |
1 RJ-45 Port (100M) |
|
|
Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server,P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc.) |
|
|
Max. User Access |
128 users |
|
|
Smart Phone |
iPhone, iPad, Android |
|
|
Interoperability |
ONVIF 2.4.1, CGI Conformant |
|
|
Electrical |
||
|
Power Supply |
DC12V/2A |
|
|
Power Consumption |
<10W (Without HDD) |
|
|
Environmental |
||
|
Operating Conditions |
-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
|
|
Storage Conditions |
0°C ~ +50°C (+32°F ~ +122°F), 0 ~ 90% RH |
|
|
Construction |
||
|
Dimensions |
Compact 1U, 260×236×48mm(10.2″×9.3″×1.9″) |
|
|
Net Weight |
0.75kg ( 1.7lb) (without HDD) |
|
|
Gross Weight |
1.5kg (3.3lb) |
|
|
Installation |
Desktop installation |
|
|
Certifications |
||
|
Certifications |
FCC: Coming soon |
|
|
UL: Coming soon |
||
