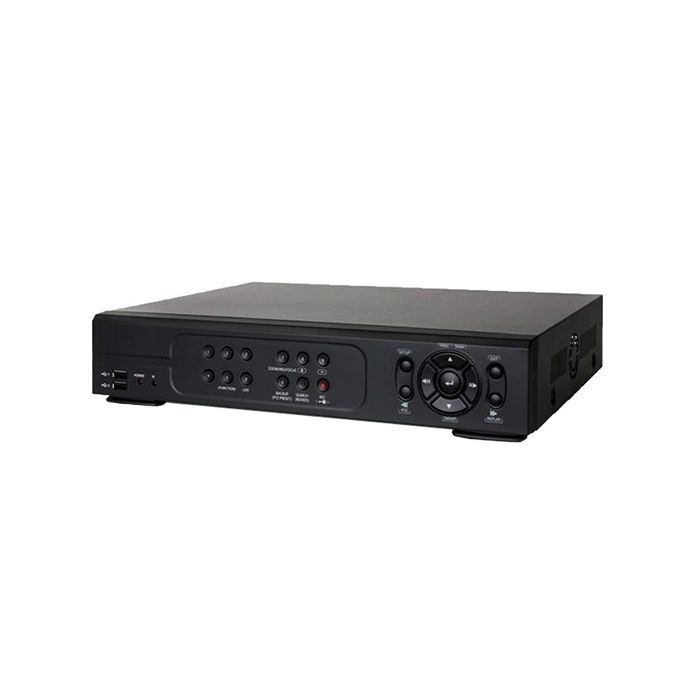

VARITO 4 Channel HD DVR Provider in Bangladesh
VARITO 4 Channel HD DVR in Bangladesh
4 Channel AHD 1080P H.264 DVR
Built-in VGA and HDMI Outputs
AHD 1080/720P/Analog/IP720/1080P switchable
Build in IP camera motion recording, IP PTZ control function
Dual Video Streaming
2 Way Audio Capabilities
1 Internal SATA HDD up to 4TB
Easy operating and configuration GUI
Trouble free DDNS setup
Fully Control DVR via Network
Free CMS support E-map
4 Channel HD Digital Video Recorder Provider in Bangladesh
The 4 Channel HD Digital Video Recorder (DVR) is a professional-grade security recording solution designed for homes, offices, retail outlets, and small commercial facilities in Bangladesh. Supporting up to four HD analog cameras, it delivers crystal-clear 1080p recording, smooth playback and flexible remote viewing through mobile and web apps.
Built with H.265 video compression, the DVR minimizes bandwidth and storage use while maintaining high-quality video output. It is compatible with AHD, TVI, CVI, and CVBS cameras, providing complete flexibility for both new and upgraded CCTV installations.
Leading suppliers such as Germany Computer & Telecom Ltd. (GCTL Security) provide reliable 4 Channel HD DVRs from trusted brands like Hikvision, Dahua, Uniview and VARITO, backed by local warranty, installation and after-sales support.
Benefits
High-Definition Surveillance: Records every detail in full HD 1080p resolution for accurate evidence and monitoring.
Multi-Brand Compatibility: Works with most analog HD and IP cameras, allowing flexible system upgrades.
Remote Access Anywhere: View live or recorded video from smartphone, tablet, or PC through mobile apps.
Smart Storage Efficiency: H.265 compression saves up to 50 % more space while maintaining image clarity.
Easy Installation: Plug-and-play configuration with HDMI and VGA outputs for any monitor.
Reliable Recording: 24/7 operation with motion-detection alerts and scheduled backup options.
Cost-Effective Solution: Ideal for small to medium businesses, retail stores, and residences needing affordable HD security.
Local Support: Available across Bangladesh with installation, technical service and warranty from GCTL Security.
Technical Specification :
|
Model |
LDSR-04FDMA |
|
|
Video |
Input |
IP-CAM: up to 2-CH 1080P and 2-CH 720P |
|
Analog: up to 4-CH AHD 1080P |
||
|
Main monitor |
HDMI, with resolution 1920x1080,VGA, with resolution 1920x1080,BNC,1Vp-p/75ohm |
|
|
Call monitor |
BNC x 1, 1Vp-p/75ohm, Share with main monitor |
|
|
Loss detection |
Yes |
|
|
Motion detection |
Yes, with configurable detection area & sensitivity |
|
|
Privacy Mask |
Yes |
|
|
Audio |
Input |
2 RCA-jack connector, line-in level (100mV-1Vrms) |
|
Output |
HDMI, 1 RCA-jack connector, line-out level ( |
|
|
Record |
Compression |
IP-CAM: H.264 Analog: H.264 High Profile / ADPCM |
|
Max frame rate & Resolution |
IP-CAM: 60fps@1080p, 120/100fps@720p, Analog: 40fps@1080P, 80fps@1080h/720P, 120/100fps@960H, Up to 20Mbps incoming bandwidth for IP-CAM |
|
|
Watermark |
Yes |
|
|
Mode |
Manual/Schedule/Alarm/Motion |
|
|
Pre-record time |
0~10 seconds |
|
|
Post-record time |
0~60 minutes |
|
|
Display |
Resolution |
HDMI/VGA: 1920*1080, NTSC: 720*480, PAL: 720*576 |
|
Split windows |
1~4 |
|
|
Frame rate |
Up to 30 (NTSC) / 25 (PAL) IPS per display window |
|
|
Digital Zoom |
X2, X4 |
|
|
Sequential switch |
User adjustable |
|
|
Playback |
Max frame rate & Resolution |
IP-CAM: 60fps@1080p, 120/100fps@720p, Analog: 40fps@1080P, 80fps@1080h/720P, 120/100fps@960H |
|
Search |
Smart Search, Date/time, Camera, Alarm, Video Loss & Motion |
|
|
Operation |
Play, Fast Forward, Backward, Pause, Stop, Snapshot, etc. |
|
|
Remote I.E. and HEM can also Print, Snapshot |
||
|
Storage |
HDD |
1 set of 3.5” SATA HDD Failure detection supported Privacy law supported |
|
HDD Extension |
X |
|
|
Partitions: |
Configurable alarm partitions size, Configurable auto-overwrite or not |
|
|
Backup |
2 USB 2.0 ports for USB disk drives, Self playback for backup files |
|
|
Self playback for backup files |
||
|
Alarm |
Input |
4 contact or TTL/CMOS signal, polarity selectable |
|
Output |
1 Normally Open or Normally Closed relay output |
|
|
Buzzer |
Yes |
|
|
Triggered by |
Sensor input, Video loss, & Motion |
|
|
Event log |
Yes |
|
|
Network |
Ethernet |
1 RJ-45 10/100BaseT Ethernet connector (Dual Video Streaming) |
|
USB 3G gongle |
Yes |
|
|
Web |
Remote setup, monitoring, backup & alarm notification, remote software upgrade, Support Win7, WinVista, WinXP and Win2000, 1 I.E/Firefox for multiple DVRs (64 windows) |
|
|
DDNS |
Free DDNS Server |
|
|
E-mail/Push Alarm |
Alarm notification to stationary or mobile devices |
|
|
Remote Station |
PC, mobile phone, PDA or tablet PC |
|
|
Remote Users |
Up to 8 users simultaneously |
|
|
FTP |
Alarm video/audio file storage |
|
|
Audio |
Bi-directional |
|
|
Bandwidth |
TCP/IP type dynamic sliding window control |
|
|
Protocol |
TCP/IP, HTTP, PPPoE, DHCP, DDNS, FTP, TSP |
|
|
Control/POS/GPS |
I/R |
1 I/R remote controller for up to 4 hybrid DVRs with optional extension |
|
RS-232 |
X |
|
|
RS-485 |
2-pin for keyboard/PTZ control |
|
|
Setup |
Local |
On screen setup via keypad, I/R remote controller, USB mouse, and/or RS-485 keyboard |
|
Remote |
Setup & upload via Windows application software |
|
|
Multi-lingual |
Yes |
|
|
Reliability |
System recovery |
Auto power on after power loss recovery |
|
Watch Dog Timer |
Yes |
|
|
Timer |
Built-in real time clock |
|
|
Security |
4 levels, up to 18 accounts protection with authentication key for remote access |
|
|
Weights & Measures |
Dimension & Weight |
319 x 209 x 50mm, 2.0 KG( without HDD) |
|
Power |
Source |
+12VDC |
|
Consumption |
36W Max. |
|
|
Operating Temperature |
0oC ~ +45oC |
|
