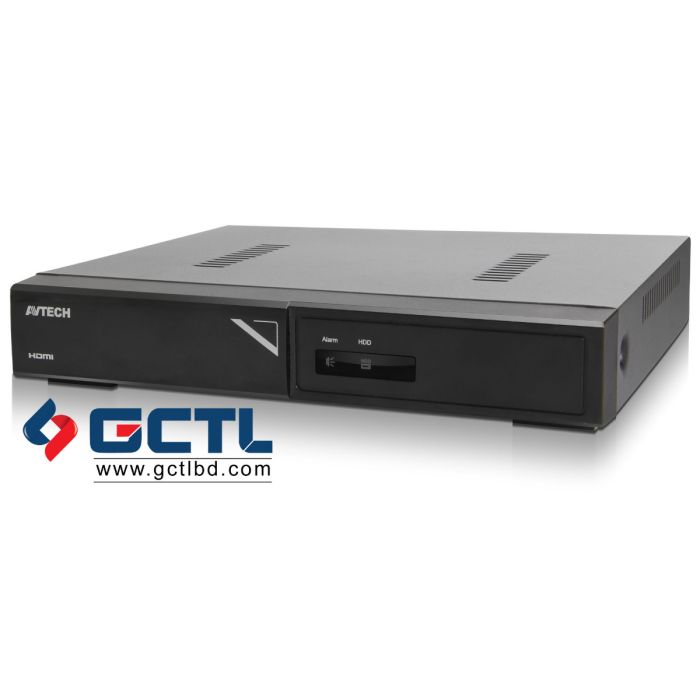

AVTECH DGD1304 TRIBRID 4CH Full HD 1080p DVR
|
Manufacturer part number |
DGD1304 |
|
Brand |
AVTECH |
|
Technology |
Analogue + AHD + TVI + CVI |
|
Max. Cameras |
4 |
|
Hard Drive Size |
None |
AVTECH DGD1304 TRIBRID 4CH Full HD 1080p DVR
CCTV cameras are one of the key elements in securing our daily lives. We execute the mission to develop superior quality CCTV cameras for security. We also provide the most price-competitive high-end DVRs that are both easy to install and offer reliable means to protect your properties and lives. Any Security Solutions offer the most innovative security products including multiplexing DVRs, Network Cameras, Speed Dome Cameras, Keyboard Controllers, High Resolution Cameras, Water-proof IR Cameras and Outdoor Cameras, With our C.M.S. (Central Management System) all the security products are seamlessly integrated together achieving the "Best Cost and Top Performance CCTV for all over Bangladesh.
4 Channel DVR supports AHD / TVI / CVI up to 1080p and Analogue up to 960H, Free P2P Cloud EaZy Networking, Push Status - Active Event Notification with EagleEyes App, Fully compatible with iOS and Android devices, Supports IOS and Windows remote viewing, H.264 compression, 50FPS recording at 1080p / 100FPS recording at 720p, 1 SATA interface, USB port for backup
|
Video System |
NTSC / PAL (auto detection) |
|
Video Compression Format |
H.264 |
|
Video Signal |
Analog HD / TVI / CVI / 960H |
|
Video Input |
4 channels (Composite video signal 1 Vp-p 75Ω BNC) |
|
Video Output |
BNC (Main / Call selectable), VGA, HDMI |
|
Video Resolution |
1080P / 720P / QHD / 960H / Frame / Field / CIF |
|
Max. Recording Rate |
50FPS @ 1080p / 100FPS @ 720p |
|
Recording Mode |
Manual / Timer / Motion / Remote |
|
Pre-alarm Recording |
YES |
|
Playback Channel |
4CH |
|
Quick Search |
Time / Motion search mode |
|
Backup Device |
USB 2.0 drive / Network |
|
Regular Backup |
YES |
|
Audio Input |
1 audio input |
|
Audio Output |
1 audio output (Mono) |
|
Hard Disk Storage |
6TB SATA HDD x 1 |
|
SATA Interface |
YES |
|
Image Quality Setting |
SUPER BEST / BEST / HIGH / NORMAL |
|
USB Mouse Control |
YES |
|
Motion Detection Area |
16 × 12 grids per channel |
|
Motion Detection Sensitivity |
3 adjustable parameters for accurate detection |
|
Event Notification |
Push Status / FTP / E-Mail |
|
Picture Zoom |
2X digital zoom |
|
IR Remote Control |
YES (IR receiver built-in) |
|
Key Lock (Password Protection) |
YES |
|
User Level |
4 user levels for different access privilege |
|
Video Loss Detection |
YES |
|
Camera Title |
Supports up to 25 letters |
|
Video Adjustable |
Hue / Saturation / Contrast / Brightness |
|
Date Display Format |
YY/MM/DD, DD/MM/YY & MM/DD/YY |
|
Daylight Saving |
YES |
|
Power Source (±10%) |
DC12V / 2A |
|
Operating Temperature |
10ºC ~ 40°C |
|
Operating Humidity |
10% ~ 85% |
|
Dimensions |
260 x 48 x 235.7mm (LxHxD) |
|
Net Weight |
1.2Kg |
|
Ethernet |
10/100 Base-T |
|
Network Protocol |
TCP/IP, PPPoE, DHCP, DDNS, P2P |
|
Compatible Operating System |
Windows & Mac |
|
Compatible browsers |
Internet Explorer, Google Chrome, Safari |
|
Compatible Software |
CMS Lite (bundled), Quicktime |
|
Max. Online Users |
20 |
|
Web Compression |
H.264 |
|
Network Live Audio |
YES |
|
Remote Independent Operation |
YES |
|
Remote Event Download & Playback |
YES |
|
App |
EagleEyes |
|
Compatible Devices |
IOS & Android |
|
Push Status |
Yes |
|
EaZy Networking |
YES |
|
DCCS Support |
YES |
|
AVTECH Free DDNS Service |
YES |
|
Privacy Mask |
YES |
|
Multiplex Operation |
Live display / record / playback / backup / network |
|
System Recovery |
System auto recovery after power failure |
|
Optional peripherals |
HDMI matrix / USB joystick |
