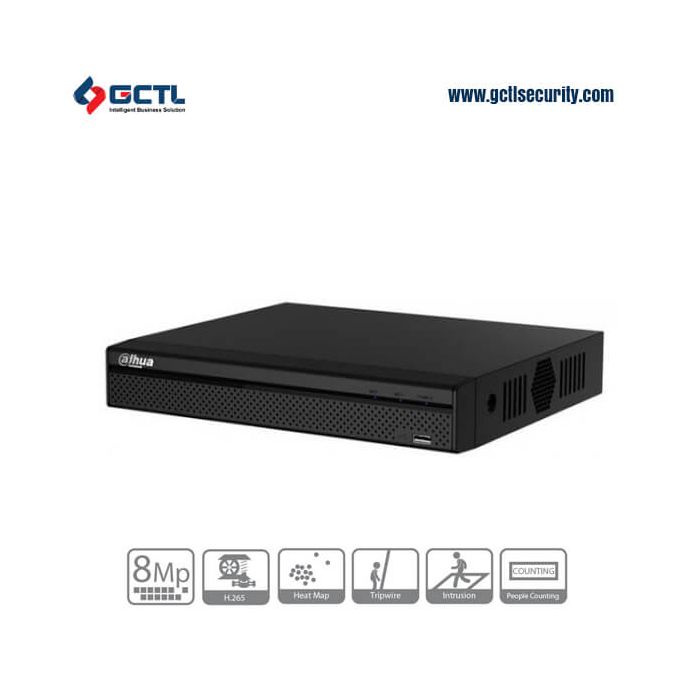

DAHUA XVR5104HS 4Channel DVR ( 5 MP Supported )
Features and Key points :
• Dahua XVR5104HS
• Support HDCVI/Analog/AHD/HDTVI IP Video input
• Embedded processor
• H.265+ video compression,Support up to 5 MP Camera
• Support HDCVI/ AHD/TVI/CVBS/IP video inputs
• Long transmission distance over coax cable
• Support 1 SATA HDD, up to 6TB
• Installation with expert Technician
• Best price in Bangladesh
• Call for Discount / Price Match policy
Buy DAHUA XVR5104HS 04 with best Price in Bangladesh
Dahua, as a technology leader, is always the first ever developed the shining new technology in the security industry. Cooper Series XVR designed as a full compatibility product, XVR is able to provide end user the simplicity of analog system, namely lower system cost, simple installation and use of existing cable. HDCVI/AHD/TVI/CVBS/IP ,IPC Input Supported, Long Distance Transmission , Smart Search, Perfect Image Quality , P2P and with the adoption of Smart H.265+/H.265, the series improves encoding efficiency, saving on bandwidth/storage costs. It is ideal for a wide range of civil applications such as retail store, home protection and so on.
Key Features of XVR5104HS
- DAHUA 04 CH PENTA - BRID DVR (1080P)
- H.265+ video compression
- Support up to 5 MP Camera
- Penta – brid : Support HDCVI/ HDTVI/ AHD Analog & IP Camera
- All Channel @ 1080P Recording
- HDMI & VGA Out Put Up to 1080P
- Support 1 HDD (Up to 10 TB)
DAHUA XVR5104HS Specification
|
System |
|
|
Main Processor |
Embedded Processor |
|
Operating System |
Embedded LINUX |
|
Video and Audio |
|
|
Analog Camera Input |
4 Channel, BNC |
|
HDCVI Camera |
4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
|
AHD Camera |
5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps |
|
TVI Camera |
5MP, 3MP, 1080P@25/30, 720P@25/30fps |
|
CVBS Camera |
PAL/NTSC |
|
IP Camera Input |
4+2 Channel, each channel up to 5MP |
|
Audio In/Out |
1/1, RCA |
|
Two-way Talk |
Reuse audio in/out, RCA |
|
Recording |
|
|
Compression |
H.264+/H.264 |
|
Resolution |
4MP, 3MP, 1080P, 720P, 960H, D1, CIF, QCIF |
|
Bit Rate |
1Kbps ~ 6144Kbps Per Channel |
|
Record Mode |
Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
|
Record Interval |
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
|
Display |
|
|
Interface |
1 HDMI, 1 VGA |
|
Resolution |
2560×1440, 1920×1080, 1280×1024, 1280×720, 1024×768 |
|
Multi-screen Display |
When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6 |
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
Network |
|
|
Interface |
1 RJ-45 Port (100M) |
|
Max. User Access |
128 users |
|
Smart Phone |
iPhone, iPad, Android |
|
Interoperability |
ONVIF 2.42, CGI Conformant |
|
Video Detection and Alarm |
|
|
Trigger Events |
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
|
Video Detection |
Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis |
|
Alarm input |
N/A |
|
Relay Output |
N/A |
|
Playback and Backup |
|
|
Playback |
1/4 |
|
Search Mode |
Time /Date, Alarm, MD and Exact Search (accurate to second) |
|
Backup Mode |
USB Device/Network |
|
Storage |
|
|
Internal HDD |
1 SATA Port, up to 8TB capacity |
|
eSATA |
N/A |
|
Auxiliary Interface |
|
|
USB |
2 USB Ports (2 USB 2.0) |
|
RS232 |
N/A |
|
RS485 |
1 Port, for PTZ Control |
|
Electrical |
|
|
Power Supply |
DC12V/2A |
|
Power Consumption |
<10W (Without HDD) |
Special Functions
Smart H.265+Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras. HDCVI/AHD/TVI/CVBS/IPAuto-detect The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient. IPC Input SupportedThe XVR1B16 suppports up to 6MP IPC input. Coaxial Audio/Upgrade/AlarmThe integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation. |
Long Distance TransmissionThe HDCVI system supports long distance transmission over coaxial cable and UTP, max. 800m for 1080P and 1200m for 720P.Smart SearchThis function helps you get more motion detect video during a short time through drawing a region when playback. It is very useful when an emergency occurs. Perfect Image QualityHigh performance chip provides perfect image quality with better color reproduction. P2PMonitor at anytime and anywhere. Easily and conveniently mange the device. |
DVR Connection Diagram
HD video signals transfer over coax cables to the DVR (Digital Video Recorder). HD Camera are powered by plugging in the power supply. The DVR then converts the analog signal to digital, compresses it then stores it on a Hard Disk. The information is built into the DVR to handle scheduling, motion detection and digital zooming. To view the footage, monitors are connected to the DVR or you could use an internal network for viewing on PCs. DVR's can also be set up to broadcast over the internet and set up to be password protected. The video for all of the cameras are transmitted as one stream, one IP address.
What is our after-sale service System?
We offer 100% guarantee on our product after sales service. We provide one year service warranty free and we provide life time service just for service fee.
What is the price of DAHUA XVR5104HS 04 in Bangladesh?
The latest price of DAHUA XVR5104HS 04 in Bangladesh is 6,500৳. You can buy the DAHUA XVR5104HS 04 at best price from our website or visit any of our showrooms.
