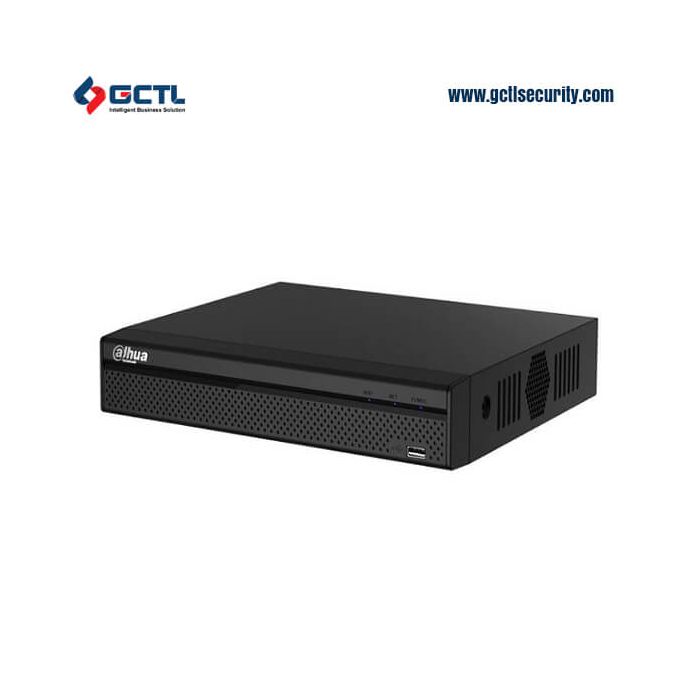

Dahua DH-XVR4104HS 4 Channel DVR
Features and Key points :
• Dahua XVR4104
• Support HDCVI/Analog/AHD/HDTVI IP Video input
• Embedded processor
• H.264 video compression
• Support HDCVI/ AHD/TVI/CVBS/IP video inputs
• Max 5/10/18 channels IP camera inputs
• Long transmission distance over coax cable
• Support 1 SATA HDD, up to 6TB
• Installation with expert Technician
• Best price in Bangladesh
• Call for Discount / Price Match policy
Buy Dahua DH-XVR4104HS 4 Channel DVR with best Price in Bangladesh
With the surveillance operators pursuing to HD/UHD which further adds the storage and transmission cost, HDCVI H.265+/H.265 has been released to incredibly decrease the required bitrate while ensuring the video quality in realizing high resolution surveillance such as 4MP/4K. The Lite Series is designed for high cost performance and quality. The range offers a great solution for users facing budget constraints who both require quality and performance. And with the adoption of Smart H.265+/H.265, the series improves encoding efficiency, saving on bandwidth/storage costs, and significantly reducing the Total Cost of Ownership (TCO).
Key Features Dahua DH-XVR4104HS
- Main Processor: Embedded Processor
- Operating System: Embedded LINUX
- Resolution: 1080N, 720P, 960H, D1, CIF
- Internal HDD: 1 SATA Port, up to 6TB capacity
- Analog Camera Input: 4 Channel, BNC
- IP Camera Input: 4+1, each channel up to 2MP
- Audio In/Out: 1/1, RCA
- Display Resolution: 1920×1080, 1280×1024, 1280×720
- Display Interface: 1 HDMI ,1 VGA
- Network Interface: 1 RJ-45 Port (100M)
- Dimensions: 260×236×48mm
Dahua DH-XVR4104HS Specification:
|
System |
|
|
Main Processor |
Embedded Processor |
|
Operating System |
Embedded LINUX |
|
Video and Audio |
|
|
Analog Camera Input |
4 Channel, BNC |
|
HDCVI Camera |
1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
|
AHD Camera |
1080P@25/30, 720P@25/30fps |
|
TVI Camera |
1080P@25/30, 720P@25/30fps |
|
CVBS Camera |
PAL/NTSC |
|
IP Camera Input |
4+1, each channel up to 2MP |
|
Audio In/Out |
1/1, RCA |
|
Two-way Talk |
Reuse audio in/out, RCA |
|
Recording |
|
|
Video Compression |
H.265+/H.265/H.264+/H.264 |
|
Resolution |
1080N, 720P, 960H, D1, CIF |
|
Record Rate |
Main Stream: 1080N/720P/960H/D1/CIF (1~25/30fps) Sub stream:CIF (1~15fps) |
|
Record Interval |
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
|
Audio Compression |
AAC(only for the 1st channel), G.711A, G.711U, PCM |
|
Audio Sample Rate |
8KHz, 16 bit Per Channel |
|
Audio Bit Rate |
64Kbps Per Channel |
|
Display |
|
|
Interface |
1 HDMI ,1 VGA |
|
Resolution |
1920×1080, 1280×1024, 1280×720 |
|
Multi-screen Display |
When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6 |
|
Network |
|
|
Interface |
1 RJ-45 Port (100M) |
|
Smart Phone |
iPhone, iPad, Android |
|
Alarm input |
N/A |
|
Backup Mode |
USB Device/Network |
|
Storage |
|
|
Internal HDD |
1 SATA Port, up to 6TB capacity |
|
eSATA |
N/A |
|
Auxiliary Interface |
|
|
USB |
2 USB 2.0 |
|
RS232 |
N/A |
|
RS485 |
1 Port, for PTZ Control |
|
Electrical |
|
|
Power Supply |
DC12V/1.5A |
|
Power Consumption (without HDD) |
<10W |
Special Functions
Smart H.265+Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras. HDCVI/AHD/TVI/CVBS/IPAuto-detect The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient. IPC Input SupportedThe XVR1B16 suppports up to 6MP IPC input. Coaxial Audio/Upgrade/AlarmThe integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation. |
Long Distance TransmissionThe HDCVI system supports long distance transmission over coaxial cable and UTP, max. 800m for 1080P and 1200m for 720P.Smart SearchThis function helps you get more motion detect video during a short time through drawing a region when playback. It is very useful when an emergency occurs. Perfect Image QualityHigh performance chip provides perfect image quality with better color reproduction. P2PMonitor at anytime and anywhere. Easily and conveniently mange the device. |
HD Cameras Connection Diagram
HD video signals transfer over coax cables to the DVR (Digital Video Recorder). HD Camera are powered by plugging in the power supply. The DVR then converts the analog signal to digital, compresses it then stores it on a Hard Disk. The information is built into the DVR to handle scheduling, motion detection and digital zooming. To view the footage, monitors are connected to the DVR or you could use an internal network for viewing on PCs. DVR's can also be set up to broadcast over the internet and set up to be password protected. The video for all of the cameras are transmitted as one stream, one IP address.
