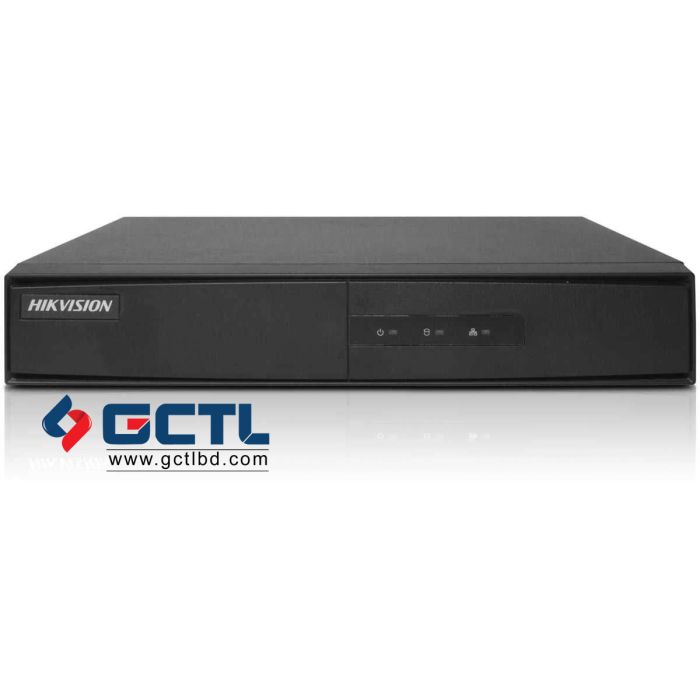

Hikvision DS-7204HGHI-F1 4-CH Turbo HD 720P DVR
Brand: Hikvision
Product Code: HIKVISION DS-7204HGHI-F1
Availability: In Stock
Interface: 1 HDMI,1 VGA
Resolution: 1920×1080
Support: 1 HDD
Hikvision DS-7204HGHI-F1 4CH Turbo HD DVR
The Hikvision DS-7204HGHI-F1 4-Channel Turbo HD 720P DVR is a high-performance video recorder designed for small to medium surveillance systems. It supports analog, HD-TVI, AHD, CVI, and IP cameras, offering maximum flexibility and easy integration. With H.264 video compression, 720P real-time recording, and remote access capabilities, this DVR ensures clear video footage and efficient storage management.
Ideal for homes, offices, retail shops, and small businesses, the DS-7204HGHI-F1 provides reliable performance, easy setup, and long-term durability, making it a top choice for secure, cost-effective video surveillance in Bangladesh.
Key Features
-
4-Channel Video Input: Supports up to 4 cameras for comprehensive surveillance coverage.
-
HD 720P Resolution: Delivers clear, detailed video playback and recording.
-
H.264+ Compression Technology: Saves bandwidth and storage while maintaining video quality.
-
Hybrid Compatibility: Works with HD-TVI, AHD, CVI, CVBS, and IP cameras.
-
Remote Monitoring: Access live video anytime through mobile apps and web browsers.
-
Smart Search & Playback: Quickly find recorded events with intelligent video tools.
-
HDMI & VGA Output: Supports high-definition display for live and recorded footage.
-
Easy Storage Expansion: Supports large-capacity SATA HDD for extended recording.
Technical Specifications:
|
Video/Audio Input |
|||||
|
Audio Input: |
1-ch |
||||
|
Video Compression: |
H.264,H.264+ |
||||
|
Analog Video Input: |
4-ch |
||||
|
Analog and HD-TVI video input: |
1080p25, 1080p30, 720p25, 720p30 |
||||
|
IP Video Input: |
1-ch |
||||
|
Audio Compression: |
G.711u |
||||
|
Two-way Audio: |
1-ch RCA(2.0Vp-p, 1kΩ) |
||||
|
Video/Audio Output |
|||||
|
HDMI/VGA Output: |
1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
||||
|
Encoding resolution: |
When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF |
||||
|
Frame Rate: |
Main stream: |
||||
|
Video Bit Rate: |
32 Kbps ~ 4 Mbps |
||||
|
Stream Type: |
Video/Video&Audio |
||||
|
Audio Output: |
1-ch RCA(Linear, 1kΩ) |
||||
|
Audio Bit Rate: |
64kbps |
||||
|
Dual Stream: |
Support |
||||
|
Synchronous Playback: |
4-ch |
||||
|
Network management |
|||||
|
Remote connections: |
32 |
||||
|
Network protocols: |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS |
||||
|
Hard Disk Driver |
|||||
|
Interface Type: |
1 SATA Interface |
||||
|
Capacity: |
Up to 6 TB capacity for each disk |
||||
|
External Interface |
|||||
|
Network Interface: |
1 ~ 10M / 100M self-adaptive Ethernet interface |
||||
|
USB Interface: |
2 USB 2.0 Interfaces |
||||
|
General |
|||||
|
Power Supply: |
12 VDC |
||||
|
Consumption: |
≤ 8 W |
||||
|
Working Temperature: |
-10 ºC to +55 ºC (14 ºF to 131 ºF) |
||||
|
Working Humidity: |
10% to 90% |
||||
|
Dimensions: |
260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
||||
|
Weight: |
≤ 1 kg (2.2 lb) |
||||
