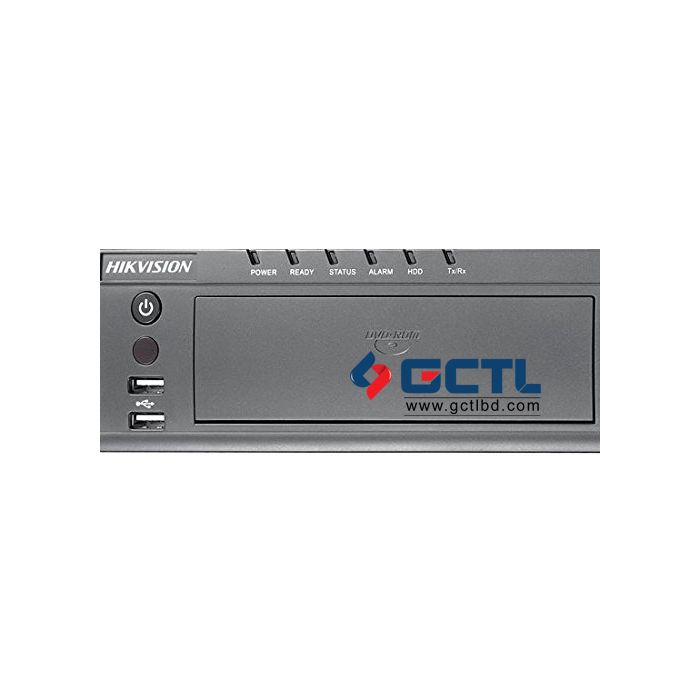

Hikvision DS-7316HWI-SH 16 Channel DVR

Video/Audio Input

Audio Input:

4-ch

Video Compression:

H.264

Analog Video Input:

8-ch

PAL/NTSC Adaptive:

Support

Video Input Interface:

BNC (1.0 Vp-p, 75Ω)

Audio Compression:

G.711u

Audio Input Interface:

RCA (2.0 Vp-p, 1 kΩ)

Two-way Audio:

1-ch RCA(2.0Vp-p, 1kΩ)

Video/Audio Output

VGA Output:

1-ch, resolution:
1920×1080P/60Hz,1280×1024/60Hz,1280×720/60Hz, 1024×768/60Hz

CVBS Output:

2-ch (1 Main Video Out+1 Spot Video Out),
BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704×576, NTSC: 704×480

HDMI2 Output:

1-ch, resolution:
1920×1080P /60 Hz, 1280×1024 /60 Hz,1280×720 /60 Hz, 1024×768 /60 Hz.

Frame Rate:

25 fps (P) / 30 fps (N)

Video Bit Rate:

32 Kbps ~ 3072 Kbps, or user defined (Max. 3072 Kbps)

Stream Type:

Channel 1-4: Video, Video & Audio;
Other channels: Video

Audio Output:

2-ch RCA(Linear electrical level, 600Ω)

Audio Bit Rate:

64kbps

Dual Stream:

Support

Synchronous Playback:

8-ch

Hard Disk Driver

Interface Type:

4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs

Capacity:

Up to 4TB capacity for each disk

e-SATA Interface:

1 eSATA interface

External Interface

Network Interface:

1 RJ45 10M/100M/1000M adaptive Ethernet Interface

USB Interface:

3 USB2.0 interfaces

Serial Interface:

1RS-485 interface, 1 RS-232 interface, 1 RS-485 keyboard interface

Alarm Input:

8-ch

Alarm Output:

4-ch

General

Power Supply:

100 ~ 240 VAC, 5A, 50~60Hz

Consumption:

≤ 30W (without hard disk
or DVD-R/W)

Working Temperature:

-10 °C ~ + 55 °C

Working Humidity:

10% ~ 90%

Chassis:

19-inch rack-mounted 1.5 U chassis

Dimensions:

445(W) × 390(D) × 70(H) mm

Weight:

≤ 5kg (without hard disk or DVD-R/W)
