Hikvision DS-8116HFI-ST CCTV DVR Price in BD

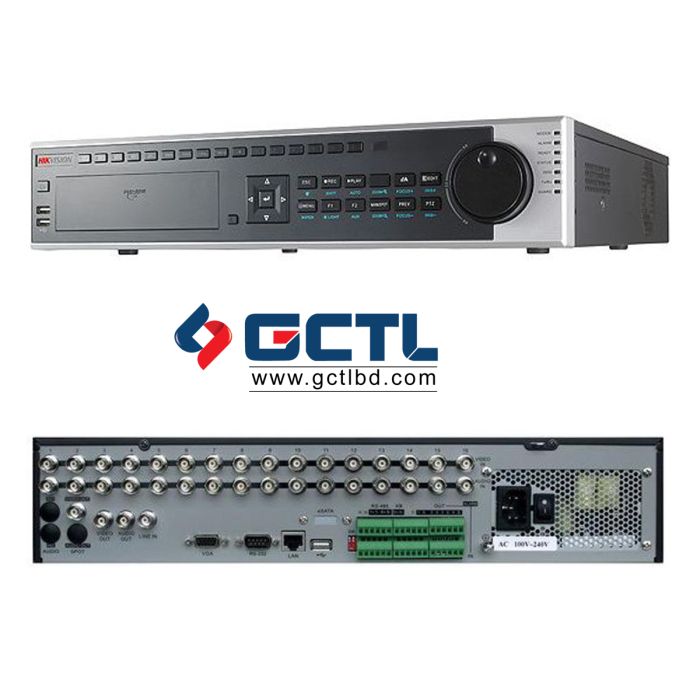

Hikvision DS-8116HFI-ST CCTV DVR

Hikvision DS-8116HFI-ST Specifications

Video compression

H.264

Analog video input

16-ch, BNC(1.0Vp-p, 75 Ohms), PAL / NTSC self adaptive

Audio compression

OggVorbis

Audio input

16-ch, BNC (2.0 Vp-p, 1 kOhms)

Voice talk input

1-ch, BNC (2.0 Vp-p, 1 kOhms

HDMI output

1-ch, resolution: 1920x1080P /60 Hz,1920x1080P /50 Hz, 1600x1200 /60 Hz, 1280x1024 /60 Hz, 1280x720 /60 Hz,1024x768 /60 Hz,

VGA output

1-ch, resolution: 1920x1080P /60 Hz,1600x1200 /60 Hz, 1280x1024 /60 Hz, 1280x720 /60 Hz,1024x768 /60 Hz

CVBS output

1-ch, BNC (1.0 Vp-p, 75 Ohms), resolution: PAL: 704x576, NTSC: 704x480

Video spot output

1-ch, BNC (1.0 Vp-p, 75 Ohms), resolution: PAL: 704x576, NTSC: 704x480

Encoding resolution

4CIF/ 2CIF / CIF / QCIF

Frame rate

25 fps (P) /30 fps (N)

Video bitrate

32 Kbps-2048 Kbps, or user defined (Max. 8192 Kbps)

Audio output

2-ch, BNC (Linear, 600Ohms)

Audio bitrate

16 Kbps

Dual-stream

Support

Stream type

Video, Video & Audio

Playback resolution

4CIF / 2CIF / CIF / QCIF

Synchronous playback

16-ch

SATA

8 SATA interfaces

eSATA

1 eSATA interface

Hard Drive Capacity

Up to 4TB capacity for each disk

Network interface

1x RJ45 10M / 100M / 1000M self-adaptive ethernet interface

Serial interface

1x RS-232 interface (for parameters configuration, maintenance, transparent channel);1x RS-485 interface (for PTZ control);1x RS-485 keyboard interface (for special keyboard control)

USB interface

2x USB2.0

Alarm in

Alarm out

Power supply

100-240 VAC, 6.3A, 50-60Hz

Consumption

=45W

Working temperature

-10 to 55 deg. C / 14 to 131 deg. F

Working humidity

10 - 90%

Chassis

19" rack-mounted 2U chassis

Dimensions (W x D x H)

17.52 x 18.5 x 3.54" / 44.50 x 46.99 x 8.99cm

Weight

= 8kg / 17.64lbs (without hard disk or DVD-R/W )

• H.264 video compression
• 4CIF resolution real time recording
• HDMI and VGA output at 1920×1080P resolution
• Dual stream
• 4/8/16-ch Synchronous Playback
• Smart searching for the motion event when playing back
• HDD quota management
• SADP(IP Finder) ,FTP,NTP,DHCP protocols
