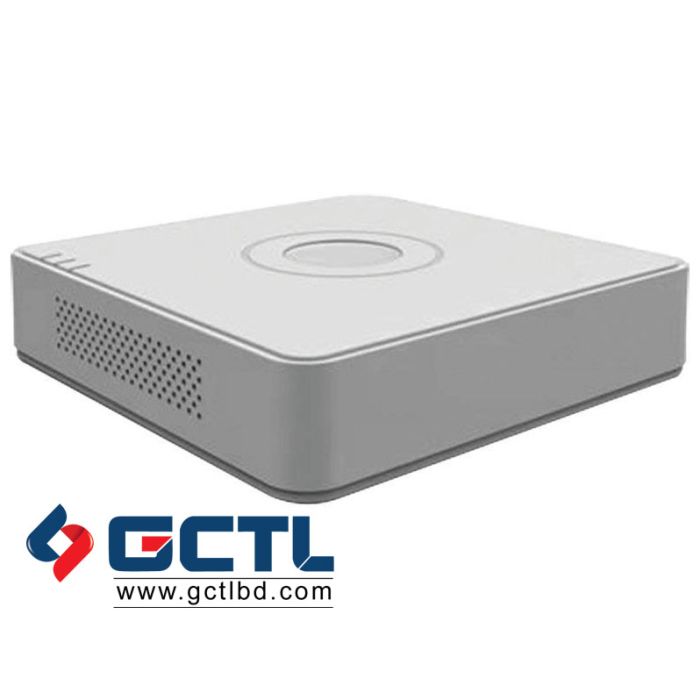

HIKVISION DS-7104HGHI-F1 4-CH Turbo HD 720P DVR
HIKVISION DS-7104HGHI-F1 4CH Turbo HD 720P DVR
Brand: HIKVISION DVR
Product Model: HIKVISION DS-7104HGHI-F1
Country of Origin: Germany
Manufacture From: China
Interface: 1 HDMI, 1 VGA
Resolution: 1920×1080
Support: 1 HDD (Up to 6 TB)
HIKVISION DS-7104HGHI-F1 4-CH Turbo HD 720P DVR
The HIKVISION DS-7104HGHI-F1 4-Channel Turbo HD DVR is an affordable and reliable solution for small-scale video surveillance systems. Designed to deliver high-definition 720P recording, it supports multiple video signal inputs including HD-TVI, AHD, CVI, and CVBS, ensuring full compatibility with existing analog cameras.
Featuring H.264+ compression technology, it significantly reduces bandwidth and storage requirements without compromising video quality. The device includes HDMI and VGA outputs up to 1080P, allowing clear live viewing and playback. With support for a 6TB hard drive, it provides ample storage for extended recording periods.
This DVR integrates seamlessly with Hik-Connect, enabling real-time remote access from smartphones or PCs perfect for home, office, or retail monitoring. Its compact, fanless design ensures quiet, energy-efficient operation, making it an ideal choice for users seeking quality surveillance at a budget-friendly price.
Technical Specification
|
Video/Audio Input |
||||
|
Audio Input: |
1-ch |
|||
|
Video Compression: |
H.264,H.264+ |
|||
|
Analog and HD-TVI video input: |
4-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
|||
|
Supported camera types: |
Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz |
|||
|
Video Input Interface: |
BNC (1.0 Vp-p, 75Ω) |
|||
|
Audio Compression: |
G.711u |
|||
|
Audio Input Interface: |
RCA (2.0 Vp-p, 1 kΩ) |
|||
|
Two-way Audio: |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
|||
|
Video/Audio Output |
||||
|
HDMI/VGA Output: |
1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
|||
|
Recording resolution: |
When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; |
|||
|
Frame Rate: |
Main stream: |
|||
|
Video Bit Rate: |
32 Kbps-6 Mbps |
|||
|
Stream Type: |
Video/Video&Audio |
|||
|
Audio Output: |
1-ch RCA(Linear, 1kΩ) |
|||
|
Audio Bit Rate: |
64kbps |
|||
|
Dual Stream: |
Support |
|||
|
Playback Resolution: |
3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
|||
|
Synchronous Playback: |
4-ch |
|||
|
Network management |
|||||
|
Remote connections: |
128 |
||||
|
Network protocols: |
TCP/IP, PPPoE, DHCP, Hik Cloud P2P,DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS,ONVIF |
||||
|
Hard Disk Driver |
|||||
|
Interface Type: |
1 SATA Interface |
||||
|
Capacity: |
Up to 6 TB capacity for each disk |
||||
|
External Interface |
|||||
|
Network Interface: |
1; 10M / 100M self-adaptive Ethernet interface |
||||
|
USB Interface: |
2 USB 2.0 Interfaces |
||||
|
General |
|||||
|
Power Supply: |
12V DC |
||||
|
Consumption: |
≤ 8W(without hard disks) |
||||
|
Working Temperature: |
-10 oC ~+55 oC (14 oF ~ 131 oF) |
||||
|
Working Humidity: |
10% ~ 90% |
||||
|
Chassis: |
Mini 1U chassis |
||||
|
Dimensions: |
200 × 200 × 45 mm |
||||
|
Weight: |
≤0.8 kg(4.4lb) |
||||
