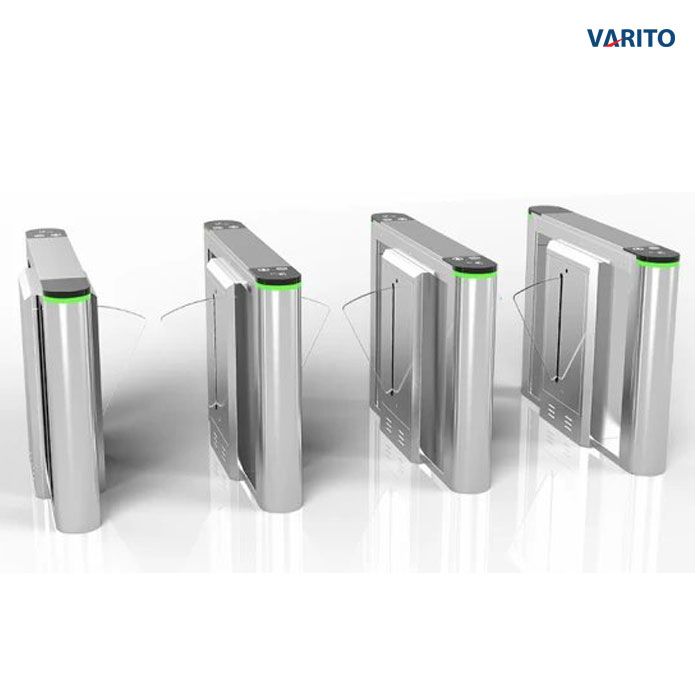

Wide Lane Security Infrared Flap Barrier

Wide Lane Infrared Flap Barrier Gate

The Wide Lane Security Infrared Flap Barrier is a premium access control solution engineered to provide fast, safe and intelligent pedestrian management in high-traffic environments.
Equipped with infrared sensors, intelligent microprocessor control and high-speed retractable flaps, it ensures authorized entry with smooth motion and high detection accuracy.

Designed for wide-lane access, this model is ideal for wheelchair users, delivery carts, or facilities that require broader passage widths without compromising security. Its durable 304 stainless-steel body and advanced optical detection system make it suitable for airports, corporate offices, subway stations, universities, and smart buildings.

With RFID, fingerprint, face recognition, and QR code integration options, this flap barrier ensures a seamless blend of security, speed and sophistication for modern access control systems in Bangladesh.

Features

• Wide Lane Design: Supports passage widths up to 900–1000 mm for easy wheelchair or cart access.

• Infrared Detection Sensors: Multiple IR beams ensure safe, contactless entry and prevent tailgating or intrusion.

• High-Speed Flap Movement: Opens and closes smoothly in under 0.3 seconds for efficient traffic flow.

• 304 Stainless Steel Housing: Anti-corrosion and durable frame for long service life.

• Multi-Authentication Support: Works with RFID, fingerprint, face recognition, or QR code readers.

• Automatic Reset Function: Flaps close automatically if entry is not completed within set time.

• Emergency Auto-Open: Opens automatically upon power failure or fire alarm signal for safe evacuation.

• LED Direction Indicators: Green and red arrows guide users clearly during entry and exit.

• Low Noise Operation: Brushless DC motor ensures quiet and maintenance-free operation.

• Modular Design: Easy to install, integrate, and maintain with minimal downtime.

• Anti-Tailgating & Anti-Collision: Built-in logic prevents multiple users entering on a single authentication.

• Integrated Counting System: Optional feature to track pedestrian volume.

Technical Specifications:
