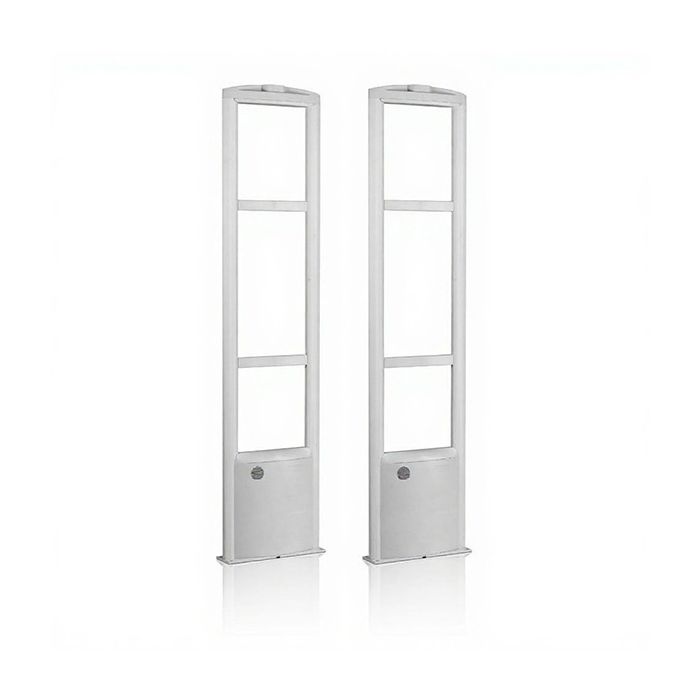

EAS 8.2Mhz RF System Antitheft EAS Alarm Gate

The EAS 8.2 MHz RF System Anti-Theft Alarm Gate is a powerful electronic article surveillance (EAS) exit-gate solution designed for clothing stores, retail outlets and garment showrooms. Operating on the 8.2 MHz radio-frequency band, it detects RF tags and labels as they pass through the gate, triggering visual and audible alerts to deter theft. Sleek and slim in design, this gate offers reliable detection of soft labels, hard tags and in-store merchandise across Bangladesh’s retail environment.

Key Features

Radio-Frequency Detection (RF 8.2 MHz): Optimised for common RF tags and labels at 8.2 MHz centre frequency, ensuring reliable tag recognition.
Wide Detection Range: Detects soft labels, small hard tags and large tags over distances up to ~2 metres depending on tag size and conditions.
Low Power Consumption: Rated power consumption typically ≤ 15 W, making it cost-efficient for continuous operation.
Durable Construction: Frame and antenna housing built from aluminium-alloy or ABS materials, designed for heavy retail use.
Slim & Modern Design: Handles exit-point installation with minimal intrusion into the customer flow area (e.g., cabinet size ~1580 × 380 × 30 mm).
Customisation & Compatibility: Works with standard RF hard tags and soft labels; supports various retail layouts and configurations for Bangladesh stores.

Technical Specification

Specification	Details
System Type	Electronic Article Surveillance (EAS) Gate – RF technology
Operating Frequency	8.2 MHz (centre) – typical RF band for retail tags
Operating Voltage	AC 110–220 V, 50–60 Hz (depending on region)
Rated Power Consumption	≤ 15 W
Detection Range	Soft label: ~0.8–1.2 m; Hard tag (small): ~1.2–1.6 m; Large hard tag: ~1.5–2.2 m
Scanning / Refresh Rate	150-180 Hz typical sampling frequency
Frame / Antenna Material	Aluminium alloy + ABS / metal alloy housing
Dimensions (Approx)	1570–1580 mm height × ~380 mm width × ~30–40 mm depth
Working Temperature	Typically -20 °C to +45 °C (subject to model)
Tag Compatibility	RF hard tags & RF soft labels at 8.2 MHz system
