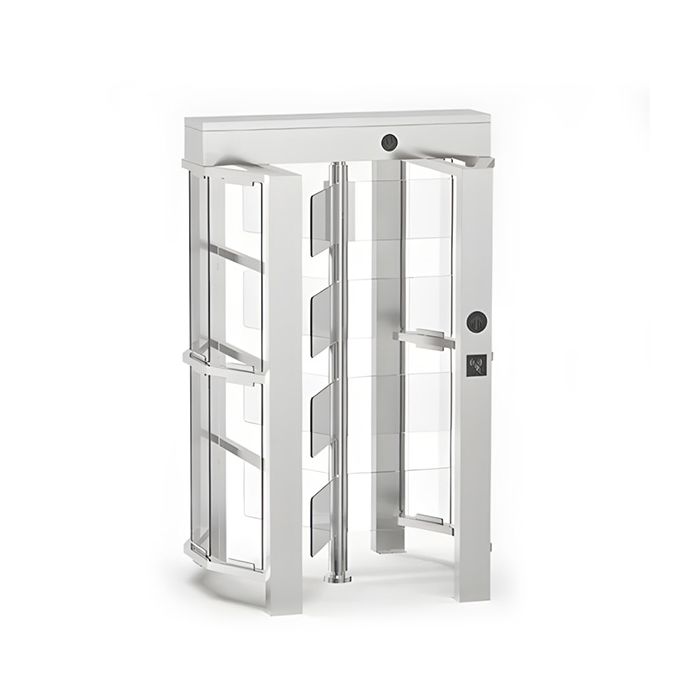

VARITO VFHT-401G Glass Door Full Height Turnstile
VARITO VFHT-401G Glass Door Full Height Turnstile
Brand: VARITO
Model: VFHT-401G
Country of Origin: Germany
Country of Manufacture: China
Feature Highlights:
Gate reaction time : 5s
Throughput Rate: 25~30p/m
Material : SUS 304 Stainless Steel
Passage Width: 600mm Lane (for pedestrian)
Product Dimension : 1400*1260*2300mm
Warranty: One (1) Year Official Service
VARITO VFHT-401G Glass Full Height Turnstile
VARITO VFHT-401G Glass Door Full Height Turnstile not only have excellent safety performance, but also give people a more beautiful feeling compared to stainless steel. Which can be installed in any high-end place, such as fitness centers, hotels, embassies and banks.
The movement with absorber structure, making the product operate very quietly and runs smoothly. It’s idea for both indoor and outdoor, as whole body is made of finished and brushed stainless steel, which is waterproof, anti-corrosion and rigid.
In case of emergency, turnstile gate will open automatically to allow free passage when power off. It has standard relay signal, which can be integrated with any kind of third-party access control system ( RFID, Fingerprint and Biometric reader device).
Technical Parameters:
| Parameters | Details |
| Model No. | VFHT-DS401G |
| Framework Material | 304 Full Stainless Steel |
| Dimension | 1400 x 1260 x 2300mm |
| Weight | 200kg/pcs |
| Passage Width | 673mm Lane (for pedestrian) |
| Arm Support | 120° rotors with 3 sections or 90° rotors with 4 sections |
| Passing Direction | Single directional / Bi-directional |
| MCBF | 10 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 40W |
| Operation Temperature | -15 °C - 60 °C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor / Outdoor |
| Flow Rate | 25~30 people per minute |
| LED Indicator | Yes |
| Emergency | Automatic arm open when power off |
| Communication | Dry contact, Relay signal, RS485 |
| IP Rating | IP56 |
Full Height Turnstile Safety Features:
1. Long-life performance, high operation dependability and fast response
2. The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when running
3. Single directional or Bi-directional is selectable
4. Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) ifpassenger delay to entry
5. Anti-tailing function: only one person passes at one time
6. When power is off, arms will open automatically, which is complying with fire safety requirements
7. LED indicator (Red × means no entry, Green → means entry)
8. Structure of trunking to contain cable tidy inside the case
9. Structure of ring cover on top and bottom to beautify it
10. Override key function: when power failure, support to control open and close by manual
11. Easy to install and maintain
