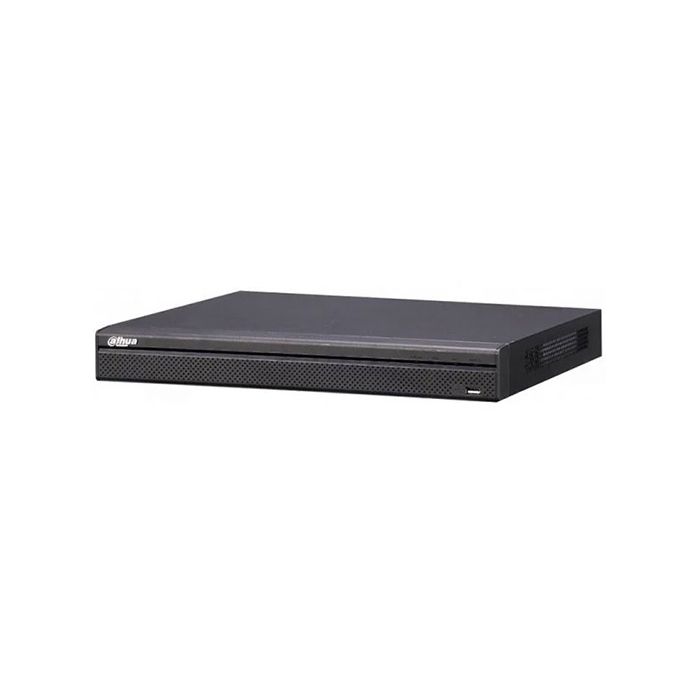

DAHUA XVR4204AN 04 CH PENTA - BRID DVR
Dahua DHI-XVR4204AN 04CH 1080N DVR
Model: DHI-XVR4204AN
System: Embedded Processor
Operating System: Embedded Linux
Video Input: 4 Channels (BNC)
Video Standard: NTSC / PAL Auto-Detect
Video Compression: H.264+ / H.264
Analog Camera Input: HDCVI / AHD / TVI / CVBS
IP Camera Input: Up to 2 Channels, each up to 6MP
Audio Input / Output: 1 / 1, RCA
Two-Way Talk: Reuse Audio In/Out, RCA
Dahua DHI-XVR4204AN 04CH PENTA-BRID 1080N XVR DVR
The Dahua DHI-XVR4204AN 04CH PENTA-BRID 1080N XVR/DVR is a powerful and flexible video recorder that supports multiple technologies including HDCVI, AHD, TVI, CVBS, and IP cameras, making it a perfect hybrid solution for any security system.
With real-time 1080N recording, smart H.264+ compression, and reliable remote access, this DVR ensures high-quality video storage and smooth performance. Designed for small and medium surveillance setups, it delivers professional-grade monitoring at an affordable cost.
Whether used in homes, offices, shops or factories, the Dahua DHI-XVR4204AN ensures stable, efficient and intelligent video management.
Key Benefits
-
5-in-1 Compatibility: Supports HDCVI, AHD, TVI, CVBS & IP cameras for full system flexibility.
-
High-Definition Recording: Captures clear and detailed footage in 1080N resolution.
-
Smart Compression: H.264+ technology reduces bandwidth and storage usage.
-
Remote Access: View live or playback video via mobile apps or browser anywhere.
-
User-Friendly Interface: Simple setup with intuitive GUI for fast configuration.
-
Multi-Channel Playback: Replay up to 4 channels simultaneously.
-
Motion Detection & Alerts: Sends instant notifications for suspicious movement.
-
Reliable Storage: Supports large-capacity HDD for long-term recording.
Technical Spicifications:
|
System |
|
|
Main Processor |
Embedded Processor |
|
Operating System |
Embedded LINUX |
|
Display |
|
|
Interface |
1 HDMI ,1 VGA |
|
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768 |
|
Multi-screen Display |
4CH: 1/4/6 8CH: 1/4/8/9/16 16CH: 1/4/8/9/16/25 |
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
Video Detection and Alarm |
|
|
Video Detection |
Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
|
Alarm input |
N/A |
|
Relay Output |
N/A |
|
Backup Mode |
USB Device/Network |
|
Storage |
|
|
Internal HDD |
2 SATA Ports, up to 8TB capacity for each disk |
|
eSATA |
N/A |
|
Auxiliary Interface |
|
|
USB |
2 USB Ports (2 USB 2.0) |
|
RS232 |
N/A |
|
RS485 |
1 Port, for PTZ Control |
|
Audio and Video |
|
|
HDCVI Camera I nput |
4/8/16 Channel |
|
IP Camera Input |
4+1 Channel, each channel up to 2MP 8+2/16+2 Channel, each channel up to 5MP |
|
Audio In/Out |
1/1, RCA |
|
Two-way Talk |
Reuse audio in/Out, RCA |
|
Recording |
|
|
Compression |
H.264 |
|
Resolution |
1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF |
|
Bit Rate |
1Kbps ~ 6144Kbps Per Channel |
|
Record Mode |
Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
|
Max. User Access |
128 users |
|
Smart Phone |
iPhone, iPad, Android |
|
Interoperability |
ONVIF 2.42, CGI Conformant |
| Call for Price | No |
|---|---|
| Alarm in/out | Yes |
| audio_input | N/A |
| Brand | Dahua |
| esata | N/A |
| HDD | 2 SATA |
| Support_resolution | 1080 Pixel |
| technology | Hybrid |
| video_chanel | 4 Port |
