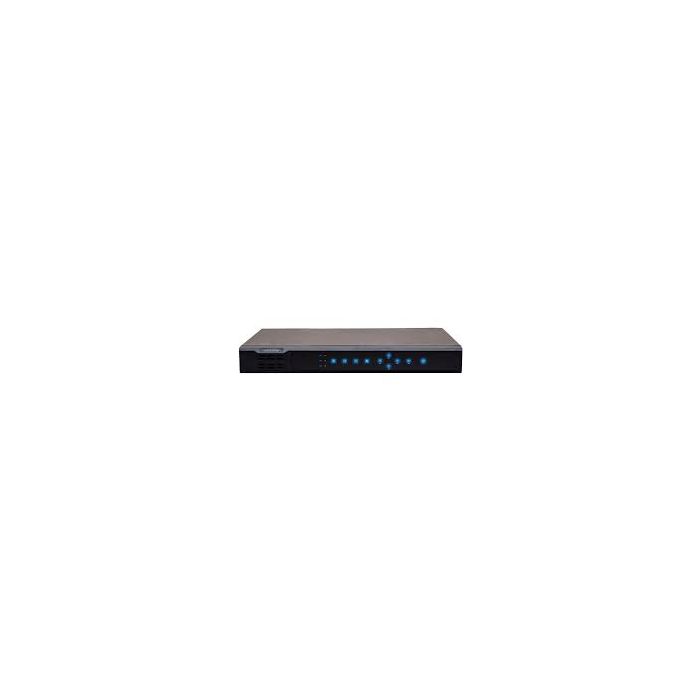

UNIVIEW NVR202-32E 32CH 1080p NVR
Features and Key points :
• Model: UNIVIEW NVR202-32E
• H.264 video compression
• Support up to 4M Camera
• 23- Channel NVR Input
• All Channel @ 1080P Recording
• HDMI & VGA Out Put Up to 1080P
• Support 2 HDD (Up to 12 TB)
• Support Mobile Client Access
• Installation with expert Technician
• Best price in Bangladesh
• Call for Discount / Price Match policy
Buy UNIVIEW NVR202-32E 32CH 1080p NVR with best Price in Bangladesh
Support H.264 video formats with 32-channel input. Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T. HDMI and VGA output up to 1080P and HDMI and VGA simultaneous output. Up to 4 Megapixels resolution recording. 2 SATA HDDs, up to 6TB for each HDD. ANR technology to enhance the storage reliability when the network is disconnected. Support cloud upgrade.
Key Features o UNIVIEW NVR202-32E
■ 32-channel input
■ ONVIF conformance
■ HDMI and VGA output up to 1080P
■ 2 SATA HDD up to 12 TB
■ Support for P2P, UPnP, NTP, DHCP, PPPoE
■ Support for mobile client access
UNIVIEW NVR202-32E Spicifications:-
|
Two-way Audio Input |
1-ch, RCA |
|
Incoming Bandwidth |
200Mbps |
|
Outgoing Bandwidth |
96Mbps |
|
Remote Users |
128 |
|
Protocols |
P2P, UPnP, NTP, DHCP, PPPoE |
|
HDMI/VGA Output |
HDMI/VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz |
|
Recording Resolution |
4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Audio Output |
1-ch, RCA |
|
Synchronous Playback |
16-ch |
|
Corridor Mode Screen |
3/4/5/7/9/10/12/16 |
|
Decoding format |
H.264 |
|
Live view /Playback |
4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
SATA |
2 SATA interfaces |
|
Network Interface |
up to 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface6TB for each disk |
|
USB Interface |
Rear panel: 1 x USB2.0, 1 x USB3.0 |
|
Power Supply |
12V DC Power Consumption: ≤ 8 W( without HDD ) |
|
Working Environment |
-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
|
Dimensions(W×D×H) |
44 × 360 × 254mm ( 1.7” × 14.2” × 10.0” ) |
|
Weight |
≤ 1.42 Kg ( 3.13 lb ) |
|
IP Video Input |
32 CH |
NVR Connection Diagram
A network video recorder (NVR) is a specialized computer system that includes a software program that records video in a digital format to a disk drive, USB flash drive, SD memory card or other mass storage device. ... An NVR is typically deployed in an IP video surveillance system.
What is our after-sale service System?
We offer 100% guarantee on our product after sales service. We provide one year service warranty free and we provide life time service just for service fee.
What is the price of UNIVIEW NVR202-32E 32CH 1080p NVR in Bangladesh?
The latest price of UNIVIEW NVR202-32E 32CH 1080p NVR in Bangladesh is 14,500৳. You can buy the UNIVIEW NVR202-32E 32CH 1080p NVR at best price from our website or visit any of our showrooms.
We Provide Solution of Surveillance System in BD. |
|
|
|
We successfully installed Survillance System to Many Banks and corporate in Bangladesh, some of the projects are: |
||
Banks |
Corporates |
|
…Other many more Projects |
…Other many more Projects |
|
| Call for Price | No |
|---|---|
| Alarm in/out | N/A |
| Brand | UNIVIEW |
| esata | N/A |
| HDD | 2 SATA |
| Support_resolution | 4 Mega Pixel |
| poe_ports | N/A |
| power_supply_nvr | DC12V/5A |
| raid | N/A |
| video_chanel | 32 Port |
