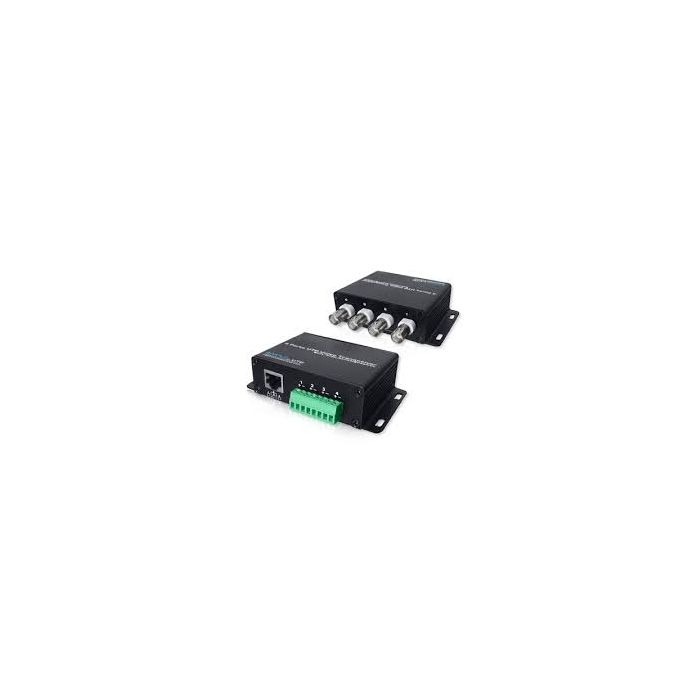

4 Channel Passive HD Video UTP Transceiver (UTP104P-HD)

4 Channel Passive HD Video UTP Transceiver (UTP104P-HD)

High-performance 4-channel passive HD video UTP transceiver with no external power needed. Supports HDCVI/HDTVI/AHD/CVBS formats and delivers real-time, stable transmission over UTP Cable, perfect for multi-point CCTV installations.

Key Features

• Four independent video channels: ideal for multi-camera CCTV systems.


• Passive design: no power supply required, reducing cabling and installation cost.


• 4-in-1 compatible: supports HDCVI, HDTVI, AHD and analog CVBS video formats.


• Plug-and-play UTP transmission: Real-time video over UTP, ultra-low latency.


• Long-distance capability (passive to passive):


• HDCVI 1080p: up to ~100 m

• HDCVI 720p: up to ~370 m

• HDTVI 720p/1080p: up to ~200 m

• AHD-L/M 720p/960p: up to ~330 m

• Analog video: up to ~500 m


• Robust surge, ESD and lightning protection, ensures reliability in demanding installation environments.

• Flexible connectivity: Choose RJ-45 or green screw-terminal block for UTP cable connection.



Technical Specifications
