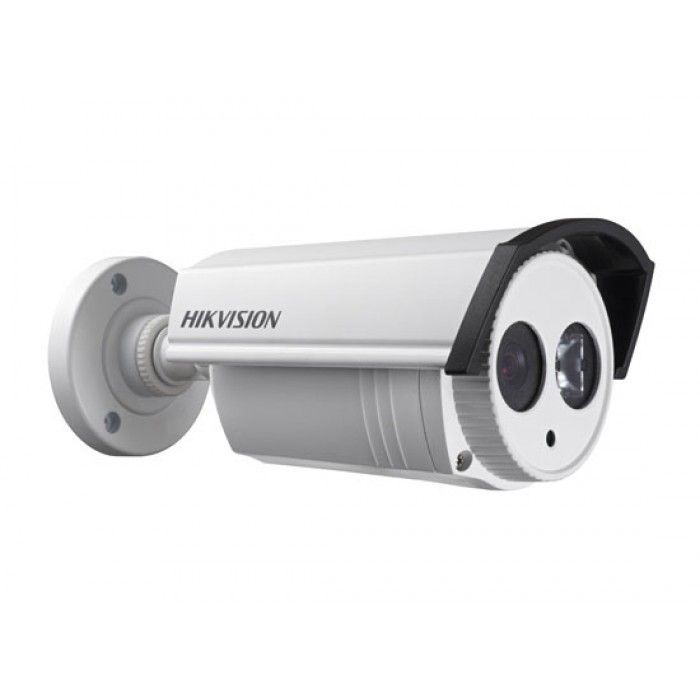

Hikvision DS-2CE16A2P(N)-IT3 bullet CCTV camera
Features :
♦ 1/3'' DIS
♦ 700TVL high resolution
♦ EXIR 40m
♦ Smart IR
♦ IP66 rating
♦ True day / night
Model: Hikvision analog cctv camera ds-2ce16a2p(n)-it3
700tvl bullet ir camera
40mtr ir distance 6 mm
|
Brand |
Hikvision |
|
Model Code |
DS-2CE16A2P(N)-IT3 |
|
Chip Inch Size " |
1/3 |
|
Colour Type |
True Day / Night |
|
Resolution TVL |
700 |
|
Digital (DSP) |
Yes |
|
Specialist Types |
Infrared |
|
Sensitivity lux |
0 |
|
Focal Length mm |
3.6 |
|
Picture Elements HxV |
976 x 496 |
|
Back Light Compensation |
Yes |
|
Auto Gain Control |
Yes |
|
Electronic Shutter range |
PAL: 1/50 s ~ 1/100,000 s; NTSC: 1/60 s ~ 1/100,000 s |
|
S/ N (Signal/ Noise) Ratio dB |
> 62 |
|
Synchronisation |
Internal |
|
Signal Mode |
NTSC, PAL |
|
Electrical Specifications |
Voltage: 12 V DC |
|
Video Output |
1Vp-p composite output (75 ohms/BNC) |
|
Physical Specifications |
Dimension mm: 95 x 83 x 211 |
|
Environmental Specifications |
Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) |
|
Model Info |
Hikvision DS-2CE16A2P(N)-IT3 is a true day/night bullet IR CCTV camera with 700TVL horizontal resolution. It features 40m IR distance, IR cut filter with auto switch, 3.6mm fixed lens as well as wide operating temperature range. |
