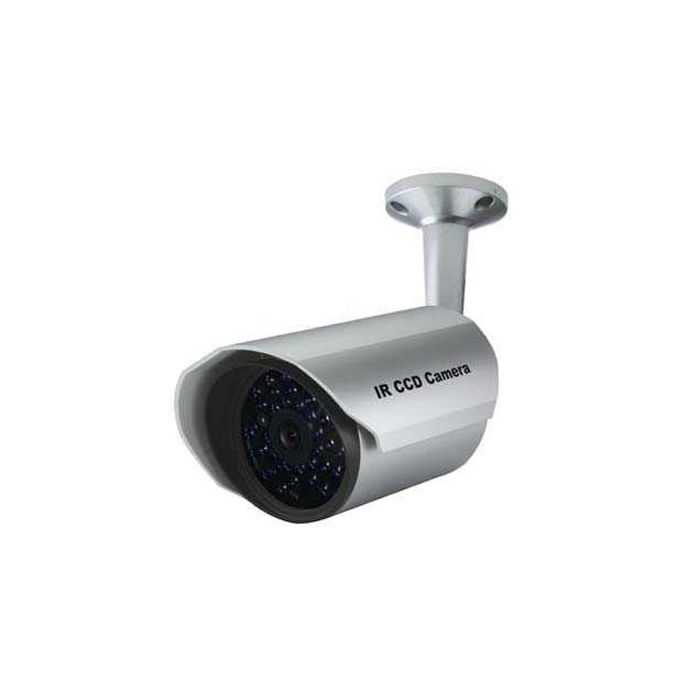

AVTECH KPC-139 night Vision CCTV security camera
Features
• High sensitivity in the dark environment
• 0.3Lux/F2.0 (IR OFF), 0Lux (IR ON)
• Day and night features for 24-hour surveillance
• Excellent High Resolution 650 TVL image quality
• IR LED effective range reaches up to 25meters
• IP67 standard approved outdoor housing
Avtech Model:KPC 139
Sensor 1/3'' colour CCD
Lens 3.6 MM
Resolution 650 TVL
IR LED 35 Units.
IR Distanse 25 Meter
Overview:
The KPC139E is a high resolution, weatherproof, day & night IR s security camera from AVTECH that delivers superior image quality with an IR effective range of 25M. The camera utilizes 650 TV Lines to deliver crystal clear images and its sensitivity of 0.00Lux allows it to produce clear images even in complete darkness. In addition to its weather-proof housing, KPC139E also comes with a wide range of functions, such as AGC, BLC, and Auto White Balance.
Specification
|
Pick up Element |
1/3" Color CCD image sensor |
|
Number of Pixel |
512(H) x 492(V)/ 512(H) x 582(V) |
|
Resolution |
420 TV Lines |
|
Min. Illumination |
0.05 Lux / F2.0, 0 Lux （IR ON） |
|
IR LED |
35 unit |
|
Effective Range |
Up to 35 Meters |
|
S/N Rate |
More than 48dB (AGC off) |
|
Electronic Shutter |
1/60 (1/50) to 1/100,000 sec. |
|
Lens |
f3.6mm / F2.0 |
|
Lens Angle |
92.6° |
|
IRIS Mode |
AES |
|
AGC |
Auto |
|
White Balance |
ATW |
|
IP Rating |
IP67 |
|
Video Output |
1.0 Vp-p composite, 75Ω |
|
Power Source (±10%) |
DC12V |
|
Current Consumption (±10%) |
70mA (IR OFF), 390mA (IR ON) |
|
Dimensions (mm) |
142(H) x 75(D) |
|
weight |
430g |
|
Operating Temperature |
-20°C - 40°C |
