hikvision DS-2AE7023I(N)-A analog ptz cctv security camera
Name: hikvision analog ptz cctv security camera
1/3 SONY CCD
23x optical zoom 16X digital zoom
700TVL high resolution
3D DNR & 3D WDR
True day / night ip66 , IR 120M
Model: Hikvision Analog cctv camera DS-2AE7023I(N)-A
Distence: 700TVL HIGH SPEED DOME IR CAMERA 23X ZOOM
|
Model Parameter |
DS-2AE7023I-A: PAL, 24VAC,Outdoor DS-2AE7023I-D: PAL, 12VDC,Outdoor DS-2AE7023NI-A: NTSC, 24VAC,Outdoor DS-2AE7023NI-D: NTSC, 12VDC,Outdoor |
|
|
E SeriesIR Analog PTZ Dome Camera |
||
|
Camera |
Image Sensor |
1/3’’CCD |
|
Effective Pixel |
PAL:976(H)×582(V) NTSC:976(H)×494(V) |
|
|
Horizontal Resolution |
700TVL |
|
|
Signal System |
PAL /NTSC |
|
|
Min. Illumination |
Color: 0.02Lux(F1.6, AGC ON) B/W:0.002Lux(F1.6, AGC ON) 0 lux with IR |
|
|
White Balance |
Auto / Manual / ATW / Indoor / Outdoor |
|
|
AGC |
Auto / Manual |
|
|
S / N Ratio |
≥ 50dB |
|
|
3D DNR |
Support |
|
|
Backlight Compensation |
Support |
|
|
Digital WDR |
Support |
|
|
Shutter Time |
PAL: 1-1/10,000s NTSC: 1-1/10,000s |
|
|
Day & Night |
IR Cut Filter |
|
|
Digital Zoom |
16x |
|
|
Privacy Mask |
8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen |
|
|
Focus Model |
Auto / Semiautomatic / Manual |
|
|
Lens |
Focal Length |
4-92mm, 23X |
|
Zoom Speed |
Approx.3.0s(Optical Wide-Tele) |
|
|
Angle of View |
49-2.2degree(Wide-Tele) |
|
|
Min. Working Distance |
10-1500mm (Wide-Tele) |
|
|
Aperture |
F1.6-F3.7 |
|
|
Pan and Tilt |
Pan Range |
360° endless |
|
Pan Speed |
Pan Manual Speed: 0.1°-160°/s, Pan Preset Speed: 240°/s |
|
|
Tilt Range |
-15°-90° (Auto Flip ) |
|
|
Tilt Speed |
Tilt Manual Speed: 0.1°-120°/s, Tilt Preset Speed: 200°/s |
|
|
Proportional Zoom |
Rotation speed can be adjusted automatically according to zoom multiples |
|
|
Number of Preset |
256 |
|
|
Patrol |
10 patrols, up to 32 presets per patrol |
|
|
Pattern |
5 patterns, with the total recording time not less than 15 minutes |
|
|
Power-off Memory |
Support |
|
|
Park Action |
Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan |
|
|
PTZ Position Display |
On / Off |
|
|
Preset Freezing |
Support |
|
|
Scheduled Task |
Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan |
|
|
RS-485 communication diagnosis |
Support |
|
|
Manchester code and connection failures diagnosis |
Support |
|
|
Infrared |
IR Distance |
120m |
|
IR Intensity |
Automatically adjusted, depending on the zoom ratio |
|
|
Input/ Output |
Monitor Output |
1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC |
|
RS-485 Interface |
Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
|
|
UTC function |
Self-adaptive PELCO_C, HIKVISION_C(need UTC controller) |
|
|
General |
Menu Language |
English, Chinese |
|
Power |
24VAC(for –A moel); 12VDC(for –D model) Max. 30W(IR: 9W, Heater: 6W) |
|
|
Working Temperature / Humidity |
-30 °C-65°C(-22°F-149°F) 90% or less |
|
|
Protection Level |
IP66 standard TVS 4,000V lightning protection, surge protection and voltage transient protection |
|
|
Mounting |
Various mounting modes optional |
|
|
Dimensions |
Φ220×353.4mm (Φ8.66”×13.91”) |
|
|
Weight (approx.) |
4.5kg(9.92 Ibs) |
|
|
Mount Option (only suitable for outdoor dome) |
Long-arm wall mount: DS-1601ZJ;Corner mount: DS-1601ZJ-corner; Pole Mount: DS-1601ZJ-pole;Power box mount:DS-1601ZJ-box |
|
Other Functions of CCTV Security Camera:

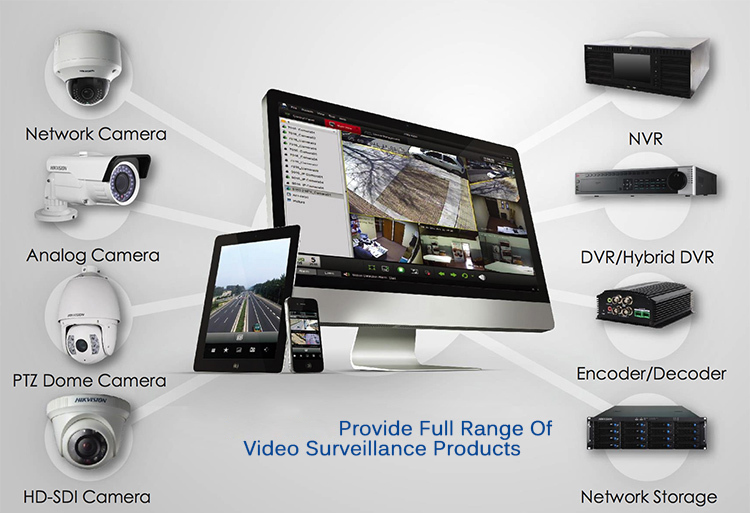

CCTV Camera Layout Plan:

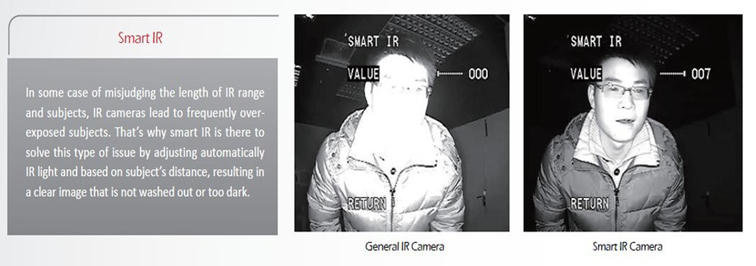

Smart IR Function: in CCTV Camera

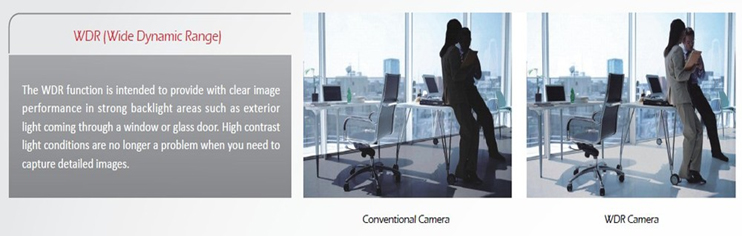

WDR (Wide Dynamic Range ):
