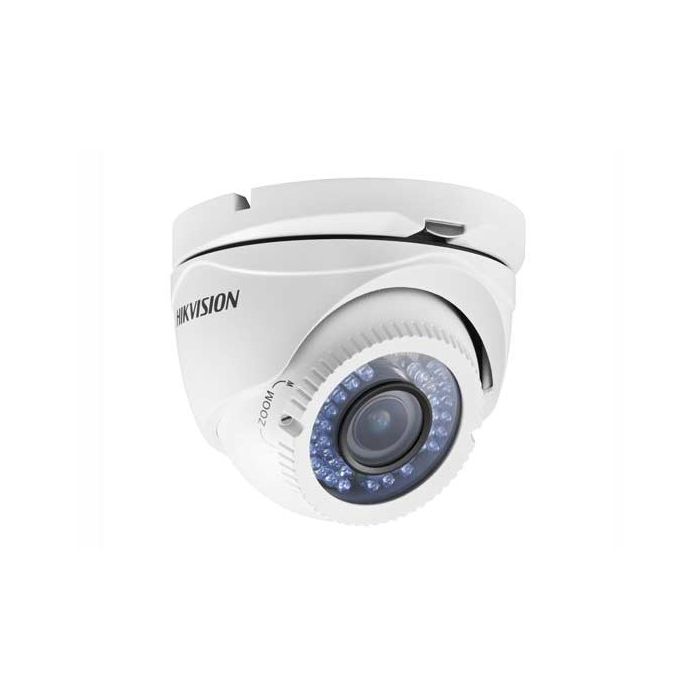

Hikvision DS-2CE55A2P(N)-VFIR3 700TVL Dome CCTV Camera in Bangladesh

Image Sensor:

1/3” DIS

Signal System:

PAL/NTSC

Effective Pixels:

976(H)×496(V)

Min. Illumination:

0.1Lux @ (F1.2,AGC ON),0 Lux with IR
0.14Lux @ (F1.4,AGC ON),0 Lux with IR

Shutter Time:

1/50(1/60)s to 1/100,000s

Lens:

2.8-12 mm @ F1.4
Angle of view: 80° - 27.2°

Lens Mount:

φ14

Adjustment Range:

Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°

Day& Night:

IR cut filter with auto switch

Horizontal Resolution:

700 TVL

Synchronization:

Internal Synchronization

Video Output:

1Vp-p Composite Output (75Ω/BNC)

S/N Ratio:

More than 62 dB

BLC:

On

Operating Conditions:

-40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)

Power Supply:

12 V DC±10%

Power Consumption:

Max. 4 W(Max. 5 W with IR cut filter on)

Weather Proof:

IP66

IR Range:

Approx 30 to 40 meters

Dimension:

134.2×123.9×88.1mm(5.28”×4.88”×3.47”)

Weight:

800g (1.76l lbs)
