Avtech AVC183 surveillance CCTV camera Price in Bangladesh

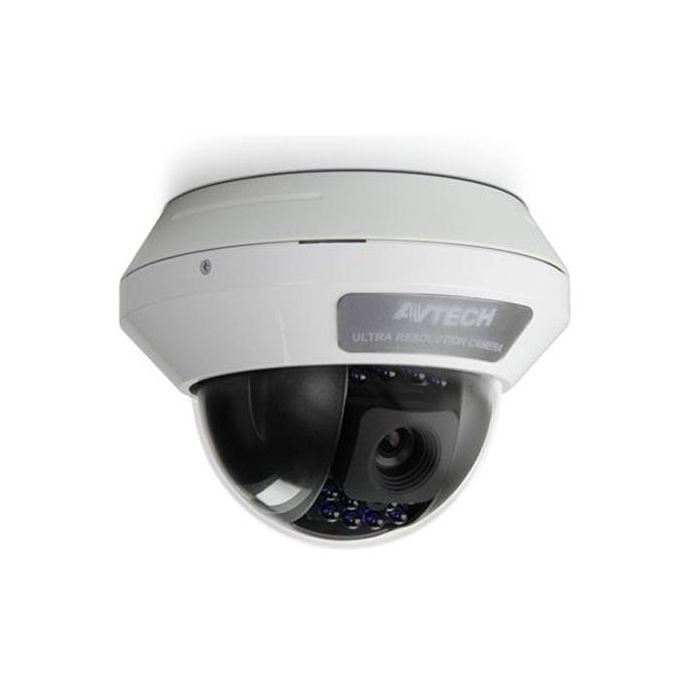

Avtech AVC183 Surveillance CCTV Camera
Avtech Model: AVC 183
Sensor 1/3'' colour CCD
Lens 3.6 MM
IR LED 12 Units
IR Distanse 10 Meter
3-axis mechanism for flexible ceiling and wall-mount installation
1/3" H.R. Color CCD with SONY Effio DSP
700 TVL superior image quality Resolution
Low light sensitivity of 0.05 Lux, 0 Lux (IR ON)
Avtech AVC183 Surveillance CCTV Camera
CCTV Camera Name: 1/3″ SONY Effio DSP HR Color CCD IR 960H Ultra Resolution CCTV Camera
CCTV Camera Model: AVC 183
AVTECH Sony Effio camera series features the best cost and performance. It supports 960H recording, which brings you the best viewing with high resolution and clear images. When the light fluid fluctuates, the viewing looks still stable and shows the true color of the images. With 3-axis mechanism built-on, flexible ceiling and wall-mount installation is just a piece of cake. This camera also offers you day and night 24-hour surveillance.
Features:
1/3″ H.R. Color CCD with SONY Effio DSP
700 TVL superior image quality
Low light sensitivity of 0.05 Lux, 0 Lux (IR ON)
3-axis mechanism for flexible ceiling and wall-mount installation
Day and night features for 24-hour surveillance
Technical Specifications
|
Pick up Element |
1/3” Color CCD image sensor with SONY Effio DSP |
|
Number of Pixel |
976(H) x 494(V) / 976(H) x 582(V) |
|
Resolution |
Up to 700 TV lines |
|
Min. Illumination |
0.05 Lux; 0 Lux (IR ON) |
|
IR LED |
12 units |
|
IR Effective Range |
Up to 10 meters |
|
S/N Ratio |
More than 60dB (AGC OFF) |
|
Electronic Shutter |
1/60 (1/50) to 1/100,000 sec. |
|
Lens |
f3.8mm / F1.5 |
|
Lens Angle |
98.3° (Diagonal) / 76.3° (Horizontal) / 56.2° (Vertical) |
|
Iris Mode |
AES |
|
Color Rolling Suppress |
Supported |
|
White Balance |
ATW |
|
Video Output |
1.0 Vp-p composite, 75? |
|
Power Source (±10%) |
DC12V |
|
Power Consumption (±10%) |
240mA |
|
Operating Temperature |
0?~40? |
|
Current Consumption (±10%) |
70mA (IR OFF), 200mA (IR ON) |
|
Dimensions (mm)** |
131(Ø) × 95(H) |
