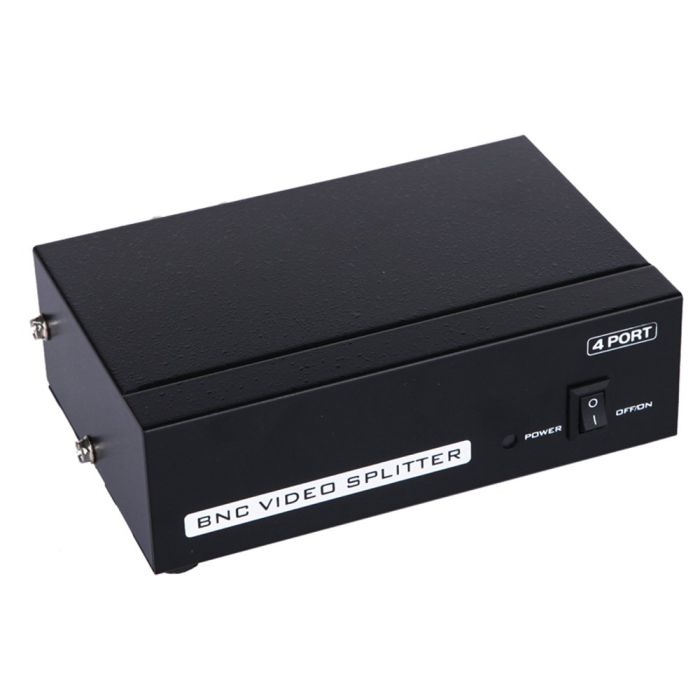

MT-104BC 4-Port BNC Splitter
MT-104BC 4-Port BNC Splitter
Model: MT-104BC
Product Type: 4-Port BNC Video Splitter
Input Channel: 1 × BNC (75Ω)
Output Channels: 4 × BNC (75Ω)
Video Signal Type: Composite video
Bandwidth: 100 MHz (–3 dB)
MT-104BC 4-Port BNC Splitter
The MT-104BC 4-Port BNC Splitter is a high-quality video distribution device designed to split one BNC video input into four identical outputs without signal degradation. It ensures stable, clear, and synchronized video transmission across multiple monitors or recording devices, ideal for CCTV surveillance systems, security control rooms, and video broadcasting setups.
Built with high-performance amplifying circuitry, the MT-104BC provides long-distance video signal transmission and consistent output quality. Its metallic shielded body reduces interference, ensuring a clean and noise-free video signal in both analog and digital environments.
Key Benefits
-
Multi-Channel Output: Distributes one video input to four output devices simultaneously.
-
High Signal Stability: Maintains video clarity and synchronization without signal loss.
-
Easy Integration: Compatible with DVRs, monitors, matrix switchers, and CCTV cameras.
-
Durable Metal Housing: Provides shielding against electromagnetic interference (EMI).
-
Long-Distance Transmission: Strengthened output for cable runs up to 300 meters.
-
Plug-and-Play Setup: Simple installation, no software configuration needed.
-
Power Efficient: Low power consumption for 24/7 operation.
-
Cost-Effective Solution: Ideal for security systems requiring multiple video outputs.
Technical Specifications:
| Category | Technical Details |
|---|---|
| Model | MT-104BC |
| Product Type | 4-Port BNC Video Splitter / Distributor |
| Input Channel | 1 × BNC (75Ω) |
| Output Channels | 4 × BNC (75Ω) |
| Video Signal Type | Composite video (PAL / NTSC / SECAM) |
| Bandwidth | 100 MHz (–3 dB) |
| Video Gain | 0 dB ±1 dB |
| Isolation Between Outputs | > 60 dB |
| Input / Output Impedance | 75Ω |
| Maximum Transmission Distance | Up to 300 meters (coaxial cable) |
| Power Supply | DC 12V ±10% |
| Power Consumption | < 3W |
| Casing Material | Metal (Electrostatic & EMI Shielded) |
| Operating Temperature | –10°C ~ +55°C |
| Storage Temperature | –20°C ~ +70°C |
| Dimensions | 138 × 80 × 45 mm |
| Weight | Approx. 400 g |
| Compatibility | CCTV cameras, DVRs, monitors, multiplexers, video servers |
| Installation Mode | Desktop / Rack-mount optional |
| Applications | Security control rooms, video surveillance systems, broadcasting centers, educational monitoring, and industrial CCTV setups |
