HDMI Splitter 1 in 2 out 1x2 4K 30Hz for Dual Monitor

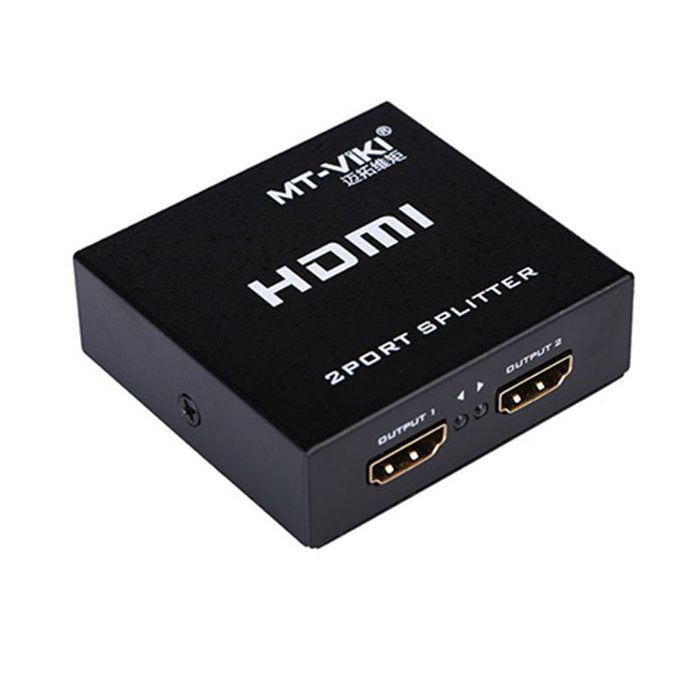

MT-VIKI MT-SP102M HDMI 1-in-2 Splitter
Model: MT-VIKI MT-SP102M
Input ports: 1 × HDMI Type-A female
Output ports: 2 × HDMI Type-A female
Maximum output resolution: Up to 4K×2K @ 30 Hz
Compatible resolutions: 1080p@60Hz, 720p@60Hz
Bandwidth / Pixel clock: Up to 340 MHz pixel Clock
Cable transmission: Up to ~15 m with 24-AWG HDMI Cable
Supported HDMI version: HDMI 1.4
MT-VIKI MT-SP102M HDMI Splitter 1-in-2 (4K@30Hz) – Dual Monitor Mirror Solution
The MT-VIKI MT-SP102M HDMI splitter allows one HDMI source to be output simultaneously to two HDMI displays, enabling duplicate/mirror mode (not extended mode) at resolutions up to 4K@30Hz. Ideal for gaming consoles, streaming devices, PCs and dual-monitor setups where the same image needs to be shown on two screens.
Key Features
-
One HDMI input to two HDMI outputs: mirror the same signal to dual displays.
-
Supports up to 4K×2K @ 30Hz resolution; backwards compatible with 1080p@60Hz, 720p@60Hz.
-
HDMI 1.4 (compatible) with HDCP 1.4 support.
-
Compact metal-housing design for better heat dissipation and long-term stability.
-
Plug and play – no drivers required, instant operation.
-
Supports transmission distances up to approx. 15 m (24AWG cable) or up to 110ft in some configurations (50 ft/60 ft split).
-
Ideal for game consoles (PS4, Xbox), streaming devices (Fire Stick, Roku), PCs and laptops for dual-screen mirror setups.
Technical Specification
