4CH FULL HD VIDEO OPTIC TRANSCEIVER (1080P)

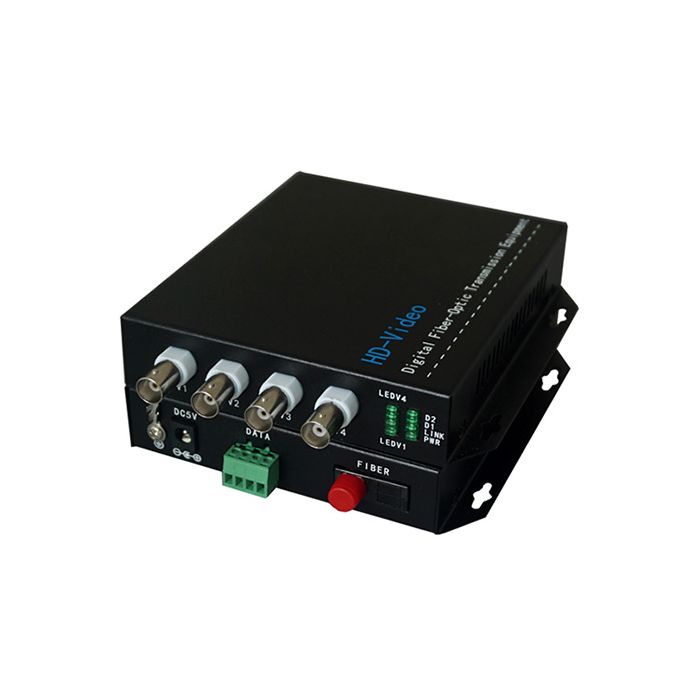

4CH HD Video Optic Transceiver (720P)

The 4CH HD Video Optic Transceiver (720P) is a high-performance fiber optic transmission system designed to deliver crystal-clear HD video over long distances. It converts four channels of 720P analog HD video signals into optical signals, enabling stable, interference-free transmission across extended ranges.
Ideal for CCTV surveillance, traffic monitoring, industrial control, and campus security systems, this transceiver ensures superior video quality, lightning protection, and plug-and-play installation.

Benefits

• Long-Distance Transmission: Transmits 720P HD video up to several kilometers via fiber optic cable without signal loss.

• High Stability & Low Latency: Maintains real-time transmission with no compression delay.

• Superior Image Quality: Ensures sharp, clear HD images free from electromagnetic interference.

• Reliable & Durable: Industrial-grade design with strong anti-interference performance and wide temperature tolerance.

• Easy Installation: Compact plug-and-play setup — no configuration or software required.

• Versatile Compatibility: Works with HD-CVI, HD-TVI, AHD cameras, and DVR systems.

Features

• Video Channels: 4 channels HD analog video (720P)

• Transmission Type: Uncompressed digital video over fiber optic

• Transmission Distance: Up to 20 km (single-mode fiber)

• Optical Connector: FC / SC optional

• Fiber Type: Single-mode or multi-mode supported

• Video Format: AHD / HD-CVI / HD-TVI (720P)

• Bandwidth: 8-bit digitally encoded video transmission

• Video Input/Output Impedance: 75Ω (BNC)

• Power Supply: DC 5V / 12V

• Operating Temperature: –40°C to +75°C

• Material: Metal enclosure with anti-corrosion coating

• LED Indicators: Power, Video, and Optical link status

• Mounting Options: Desktop or DIN-rail installation

• Dimensions: Compact, space-saving design

• Applications: CCTV systems, city surveillance, airport monitoring, factory security, and traffic control centers

Technical Specifications:
