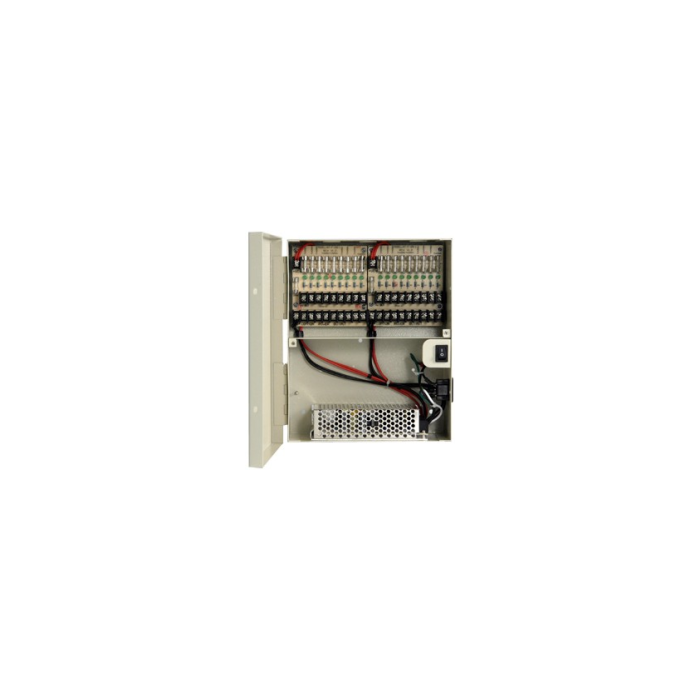

POWER SUPPLY WITH BATTERY BACKUP (3AMP)
Input: AC 190-240V
Output voltage: DC 12V
Output Current: 3amp
Output Channel: 4 channel
Over-current Protection: 3.6A
Ripple & Noise less than 100mV
Efficiency higher than 85%
Charge Voltage: 13.5V
Charge Current (Max.): 1Amp
Battery Under-voltage Protection: 10V
Weight: 1.2kg
Dimensions: 203*163*74mm
EXW PRICE:22-32USD
payment terms:TT/WEST UNION
delivery time:15-20days after full payment
Individual power supply can be used for a single camera, we provide central power supply for multiple cameras.
You can have from 4 to 16 power outputs for cameras. Installation with central power supply looks nicer.
3Amp 4 channel CCTV Uninterruptible Power Supply
Use of efficient, environmental protection switching power supply circuit frame
Optimization of the shape and structure to facilitate the construction systems
Small ripple & noise -- video output signal more stable, clearly images
Splitter output -- by-pass failure to protect other equipment to work
Power protection -- Output over-voltage protection, over-current protection, short circuit protection.
