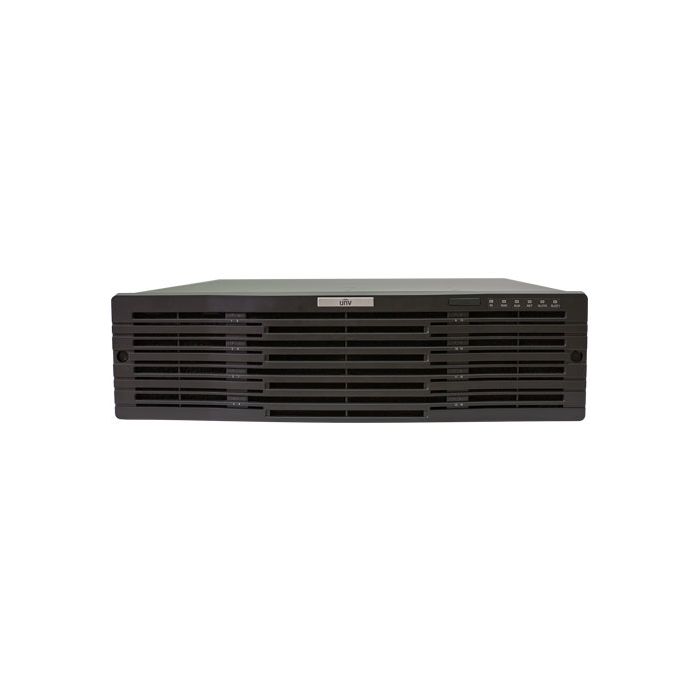

UNIVIEW NVR-516-64 64CH 4K RAID NVR
Features and Key points :
• Model: NVR-516-64 64CH
• Ultra 265/H.265/H.264 video compression
• Support up to 4K Camera
• 64- Channel NVR Input
• All Channel @ 1080P Recording
• 2-ch HDMI, HDMI2 at up to 4K(3840×2160) resolution
• Support 16 HDD (Up to 128 TB)
• Support Mobile Client Access
• Installation with expert Technician
• Best price in Bangladesh
• Call for Discount / Price Match policy
Buy UNIVIEW NVR-516-64 64CH 4K RAID NVR with best Price in Bangladesh
Support Ultra 265/H.265/H.264 video formats.64/128-channel input. Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T. Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution. HDMI1, HDMI2 and VGA independent outputs provided. Up to 12 Megapixels resolution recording. Redundant power supply optional. 2 decoding cards optional, up to 12-ch HDMI. Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable. 16 SATA HDDs, up to 10TB for each HDD. Support 2 miniSAS Interfaces. Support 12V power output. ANR technology to enhance the storage reliability when the network is disconnected. Support cloud upgrade.
Key Features of UNIVIEW NVR-516-64
■ 64-channel input
■ 384 Mbps
■ ONVIF conformance
■ 2-ch HDMI, HDMI2 at up to 4K(3840×2160) resolution
■ 2 Decoding slots with 12 HDMI (Optional)
■ 16 SATA HDD up to 128TB
■ Support various VCA detection alarm and VCA search
■ RAID1, RAID5 Supported
■ Support for P2P, UPnP, NTP, DHCP, PPPoE
■ Support for mobile client access
UNIVIEW NVR-516-64 of picifications:-
|
IP Video Input |
64 CH |
|
Two-way Audio Input |
1-ch, BNC |
|
Incoming Bandwidth |
384Mbps |
|
Outgoing Bandwidth |
384Mbps |
|
Remote Users |
128 |
|
Protocols |
P2P, UPnP, NTP, DHCP, PPPoE |
|
HDMI/VGA Output |
VGA: |
|
Recording Resolution |
12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/D1/ 2CIF/ CIF |
|
Synchronous Playback |
16-ch |
|
Corridor Mode Screen |
3/4/5/7/9/10/12/16/32 |
|
Decoding format |
Ultra 265, H.265, H.264 |
|
Live view/ Playback |
12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF |
|
Capability |
4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1 |
|
SATA |
16 SATA |
|
Capacity |
up to 10TB for each HDD |
|
eSATA |
1 eSATA interface |
|
miniSAS |
2 miniSAS ports |
|
Array Type |
RAID 0/1/5/6/10/50/60 |
|
Network Interface |
4 RJ-45 10M/100M/1000M adaptive Ethernet Interface 2 1000M SFP Ethernet Interface |
|
Serial Interface |
1 x RS232, 1 x RS485 |
|
USB Interface |
Rear panel: 4 x USB3.0 |
|
Alarm In |
24-ch |
|
Alarm Out |
8-ch |
|
Decoding Card (Optional) |
2 slots (4-ch HDMI or 6-ch HDMI outputs per card) |
|
Power Output |
12V |
|
Power Supply |
100 ~ 240 VAC Power Consumption: ≤ 20 W( without HDD ) |
|
Working Environment |
-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
|
Dimensions(W×D×H) |
482mm ×477mm × 131mm (18.8"× 19.0" ×5.1") |
|
Weight ( without HDD ) |
≤ 10 Kg ( 22.05 lb ) |
NVR Connection Diagram
A network video recorder (NVR) is a specialized computer system that includes a software program that records video in a digital format to a disk drive, USB flash drive, SD memory card or other mass storage device. ... An NVR is typically deployed in an IP video surveillance system.
What is our after-sale service System?
We offer 100% guarantee on our product after sales service. We provide one year service warranty free and we provide life time service just for service fee.
What is the price of UNIVIEW NVR-516-64 64CH 4K RAID NVR
in Bangladesh?
The latest price of UNIVIEW NVR-516-64 64CH 4K RAID NVR in Bangladesh is 160,000৳. You can buy the UNIVIEW NVR-516-64 64CH 4K RAID NVR at best price from our website or visit any of our showrooms.
