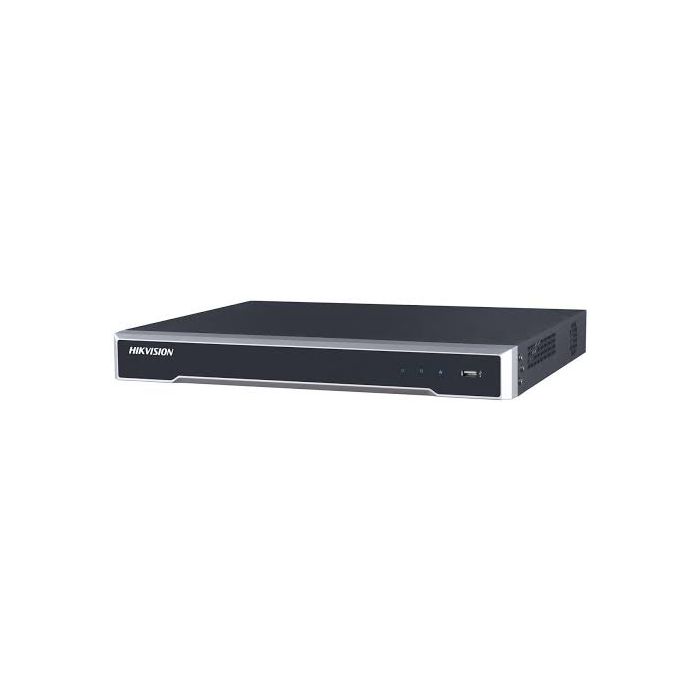

Hikvision DS-7616NI-Q2 16-Channel 4K NVR Network Video Recorder

Be the first to review this product

$0.00

In stock

SKU

GCT7616NIQ2

Hikvision DS-7616NI-Q2 16-CH 4K NVR

Model: DS-7616NI-Q2
Up to 16-ch IP Camera Inputs
H.265+/H.265/H.264+/H.264 Video Formats
Up to 1-ch @ 8MP or 5-ch @ 1080P Decoding Capacity
Up to 160 Mbps Incoming Bandwidth
Call for Discount / Price Match policy
Installation with expert Technician
On request CCTV maintenance

Details

Hikvision DS-7616NI-Q2 16-Ch 4K Network Video Recorder

A powerful 16-channel 4K network video recorder with H.265+ compression, dual HDD support, and full HDMI/VGA output for professional surveillance setups.

Features

Supports up to 16 IP camera inputs for flexible surveillance coverage.
Ultra-efficient H.265+/H.265/H.264+/H.264 video formats, reducing storage by up to ~75%.
Massive 160 Mbps incoming bandwidth, allowing high resolution streams with minimal bottleneck.
4K resolution HDMI output (up to 4096×2160@30Hz) plus simultaneous VGA output.
Dual SATA HDD interfaces (up to 8 TB each) for large-capacity local recording.
Supports smart search and playback, plus optional VCA (video content analytics) functions such as motion, line crossing and intrusion detection.
Professional 1U chassis form-factor, designed for 24/7 operation in business, office or industrial environments.

Technical Specifications

Spec	Detail
Model	DS-7616NI-Q2
Channels	Up to 16 IP camera inputs
Video Compression	H.265+, H.265, H.264+, H.264
Incoming Bandwidth	Up to 160 Mbps
Outgoing Bandwidth	Up to 80 Mbps
HDMI Output	1-ch, 4K (4096×2160)/30Hz & 4K (3840×2160)/30Hz
VGA Output	1-ch, up to 1920×1080/60Hz
Decoding Capability	1-ch @ 8MP (30 fps) / 3-ch @ 4MP (30 fps) / 6-ch @ 1080p (30 fps)
HDD Interfaces	2 × SATA (up to 8 TB per disk)
Network Interface	1 × RJ-45 10/100/1000Mbps
USB Ports	2 × USB2.0
Power Supply	12 VDC / ~3.33 A typical (model variant dependent)
Power Consumption	≤ 15 W (without HDD)
Dimension (W×D×H)	385 × 315 × 52 mm
Operating Temp/Humidity	-10 °C ~ +55 °C, 10%–90% RH
