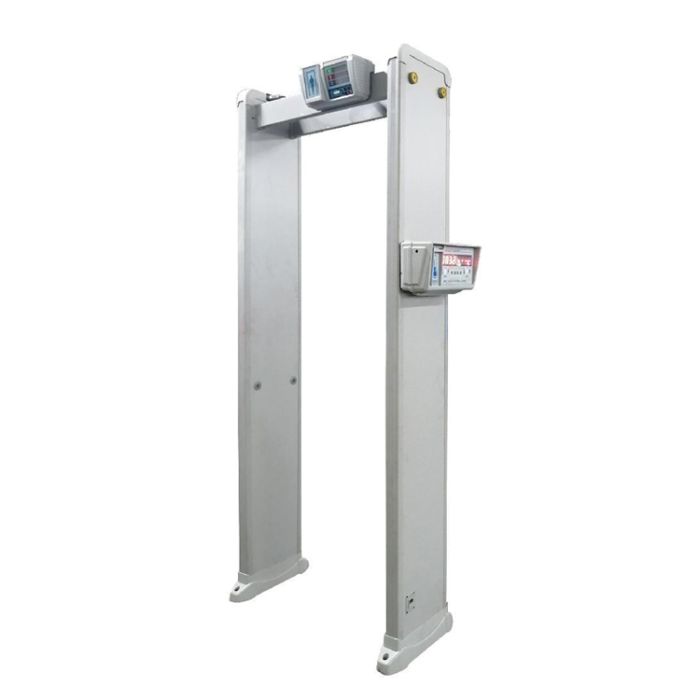

Walk-through Metal Detector with Built-in Temperature Measurement
Walk-through Metal Detector with Built-in Temperature Measurement
Alarm when temperature is over 37.3℃
18 detection zones
256 sensitivity levels
5.7’’ LCD display
Counter for alarm and people
0.5 m to 1.5 m Temperature measurement distance
±0.5 °C (±0.9 °F) Temperature accuracy
1.45 m to 1.85 m Temperature measurement height
Thermal-imager sensor vanadium oxide uncooled
4 MP 1/2.7″ CMOS Visible-light camera
Walk-through Metal Detector with Built-in Temperature Measurement
A high-security walk through metal detector that simultaneously performs contactless skin-surface temperature screening in less than one second per person, ideal for hospitals, offices, schools, airports and more.
Key Features
-
Contactless human skin-surface temperature measurement while performing metal-object detection.
-
18 independent detection zones for precise metal location indication.
-
Built-in side LED indicators and audible alarm for prohibited-object detection and abnormal temperature alerts.
-
A 7-inch LCD touch screen shows real-time temperature readings, number of persons scanned, number of alarms triggered.
-
Rapid screening one person in ≈1 second at 0.5–1.5 m distance.
-
Modular design for easy installation and transport.
-
Web-interface configuration and central management capability.
Technical Specification
|
Specification |
Details |
|
Product Name |
Walkthrough Metal Detector with Built-in Temperature Measurement |
|
Temperature Measurement Method |
Non-contact skin-surface temperature detection |
|
Temperature Measurement Distance |
0.5 m – 1.5 m |
|
Temperature Accuracy |
±0.5°C (without blackbody), ±0.3°C (with blackbody) |
|
Temperature Measurement Height |
1.45 m – 1.85 m |
|
Thermal Sensor Type |
Vanadium oxide (VOx) uncooled |
|
Thermal Resolution |
160 × 120 pixels |
|
Visible Camera |
4 MP, 1/2.7" CMOS |
|
Visible Camera Resolution |
2688 × 1520 @ 25fps |
|
Infrared Illumination Range |
Up to 15 m |
|
Metal Detection Zones |
18 independent detection zones |
|
Alarm Modes |
Visual LED indicators + Audible alarm |
|
Display |
7-inch LCD touch display (shows temp, alarms, people count) |
|
Screening Speed |
Approx. 1 second per person |
|
Detection Capability |
Detects knives, guns, aluminum/copper/zinc objects >0.15 kg |
|
Power Supply |
12 V DC, 3.15 A (Approx. 36 W) |
|
Operating Temperature (Device) |
–10°C to 55°C |
|
Operating Humidity |
≤ 99% RH (non-condensing) |
|
Installation |
Modular design, easy assembly & transportation |
|
Communication/Control |
Web interface, remote management supported |
|
Applications |
Airports, offices, factories, hospitals, schools, shopping malls |
| Call for Price | No |
|---|---|
| Brand | Varito |
