Automatic Bollard Barrier
Product Short Specification:
Voltage 230 V +/- 10% 50-60Hz.
Power & Speed 0.13 kW, (0.18HP); 2,800RPM.
Duty Cycle 500 Cycles Per Day.
Working Temperature -20ºC to +60ºC.
Mechanics Reversible; rolled worm screw.
Operation Time Approx. 9 Seconds including slowing down.
Emergency Release Lowers automatically with power cut off.
Maximum Thrust Force 1000 N max. during rod raising phase.
Size (Buried Casing) 360mm X 360mm X 1,180mm.
Size (Bollard) 193.4mm Diameter X 700mm High.
Finish Cataphoresis + Coated Grey RAL 7022.
Bollard Material G20 Cast Iron Casing.
Lights 6 No. Radial L.E.D.s.
Protection Level IP67.

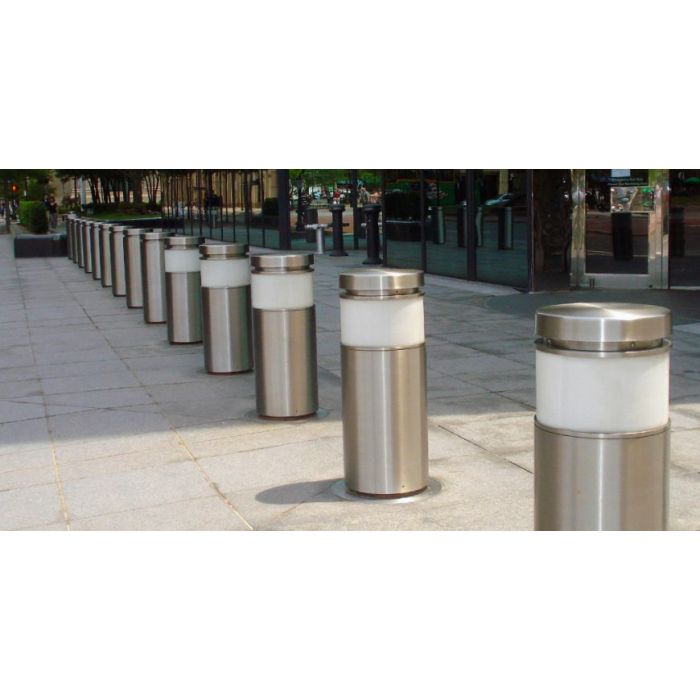

Automatic Bollard Barrier in Bangladesh

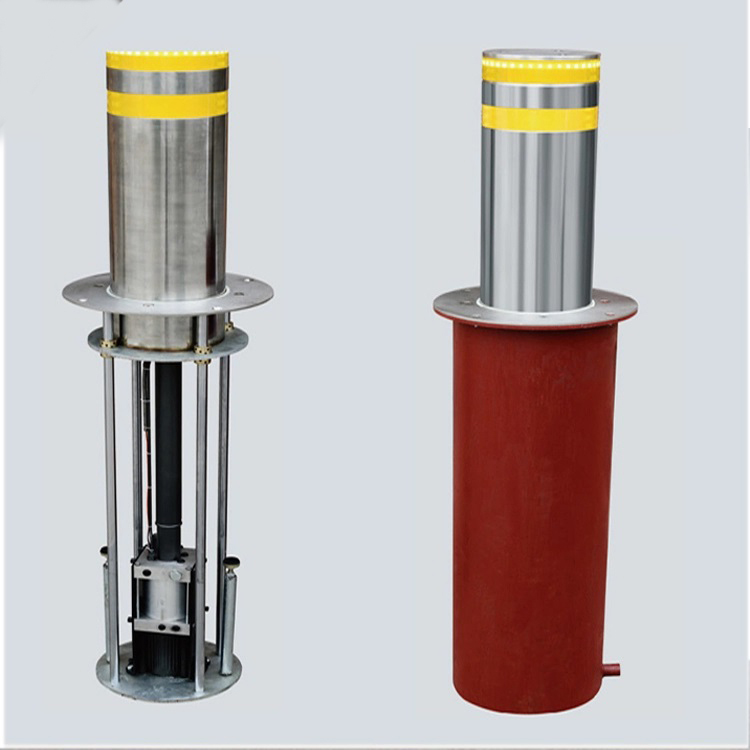

Product Description: High speed waterproof rising bollard for intelligent car parking management in Bangladesh. For outdoor locations where change of accessibility is needed, we offer a range of removable steel bollards. Our Bollard Barriers offer a reliable and efficient method to ensure only authorized users are allowed access to each area of a building. Our lockable, and provide safety & protection to critical infrastructures while still maintaining pedestrian freedom. Varito DB-W6 is an attractive bollard barrier that is easily capable of handling high volume and abusive conditions. The compact unit makes it simple to construct a multiple lane set-up while the variety in colors allows you to match this turnstile perfectly to your lobby or branding. There are two unique, steel and stainless-steel removable bollard designs.
|
Model |
Varito DB-W6 |
|
Operate mode |
hydromantic |
|
Material |
Stainless Steel |
|
Column diameter |
220mm |
|
Travel height |
600mm-700mm |
|
Type |
hydraulic and electronic |
|
Waterproof degree |
IP67 |
|
Running speed |
3-6S |
|
Power input |
AC220V/380V |
|
Application |
School, College, University park, government Office, Bank |
Product Feature:
- Easy to use
- Low-cost installation and maintenance
- Low failure rate
- Security lock system
- Integrated handle bar
- Attractive aesthetics
- Statics table
With the Varito DB-W6 Single Bollard System package, you get -
1 x Automatic Bollard
1 x Single Bollard Control System
1 x Radio Receiver Unit
2 x Dual Button Key Fobs
With the Varito Dual Bollard System
2 x Automatic Bollards
1 x Multi Bollard Control System
1 x Radio Receiver Unit
2 x Dual Button Key Fobs
With the Triple Bollard System
3 x Automatic Bollards
1 x Multi Bollard Control System
1 x Radio Receiver Unit
3 x Dual Button Key Fobs
